Question 20
Optical Illusion: Do you notice anything interesting about the following figure? How does this happen? Recreate this in your notebook.
- An optical illusion occurs when what we perceive visually differs from reality.

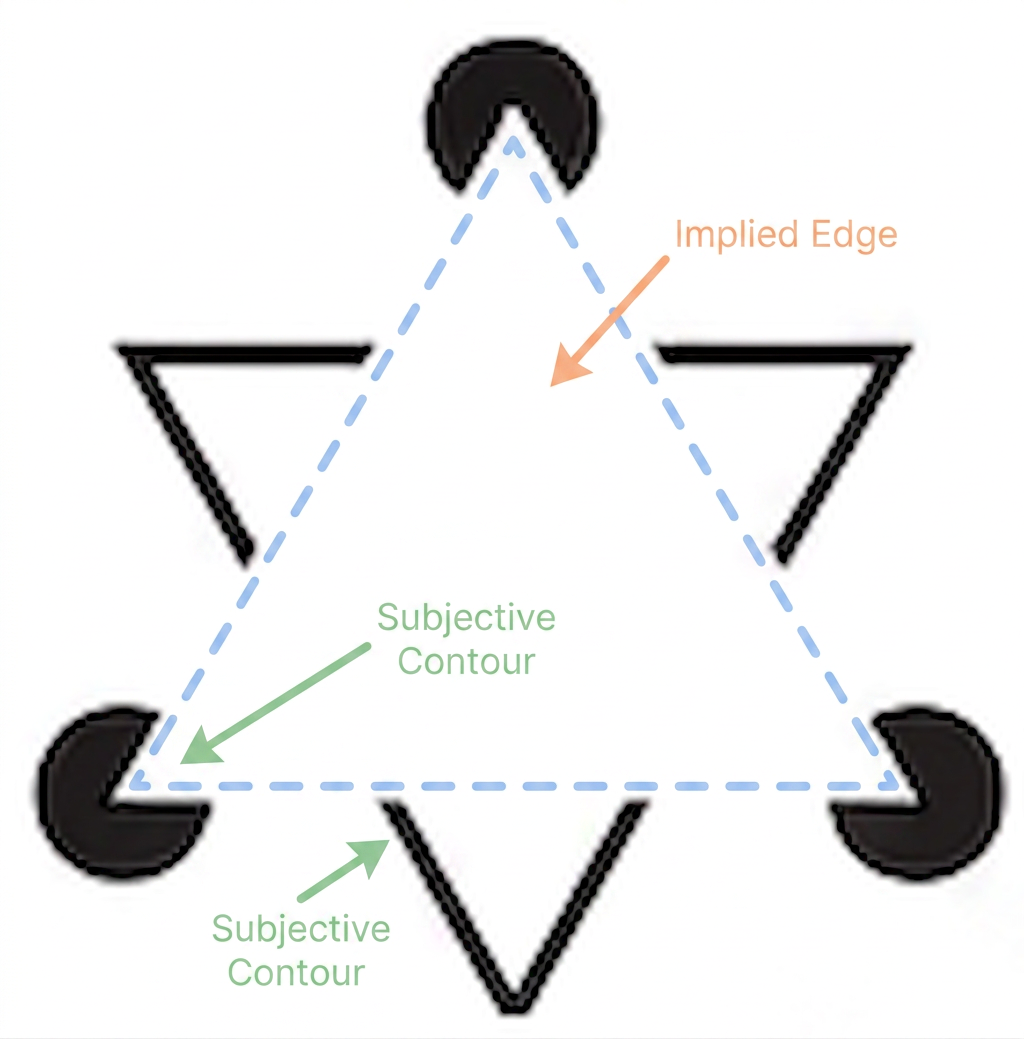

- In this figure (known as the Kanizsa Triangle), incomplete shapes trick our brain into filling in missing boundaries, creating the perception of a bright central triangle even though no triangle is actually drawn.
Step 1 · Identify the Illusion
A prominent white triangle appears in the center, seemingly resting on top of three black circles and an outlined triangle.
Although the edges of this white triangle appear sharp and clear, there are no actual lines drawn to form it.
Step 2 · Explain Why It Happens
The outer shapes are incomplete:
- Three black circles have wedge cutouts ("Pac-Man" shapes).
- Three "V" angles outline corners of a second triangle.
The brain naturally attempts to make sense of incomplete visual stimuli by filling in the gaps (forming illusory contours) to perceive a complete, familiar shape—in this case, an upright white triangle.
Step 3 · Recreate the Figure
To recreate this illusion in a notebook:
- Draw three filled black circles positioned at the vertices of an imaginary triangle.
- Cut a wedge out of each circle facing toward the center (like "Pac-Man" shapes).
- Draw three "V" angles between the circles pointing toward the center.
- Observe how an illusory white triangle immediately appears in the middle.
(i) We perceive a solid white triangle in the center that is not actually drawn. (ii) The brain automatically fills in the missing lines between the incomplete shapes to form a familiar pattern. (iii) Draw three inwardly-facing "Pac-Man" shapes and three "V" angles to recreate the illusion.
- Assuming Lines Exist: Mistaking the perceived white triangle for one with actual drawn boundaries, rather than recognizing it as an illusory contour generated by the brain.
- Incorrect Orientation When Drawing: Drawing the cutouts of the "Pac-Man" shapes facing away from the center, which breaks the illusion.
