Question 13

Construct at least 4 different angles in different orientations without taking any measurement. Make a copy of all these angles.

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • To copy an angle without using a protractor (measurement), we use a compass and straightedge (ruler).
  • The method relies on transferring equal arc radii from both vertices and then transferring the exact arc width (chord length between the arms) to construct an identical angle in any orientation.

Step 1 · Copy the First Angle ∠ABC\angle ABC

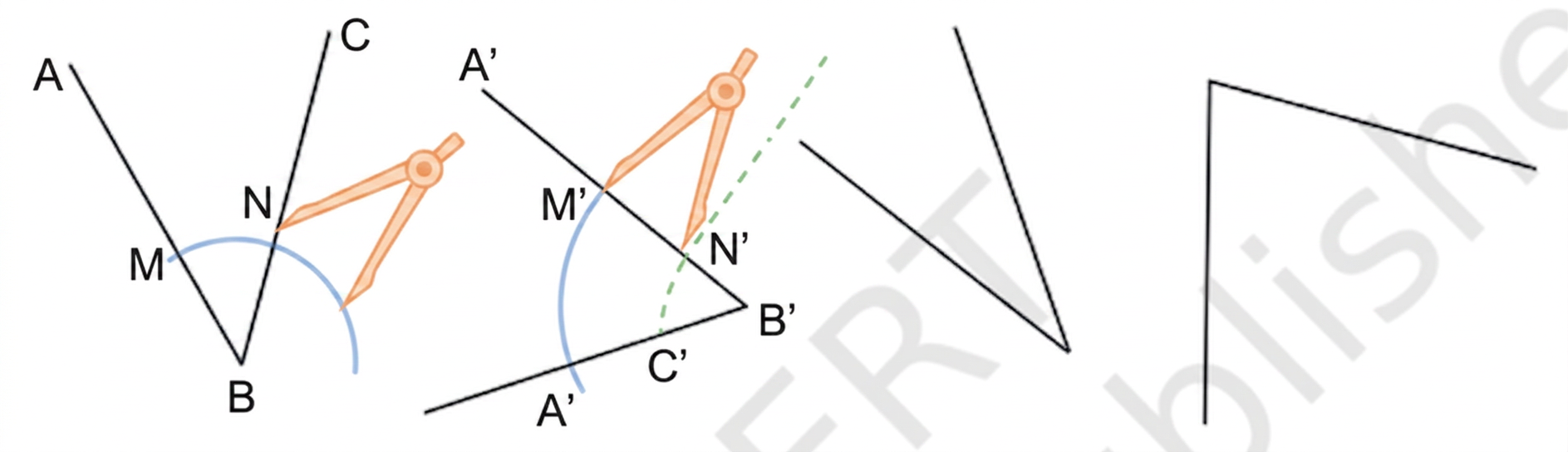

Let the given angle be ∠ABC\angle ABC with vertex BB.Diagram 1

Steps of Construction:

  1. Draw a ray B′A′B'A' to form one arm of the new angle.
  2. With vertex BB as centre and any convenient radius, draw an arc intersecting arm BABA at MM and arm BCBC at NN.
  3. With the same radius and centre B′B', draw an arc intersecting ray B′A′B'A' at M′M'.
  4. Set the compass opening equal to the distance MNMN.
  5. With M′M' as centre and radius MNMN, draw an arc intersecting the previous arc at N′N'.
  6. Draw ray B′C′B'C' passing through N′N'.

Thus, ∠A′B′C′\angle A'B'C' is an exact copy of ∠ABC\angle ABC.

Step 2 · Copy the Second Angle ∠DEF\angle DEF

Let the second given angle in a different orientation be ∠DEF\angle DEF with vertex EE.Diagram 2

Steps of Construction:

  1. Draw a ray E′D′E'D' as one arm of the copied angle.
  2. With centre EE and a convenient radius, draw an arc cutting arm EDED at OO and arm EFEF at PP.
  3. With the same radius and centre E′E', draw an arc cutting ray E′D′E'D' at O′O'.
  4. Adjust compass width to measure distance OPOP.
  5. With centre O′O' and radius OPOP, draw an arc intersecting the first arc at P′P'.
  6. Draw ray E′F′E'F' through P′P'.

Thus, ∠D′E′F′\angle D'E'F' is an exact copy of ∠DEF\angle DEF.

Step 3 · Copy the Third Angle ∠GHI\angle GHI

Let the third given angle in another orientation be ∠GHI\angle GHI with vertex HH.Diagram 3

Steps of Construction:

  1. Draw a ray H′G′H'G' as one arm of the new angle.
  2. With centre HH and a convenient radius, draw an arc cutting arm HGHG at QQ and arm HIHI at RR.
  3. With the same radius and centre H′H', draw an arc cutting ray H′G′H'G' at Q′Q'.
  4. Adjust compass width to measure distance QRQR.
  5. With centre Q′Q' and radius QRQR, draw an arc intersecting the previous arc at R′R'.
  6. Draw ray H′I′H'I' passing through R′R'.

Thus, ∠G′H′I′\angle G'H'I' is an exact copy of ∠GHI\angle GHI.

Step 4 · Copy the Fourth Angle ∠JKL\angle JKL

Let the fourth given angle in a different orientation be ∠JKL\angle JKL with vertex KK.Diagram 4

Steps of Construction:

  1. Draw a ray K′J′K'J' as one arm of the new angle.
  2. With centre KK and a convenient radius, draw an arc cutting arm KJKJ at SS and arm KLKL at TT.
  3. With the same radius and centre K′K', draw an arc cutting ray K′J′K'J' at S′S'.
  4. Set compass opening equal to distance STST.
  5. With centre S′S' and radius STST, draw an arc cutting the previous arc at T′T'.
  6. Draw ray K′L′K'L' through T′T'.

Thus, ∠J′K′L′\angle J'K'L' is an exact copy of ∠JKL\angle JKL.

Answer

Four angles in different orientations are copied:

  • ∠A′B′C′=∠ABC\angle A'B'C' = \angle ABC
  • ∠D′E′F′=∠DEF\angle D'E'F' = \angle DEF
  • ∠G′H′I′=∠GHI\angle G'H'I' = \angle GHI
  • ∠J′K′L′=∠JKL\angle J'K'L' = \angle JKL
Common Mistakes
  • Changing the Compass Radius: Altering the compass width between drawing the initial arc on the original angle and the new ray will distort the angle size.
  • Incorrect Arc Width Measurement: Measuring the distance between arms from points other than the exact intersection points of the original arc.
