Find the area of XDC.

Area of Polygons | IT

Question 7

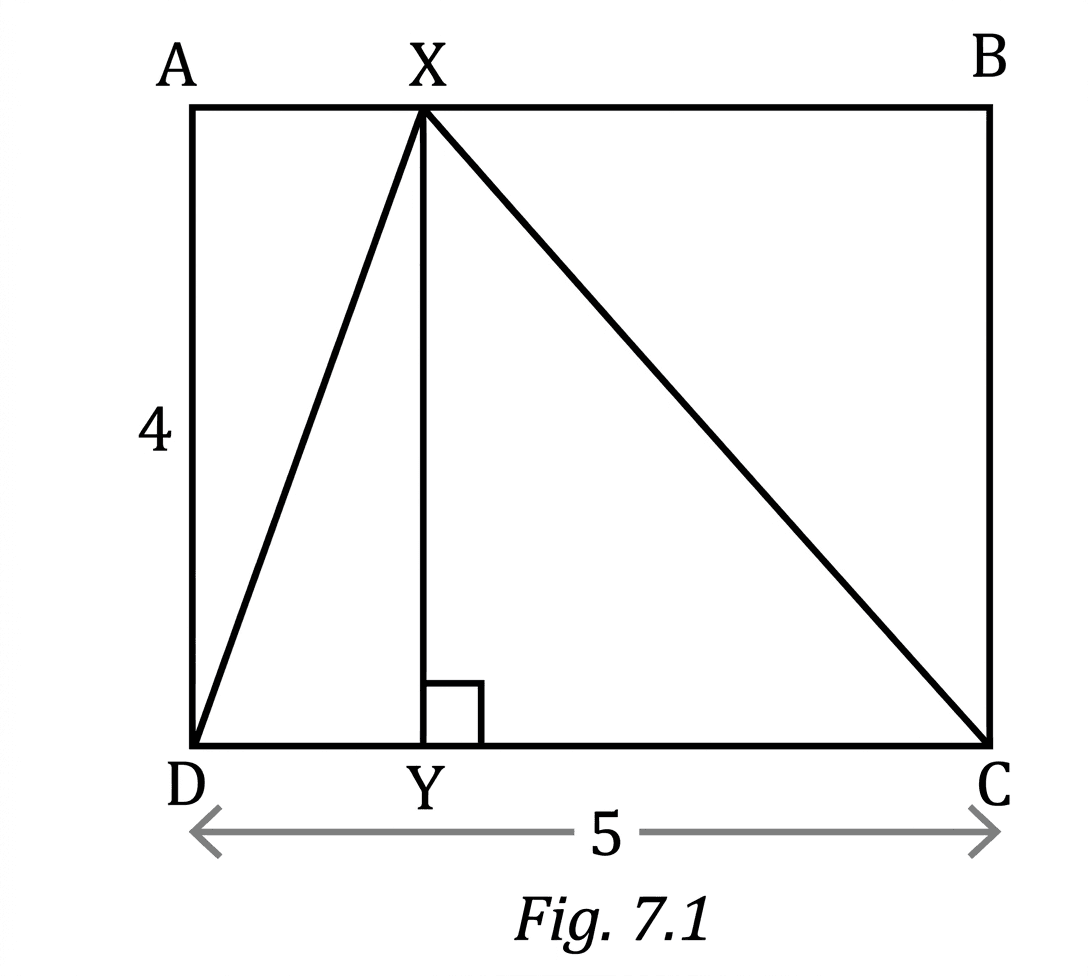

Find the area of $\Delta$ XDC.

Solution

We can find the area of a triangle by multiplying half of its base by its perpendicular height.

Step 1 — Find the base of the triangle

Let us look at the triangle $\Delta$ XDC. The base of this triangle is the side DC. From the diagram, the length of DC is given.

$DC = 5 \text{ units}$

$\boxed{\text{Base} = 5 \text{ units}}$

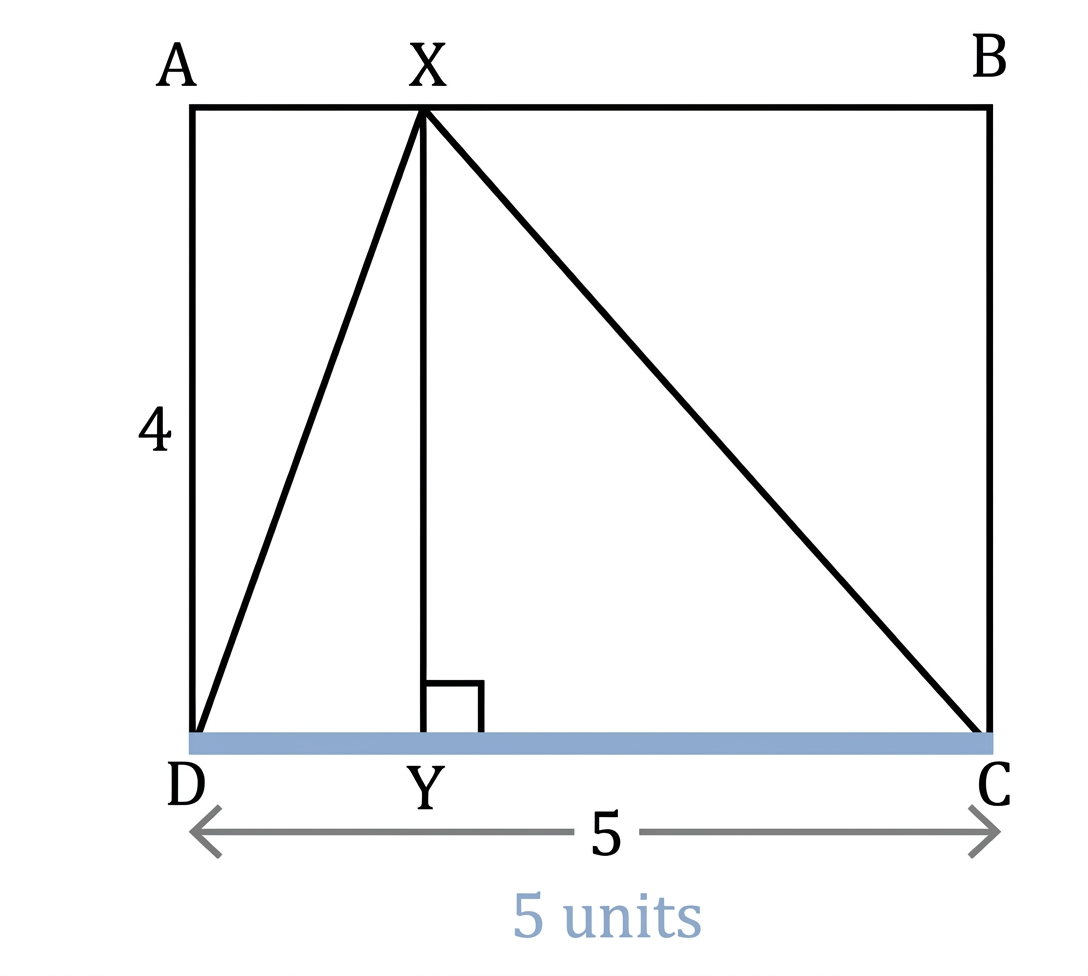

Diagram 1

Step 2 — Find the height of the triangle

The figure ABCD is a rectangle. In a rectangle, opposite sides are parallel and equal in length. The side AD is parallel to the side BC. The line segment XY is drawn from vertex X to the base DC, and it is perpendicular to DC. This means XY is the perpendicular height of the triangle $\Delta$ XDC. Since ABCD is a rectangle, the perpendicular distance between the parallel sides AB and DC is constant. This distance is equal to the length of AD. From the diagram, the length of AD is given.

$AD = 4 \text{ units}$

So, the height XY is equal to AD.

$XY = 4 \text{ units}$

$\boxed{\text{Height} = 4 \text{ units}}$

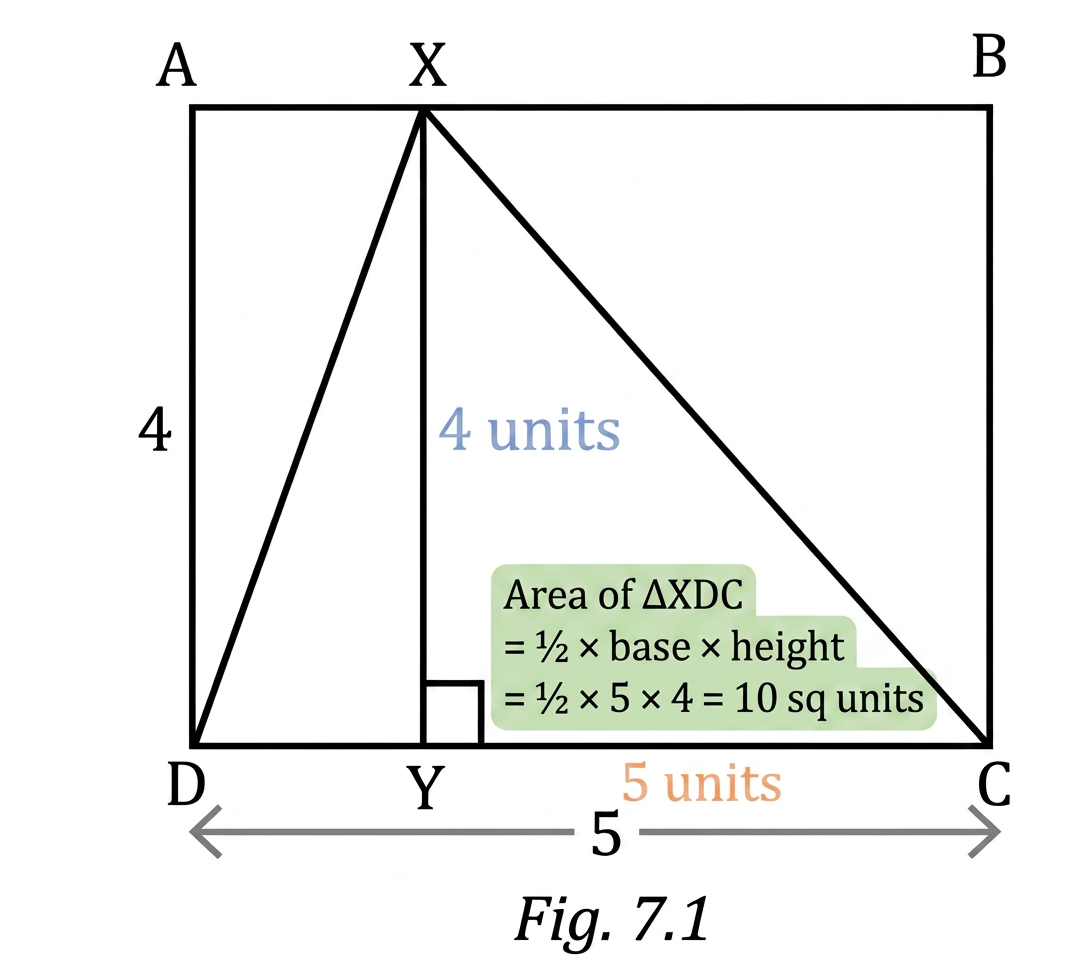

Diagram 2

Step 3 — Calculate the area of $\Delta$ XDC

The formula for the area of a triangle is $\frac{1}{2} \times \text{base} \times \text{height}$ . We found the base DC = 5 units. We found the height XY = 4 units.

$\text{Area of } \Delta\text{XDC} = \frac{1}{2} \times \text{DC} \times \text{XY}$

$= \frac{1}{2} \times 5 \times 4$

$= \frac{1}{2} \times 20$

$\boxed{10 \text{ square units}}$

Answer

The area of $\Delta$ XDC is 10 square units.
