Question 22

Find the areas of the following trapeziums by breaking them into figures whose areas can be computed.

Solution

Understand the Question

A trapezium can be split into simpler geometric shapes such as rectangles and right-angled triangles.
The total area is the sum of the areas of these individual components:
- $\text{Area of Rectangle} = \text{length} \times \text{breadth}$
- $\text{Area of Triangle} = \dfrac{1}{2} \times \text{base} \times \text{height}$

(i) Find the area of trapezium $\text{ABCD}$ .

Step 1 · Calculate Area of Trapezium ABCD

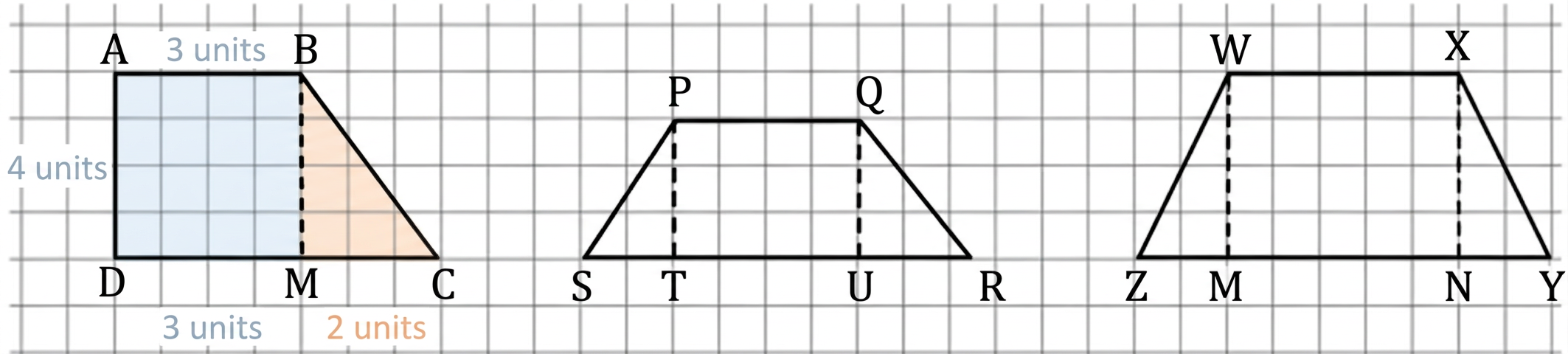

Trapezium $\text{ABCD}$ is divided into rectangle $\text{ABMD}$ and right-angled triangle $\text{BMC}$ . Diagram 1

Given dimensions: $\text{AD} = 4\text{ units}$ , $\text{AB} = \text{DM} = 3\text{ units}$ , $\text{MC} = \text{DC} - \text{DM} = 5 - 3 = 2\text{ units}$ , and $\text{BM} = \text{AD} = 4\text{ units}$ .

\begin{aligned} \text{Area of rectangle ABMD} &= \text{DM} \times \text{AD} \\ &= 3 \times 4 \\ &= 12 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of triangle BMC} &= \dfrac{1}{2} \times \text{MC} \times \text{BM} \\[0.6em] &= \dfrac{1}{2} \times 2 \times 4 \\[0.6em] &= 4 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of trapezium ABCD} &= \text{Area of ABMD} + \text{Area of BMC} \\ &= 12 + 4 \\ &= 16 \text{ square units} \end{aligned}

Answer

(i) $16\text{ square units}$

(ii) Find the area of trapezium $\text{PQRS}$ .

Step 1 · Calculate Area of Trapezium PQRS

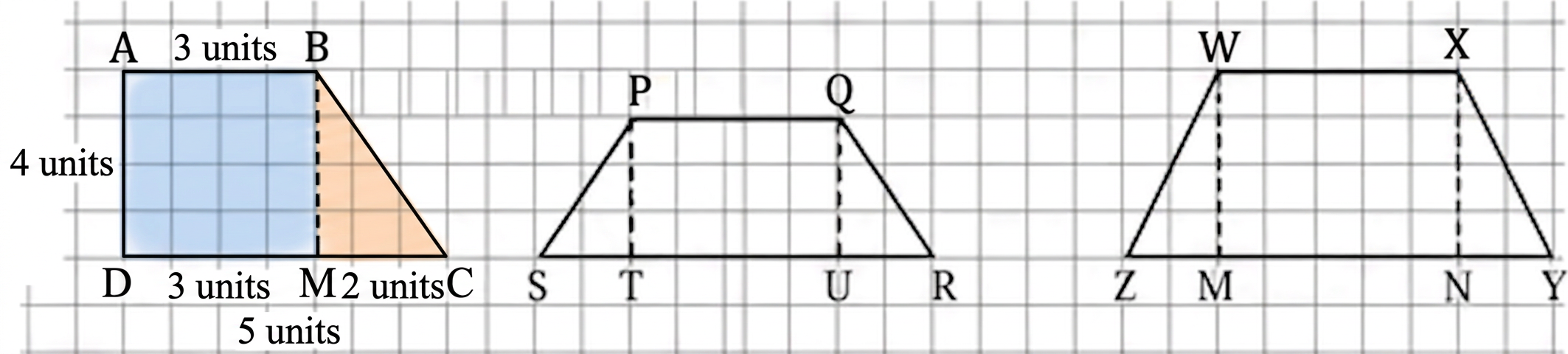

Trapezium $\text{PQRS}$ is divided into two right-angled triangles $\text{PST}$ , $\text{QUR}$ , and a central rectangle $\text{PTUQ}$ . Diagram 2

Given dimensions: $\text{PT} = \text{QU} = 3\text{ units}$ , $\text{PQ} = \text{TU} = 5\text{ units}$ , $\text{ST} = 2\text{ units}$ , and $\text{UR} = 2\text{ units}$ .

\begin{aligned} \text{Area of triangle PST} &= \dfrac{1}{2} \times \text{ST} \times \text{PT} \\[0.6em] &= \dfrac{1}{2} \times 2 \times 3 \\[0.6em] &= 3 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of rectangle PTUQ} &= \text{TU} \times \text{PT} \\ &= 5 \times 3 \\ &= 15 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of triangle QUR} &= \dfrac{1}{2} \times \text{UR} \times \text{QU} \\[0.6em] &= \dfrac{1}{2} \times 2 \times 3 \\[0.6em] &= 3 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of trapezium PQRS} &= \text{Area of PST} + \text{Area of PTUQ} + \text{Area of QUR} \\ &= 3 + 15 + 3 \\ &= 21 \text{ square units} \end{aligned}

Answer

(ii) $21\text{ square units}$

(iii) Find the area of trapezium $\text{WXYZ}$ .

Step 1 · Calculate Area of Trapezium WXYZ

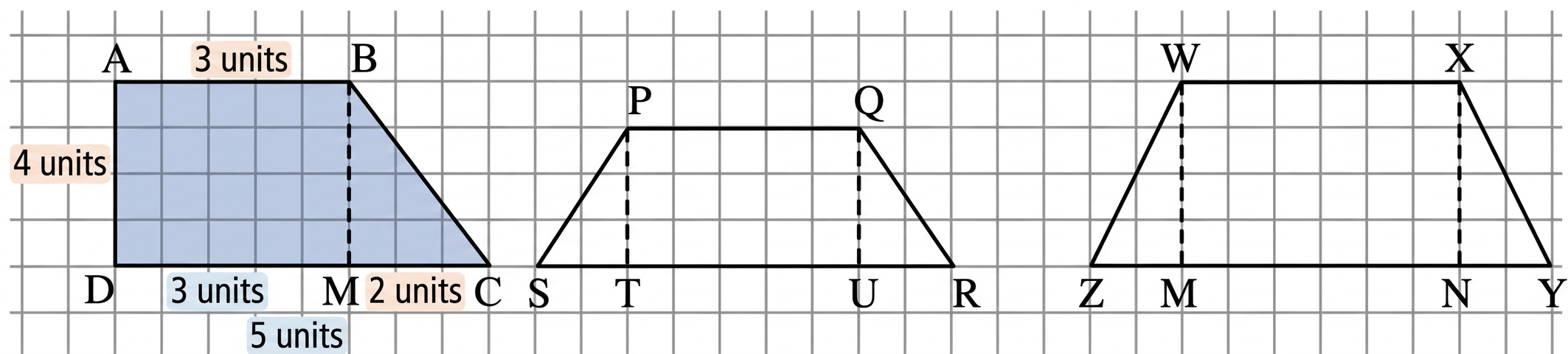

Trapezium $\text{WXYZ}$ is divided into two right-angled triangles $\text{WMZ}$ , $\text{XNY}$ , and a rectangle $\text{WXNM}$ . Diagram 3

Given dimensions: $\text{WM} = \text{XN} = 4\text{ units}$ , $\text{WX} = \text{MN} = 6\text{ units}$ , $\text{ZM} = 2\text{ units}$ , and $\text{NY} = 3\text{ units}$ .

\begin{aligned} \text{Area of triangle WMZ} &= \dfrac{1}{2} \times \text{ZM} \times \text{WM} \\[0.6em] &= \dfrac{1}{2} \times 2 \times 4 \\[0.6em] &= 4 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of rectangle WXNM} &= \text{MN} \times \text{WM} \\ &= 6 \times 4 \\ &= 24 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of triangle XNY} &= \dfrac{1}{2} \times \text{NY} \times \text{XN} \\[0.6em] &= \dfrac{1}{2} \times 3 \times 4 \\[0.6em] &= 6 \text{ square units} \end{aligned}

\begin{aligned} \text{Area of trapezium WXYZ} &= \text{Area of WMZ} + \text{Area of WXNM} + \text{Area of XNY} \\ &= 4 + 24 + 6 \\ &= 34 \text{ square units} \end{aligned}

Answer

(iii) $34\text{ square units}$

Common Mistakes

Forgetting the $\dfrac{1}{2}$ Factor: Missing the factor of $\dfrac{1}{2}$ when computing the area of the triangular components ( $\text{base} \times \text{height}$ instead of $\dfrac{1}{2} \times \text{base} \times \text{height}$ ).
Base Length Confusion: Using the entire bottom base of the trapezium instead of individual segment lengths (e.g. $\text{MC}$ , $\text{ST}$ , $\text{UR}$ ) for the triangle bases.
Formula Alternative Verification: You can cross-check using the standard trapezium formula $\text{Area} = \dfrac{1}{2}(a+b)h$ to ensure all component areas sum up correctly.
