Question 18

Try working this out!

Solution

Understand the Question

A quadrilateral with perpendicular diagonals intersecting at $O$ is divided into four right-angled triangles.
Given that diagonal $AC$ bisects diagonal $BD$ ( $BO = OD$ ), each pair of adjacent triangles sharing a segment of $AC$ can be proven congruent.
We use the SAS (Side-Angle-Side) congruence criterion: two pairs of equal sides and the included right angle ( $90^\circ$ ).

Step 1 · Identify Given Properties from the Figure

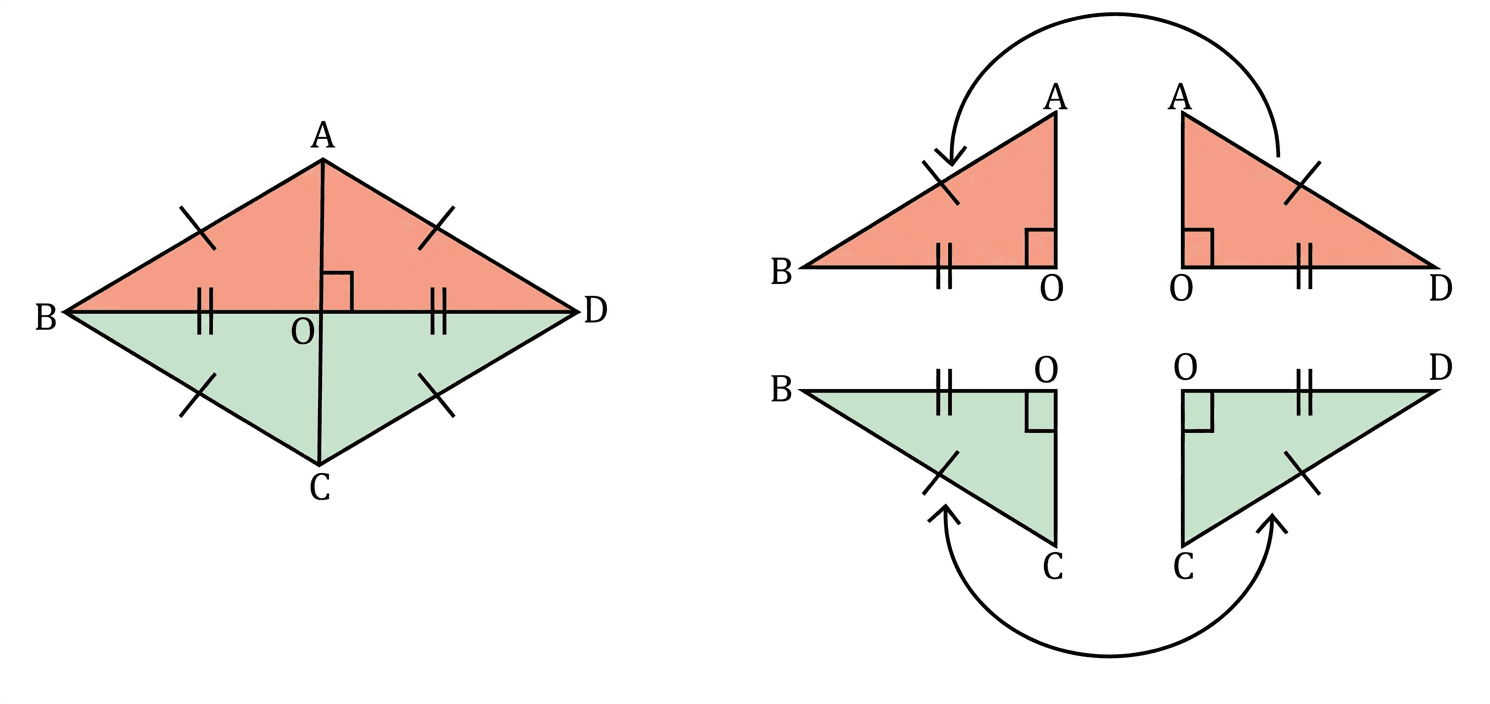

In quadrilateral $ABCD$ , diagonals $AC$ and $BD$ intersect at point $O$ . Diagram 1

From the markings on the figure:

Diagonals are perpendicular: $\angle AOB = \angle AOD = \angle BOC = \angle DOC = 90^\circ$
Bisected diagonal: $BO = OD$
Equal side lengths: $AB = AD$ and $BC = CD$

Step 2 · Prove Congruence of Triangles

For $\triangle AOB$ and $\triangle AOD$ :

\begin{aligned} AO &= AO \quad (\text{Common side}) \\ \angle AOB &= \angle AOD = 90^\circ \\ BO &= OD \quad (\text{Given}) \end{aligned}

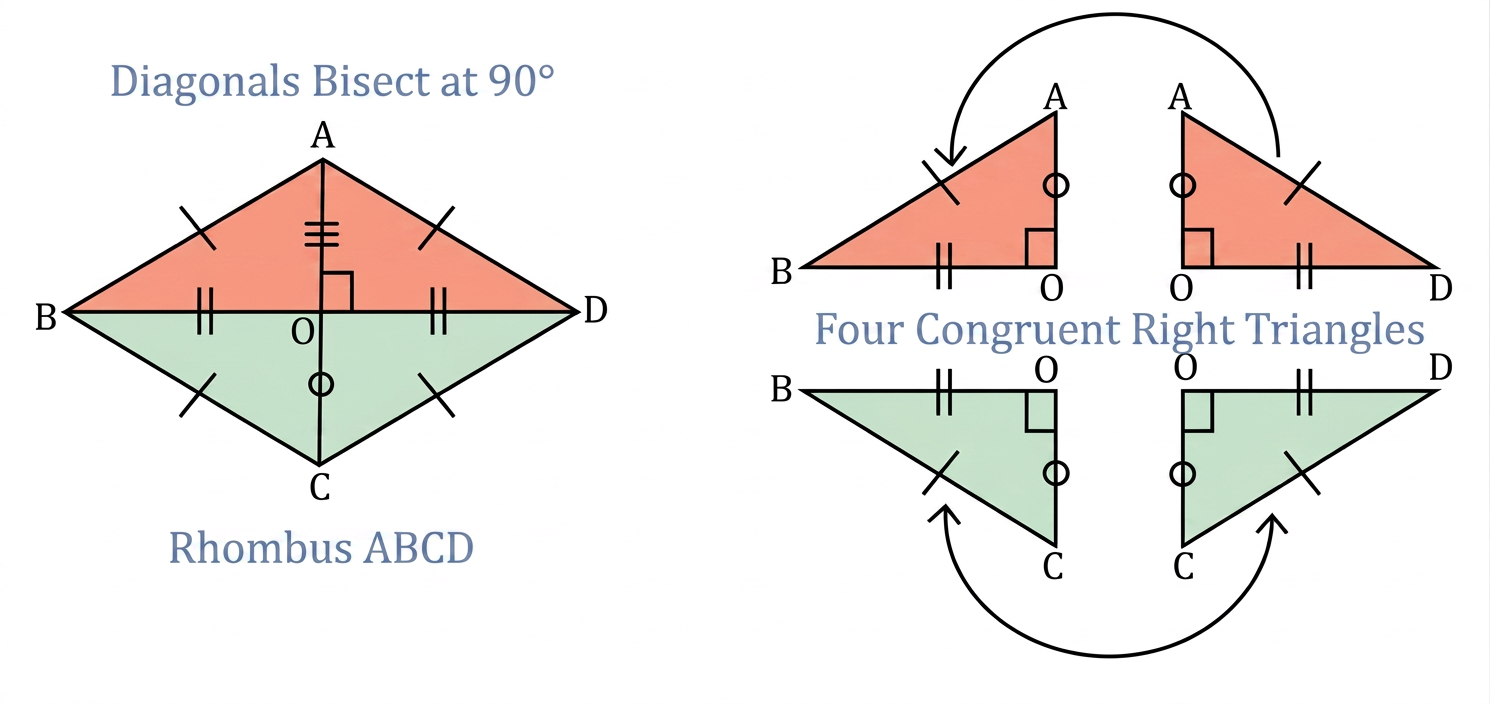

By SAS congruence criterion: $\triangle AOB \cong \triangle AOD$ Diagram 2

For $\triangle BOC$ and $\triangle DOC$ :

\begin{aligned} CO &= CO \quad (\text{Common side}) \\ \angle BOC &= \angle DOC = 90^\circ \\ BO &= OD \quad (\text{Given}) \end{aligned}

By SAS congruence criterion: $\triangle BOC \cong \triangle DOC$

Answer

$\text{(i) } \triangle AOB \cong \triangle AOD, \quad \text{(ii) } \triangle BOC \cong \triangle DOC$

Common Mistakes

SAS vs. RHS Criterion: Mistaking the proof for RHS simply because right angles are involved; since the included angle lies between the two known sides ( $AO/CO$ and $BO/OD$ ), the correct criterion is SAS.
Vertex Order: Writing incorrect corresponding vertices in the congruence statement, such as $\triangle AOB \cong \triangle ADO$ instead of $\triangle AOB \cong \triangle AOD$ .
