Question 1

Try to think of different creative ways to divide a square into 4 parts of equal area.

Solution

Understand the Question

Let a square have side length $s$ , so its total area is $A = s^2$ .
To divide the square into $4$ parts of equal area, each part must have an area of $\dfrac{s^2}{4}$ .
We can achieve this through different geometric divisions such as:
- Connecting the midpoints of opposite sides to form $4$ smaller squares.
- Drawing both diagonals to form $4$ congruent triangles.
- Connecting the center to the midpoints of each side to form $4$ congruent quadrilaterals.

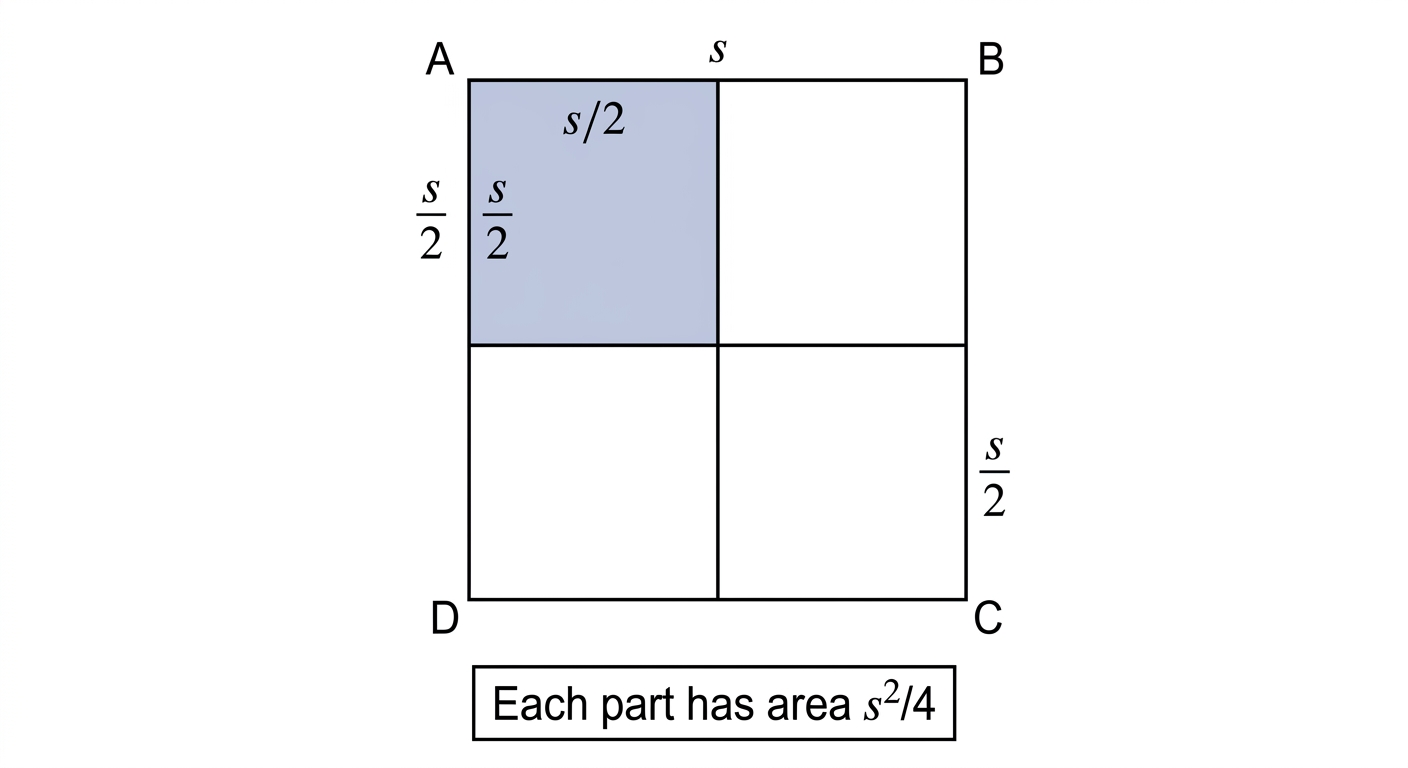

Step 1 · Method 1: Four Smaller Squares

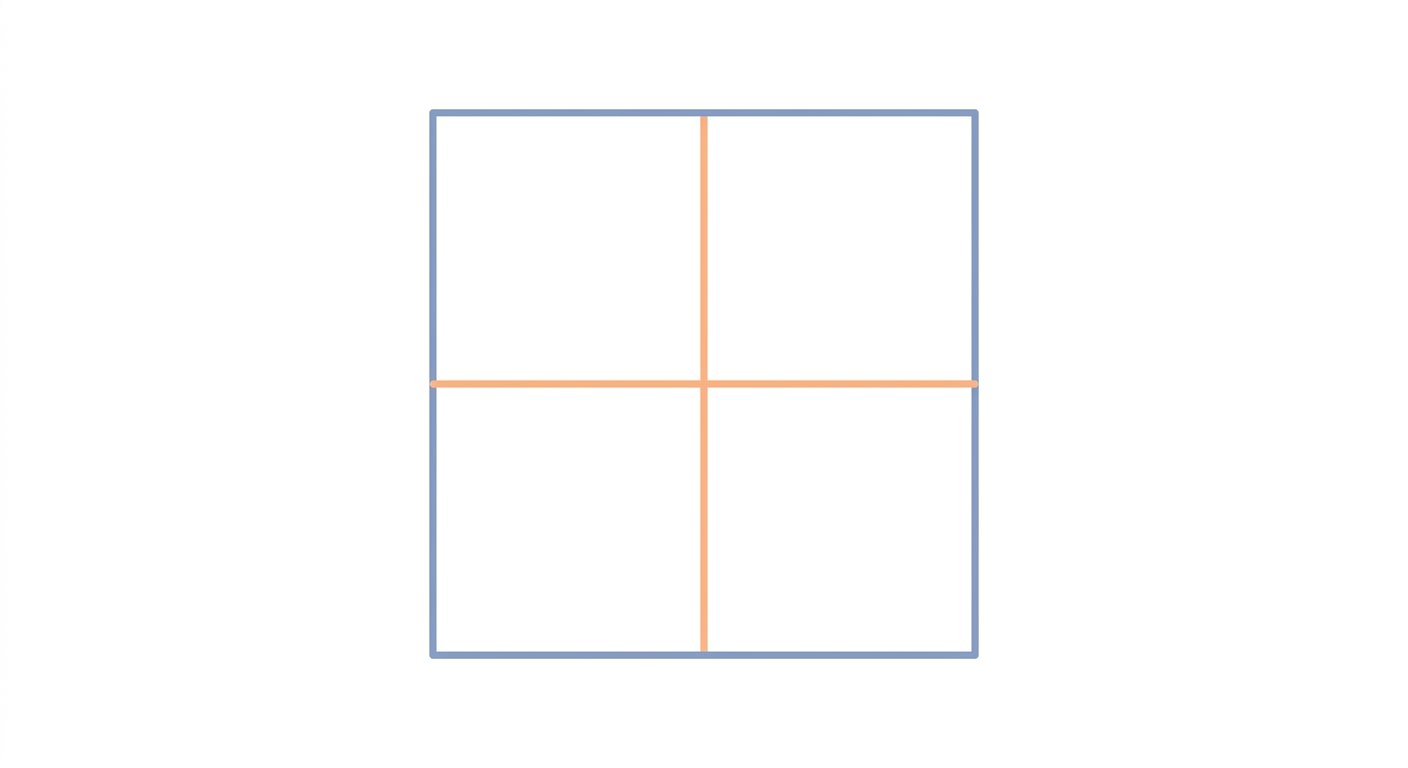

Connect the midpoints of opposite sides using horizontal and vertical lines. Diagram 1

Let the side of the original square be $s$ , with total area $A = s \times s = s^2$ .

Each smaller square has a side length of $\dfrac{s}{2}$ .

Area of one small square $A_1$ :

\begin{aligned} A_1 &= \left(\dfrac{s}{2}\right) \times \left(\dfrac{s}{2}\right) \\[0.6em] &= \dfrac{s^2}{4} \end{aligned}

Step 2 · Method 2: Four Triangles (Diagonals)

Draw the two diagonals intersecting at the center of the square. Diagram 2

This divides the square into $4$ congruent triangles. For each triangle:

$\text{Base} = s$
$\text{Height} = \dfrac{s}{2}$ (perpendicular distance from the center to a side)

Area of one triangle $A_2$ :

\begin{aligned} A_2 &= \dfrac{1}{2} \times \text{base} \times \text{height} \\[0.6em] &= \dfrac{1}{2} \times s \times \dfrac{s}{2} \\[0.6em] &= \dfrac{s^2}{4} \end{aligned}

Step 3 · Method 3: Four Quadrilaterals

Connect the center of the square to the midpoint of each side. Diagram 3

Let $O$ be the center and $M_1, M_2, M_3, M_4$ be the midpoints of sides $\text{AB}, \text{BC}, \text{CD}, \text{DA}$ .

Each quadrilateral, such as $\text{AM}_1\text{OM}_4$ , is composed of two triangles: $\triangle \text{AOM}_1$ and $\triangle \text{AOM}_4$ .

For $\triangle \text{AOM}_1$ : $A_{\triangle \text{AOM}_1} = \dfrac{1}{2} \times \dfrac{s}{2} \times \dfrac{s}{2} = \dfrac{s^2}{8}$

For $\triangle \text{AOM}_4$ : $A_{\triangle \text{AOM}_4} = \dfrac{1}{2} \times \dfrac{s}{2} \times \dfrac{s}{2} = \dfrac{s^2}{8}$

Area of quadrilateral $\text{AM}_1\text{OM}_4$ ( $A_3$ ):

\begin{aligned} A_3 &= A_{\triangle \text{AOM}_1} + A_{\triangle \text{AOM}_4} \\[0.6em] &= \dfrac{s^2}{8} + \dfrac{s^2}{8} \\[0.6em] &= \dfrac{2s^2}{8} \\[0.6em] &= \dfrac{s^2}{4} \end{aligned}

Answer

Three creative ways to divide a square into $4$ parts of equal area are:

Four smaller squares by joining midpoints of opposite sides.
Four triangles by drawing both diagonals.
Four quadrilaterals by connecting the center to the midpoints of the sides.

Common Mistakes

Area vs. Shape: The parts do not necessarily have to be congruent to have equal areas, though using symmetry ensures both equal area and congruence.
Height of Triangle: Mistaking the triangle height for the full side length $s$ instead of the distance from the center to the base, which is $\dfrac{s}{2}$ .
