Question 36

Find out the local unit of area measurement in your region.

Solution

Understand the Question

Traditional and local units of area measurement vary widely across regions in India (such as Bigha, Katha, Guntha, Cent, and Gaj).
In many northern parts of India, Bigha (specifically Pucca Bigha) is commonly used.
One Pucca Bigha is standardly defined as $3025\text{ square yards}$ , which can be converted into square feet and standard metric units (square metres).

Step 1 · Convert Bigha to Square Feet

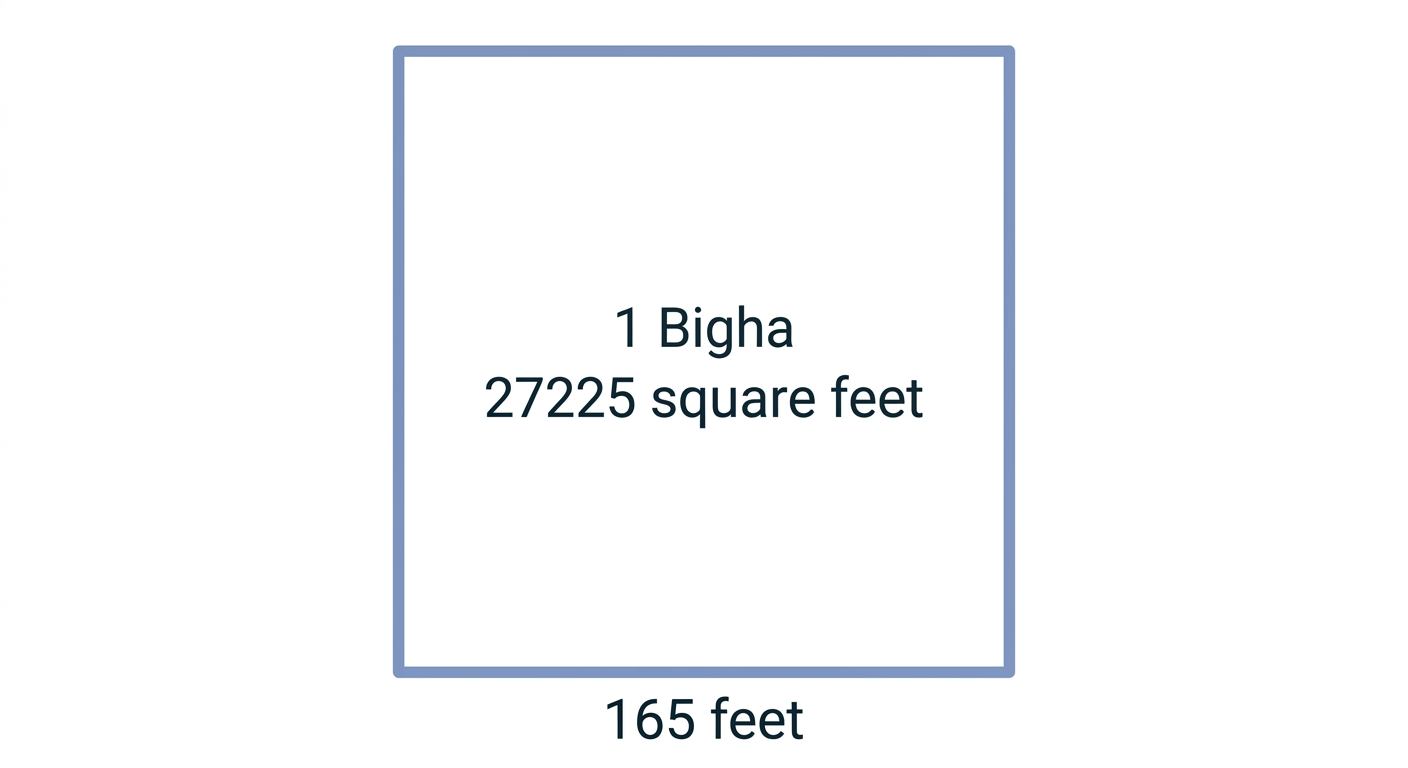

A common traditional unit of land measurement is the Bigha (Pucca Bigha). Diagram 1

Since $1\text{ yard} = 3\text{ feet}$ : $1\text{ square yard} = 3 \times 3 = 9\text{ square feet}$

Given $1\text{ Pucca Bigha} = 3025\text{ square yards}$ :

\begin{aligned} A_B &= 3025 \text{ square yards} \\[0.6em] &= 3025 \times 9 \text{ square feet} \\[0.6em] &= 27225 \text{ square feet} \end{aligned}

Step 2 · Convert Bigha to Square Metres

Since $1\text{ foot} \approx 0.3048\text{ metres}$ , the area of $1\text{ square foot}$ in square metres is:

\begin{aligned} A_M &= 0.3048 \times 0.3048 \text{ square meters} \\[0.6em] &= 0.09290304 \text{ square meters} \end{aligned}

Converting $1\text{ Bigha}$ to square metres:

\begin{aligned} A_{B\_m} &= 27225 \times 0.09290304 \text{ square meters} \\[0.6em] &= 2529.28 \text{ square meters} \end{aligned}

Other common units include Katha, Gaj (square yard), Acre ( $4840\text{ square yards}$ ), and Hectare ( $10{,}000\text{ square meters}$ ).

Answer

A common local unit of area measurement is the Bigha ( $1\text{ Pucca Bigha} \approx 27225\text{ square feet} \approx 2529.28\text{ square meters}$ ).

Common Mistakes

Assuming Universal Values: Local units like Bigha, Katha, or Biswa do not have a single standard value across all states; their sizes vary by state and district.
Linear vs Square Conversion: Forgetting to square conversion factors when converting area units (e.g., $1\text{ yd} = 3\text{ ft} \implies 1\text{ sq yd} = 3^2 = 9\text{ sq ft}$ , not $3\text{ sq ft}$ ).
