Question 27

What is the length of the shortest path between the ant and the laddu?

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

To find the shortest path on the surface of a cuboid, we unfold the faces into a flat 2D plane and draw a straight line between the two points.

Step 1 — Understand the cuboid and positions

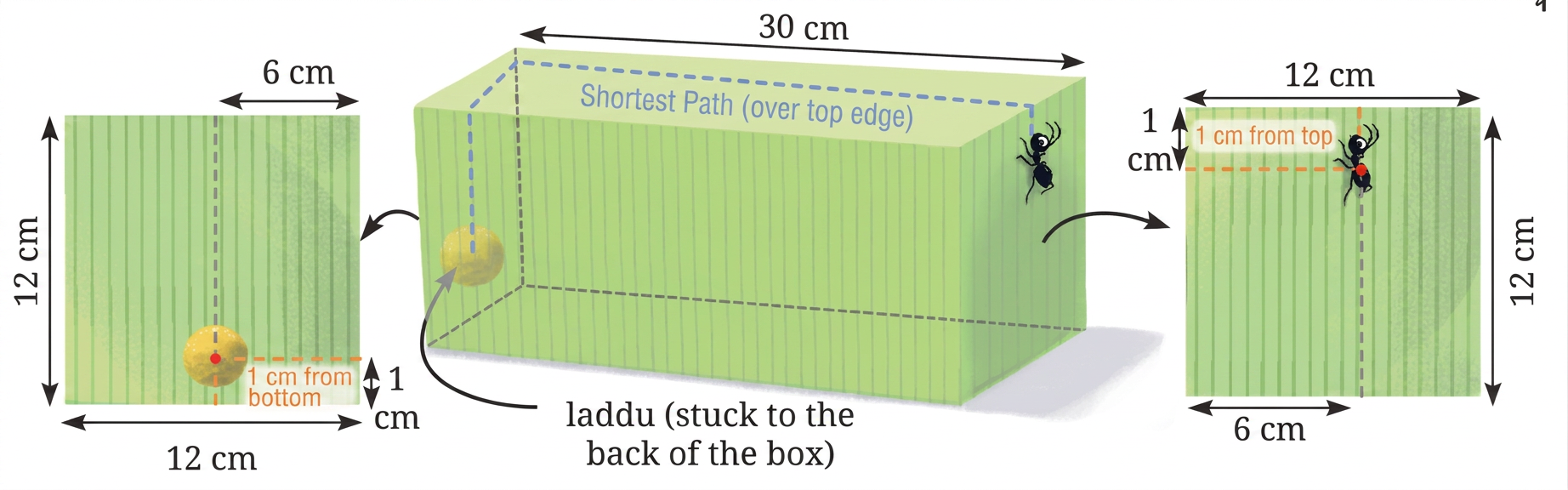

Let us identify the dimensions of the cuboid and the exact positions of the ant and the laddu. The cuboid has a length of 30 cm. The end faces (where the ant and laddu are) are squares with sides of 12 cm. So, the width of the box is 12 cm and the height of the box is 12 cm.

The laddu is on the back face: It is 6 cm from the left edge of that face. It is 1 cm from the bottom edge of that face.

The ant is on the front face: It is 6 cm from the left edge of that face. It is 1 cm from the top edge of that face.

Diagram 1

Step 2 — Unfold the cuboid

We need to find a path from the back face to the front face. The shortest path will involve crossing one of the four side faces (top, bottom, left, or right) that connect the two end faces. Let us consider unfolding the cuboid over the top face.

Imagine we flatten the back face, the top face, and the front face into a single rectangle. The total "horizontal" distance in this unfolded rectangle will be the length of the cuboid. The total "vertical" distance will be the sum of the distances travelled on each face in that direction.

Let us calculate the horizontal distance: This is the length of the cuboid. Horizontal distance=Length of cuboid\text{Horizontal distance} = \text{Length of cuboid} =30 cm= \mathbf{30 \text{ cm}}

Now, let us calculate the vertical distance for the path over the top face: The path starts at the laddu on the back face. It goes up to the top edge of the back face. Distance from laddu to top edge of back face=Height of face−Laddu’s distance from bottom\text{Distance from laddu to top edge of back face} = \text{Height of face} - \text{Laddu's distance from bottom} =12 cm−1 cm= 12 \text{ cm} - 1 \text{ cm} =11 cm= 11 \text{ cm} Then, the path crosses the top face. The width of the top face is the same as the width of the cuboid. Width of top face=12 cm\text{Width of top face} = \mathbf{12 \text{ cm}} Finally, the path goes down from the top edge of the front face to the ant. Distance from top edge of front face to ant=Ant’s distance from top\text{Distance from top edge of front face to ant} = \text{Ant's distance from top} =1 cm= \mathbf{1 \text{ cm}} The total vertical distance for this path is the sum of these segments. Total vertical distance=11 cm+12 cm+1 cm\text{Total vertical distance} = 11 \text{ cm} + 12 \text{ cm} + 1 \text{ cm} =24 cm= \mathbf{24 \text{ cm}}

Step 3 — Calculate the shortest path length

On the unfolded 2D plane, the shortest path is a straight line. This forms the hypotenuse of a right-angled triangle. We use the Pythagorean theorem, where the two shorter sides are the horizontal and vertical distances we calculated. Let dd be the shortest path length. d2=(Horizontal distance)2+(Vertical distance)2d^2 = (\text{Horizontal distance})^2 + (\text{Vertical distance})^2 d2=(30 cm)2+(24 cm)2d^2 = (30 \text{ cm})^2 + (24 \text{ cm})^2 d2=900 cm2+576 cm2d^2 = 900 \text{ cm}^2 + 576 \text{ cm}^2 d2=1476 cm2d^2 = 1476 \text{ cm}^2 d=1476 cmd = \sqrt{1476} \text{ cm} To simplify the square root: 1476=36×41\sqrt{1476} = \sqrt{36 \times 41} =36×41= \sqrt{36} \times \sqrt{41} =641= 6 \sqrt{41}

We can check other paths (over the bottom face, or either side face). Due to the symmetry of the cuboid and the ant/laddu positions, all these paths will result in the same horizontal distance (30 cm) and vertical distance (24 cm), leading to the same shortest path length.

Answer

The length of the shortest path between the ant and the laddu is 641 cm6\sqrt{41} \text{ cm}.
