Fractals and Visualising Solids | IT

Question 30

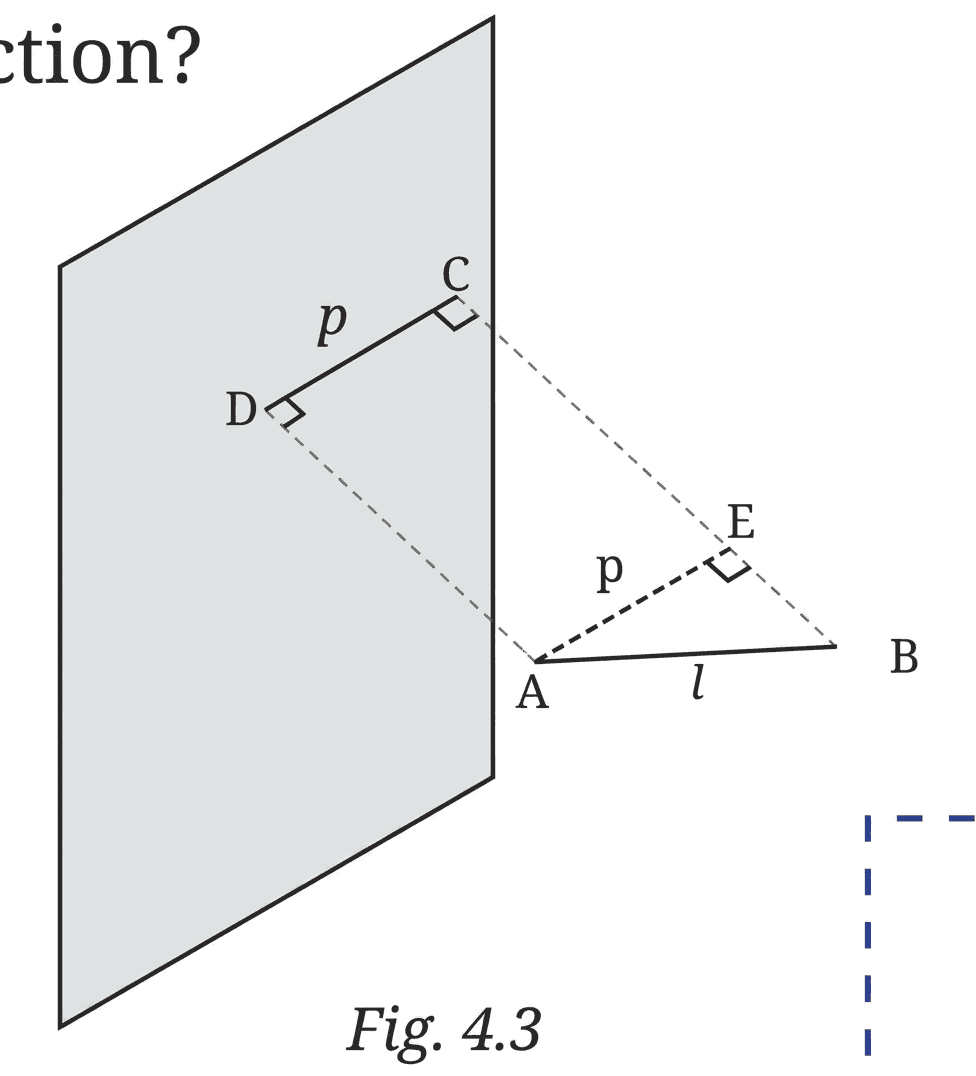

Can you now compare the lengths $p$ and $l$ ?

Solution

We can compare the lengths by using the properties of a right-angled triangle shown in the diagram.

Step 1 — Identify the right-angled triangle

Let us look at the triangle formed by points A, B, and E. This is triangle ABE. The diagram shows a small square symbol at point E. This symbol means that the angle at E, $\angle AEB$ , is $90^\circ$ . So, triangle ABE is a right-angled triangle.

Step 2 — Identify the sides of the triangle

In any right-angled triangle, the side opposite the $90^\circ$ angle is called the hypotenuse. In triangle ABE, the side opposite $\angle AEB$ is AB. So, AB is the hypotenuse. Its length is given as $l$ . The other two sides, AE and BE, are called the legs of the triangle. The length of AE is given as $p$ .

Step 3 — Compare the lengths using the Pythagorean theorem

The Pythagorean theorem states that in a right-angled triangle, the square of the hypotenuse is equal to the sum of the squares of the other two sides. So, for triangle ABE: $AB^2 = AE^2 + BE^2$ We are given that $AB = l$ and $AE = p$ . $l^2 = p^2 + BE^2$ From the diagram, point B is clearly not the same as point E (B is off the plane, E is on the line AE). This means the length of BE must be greater than 0. So, $BE^2$ is a positive number. Since $l^2$ is equal to $p^2$ plus a positive number, $l^2$ must be greater than $p^2$ . $l^2 > p^2$ Since $l$ and $p$ represent lengths, they must be positive values. If $l^2 > p^2$ and both $l$ and $p$ are positive, then $l$ must be greater than $p$ . $l > p$

$\boxed{l > p}$

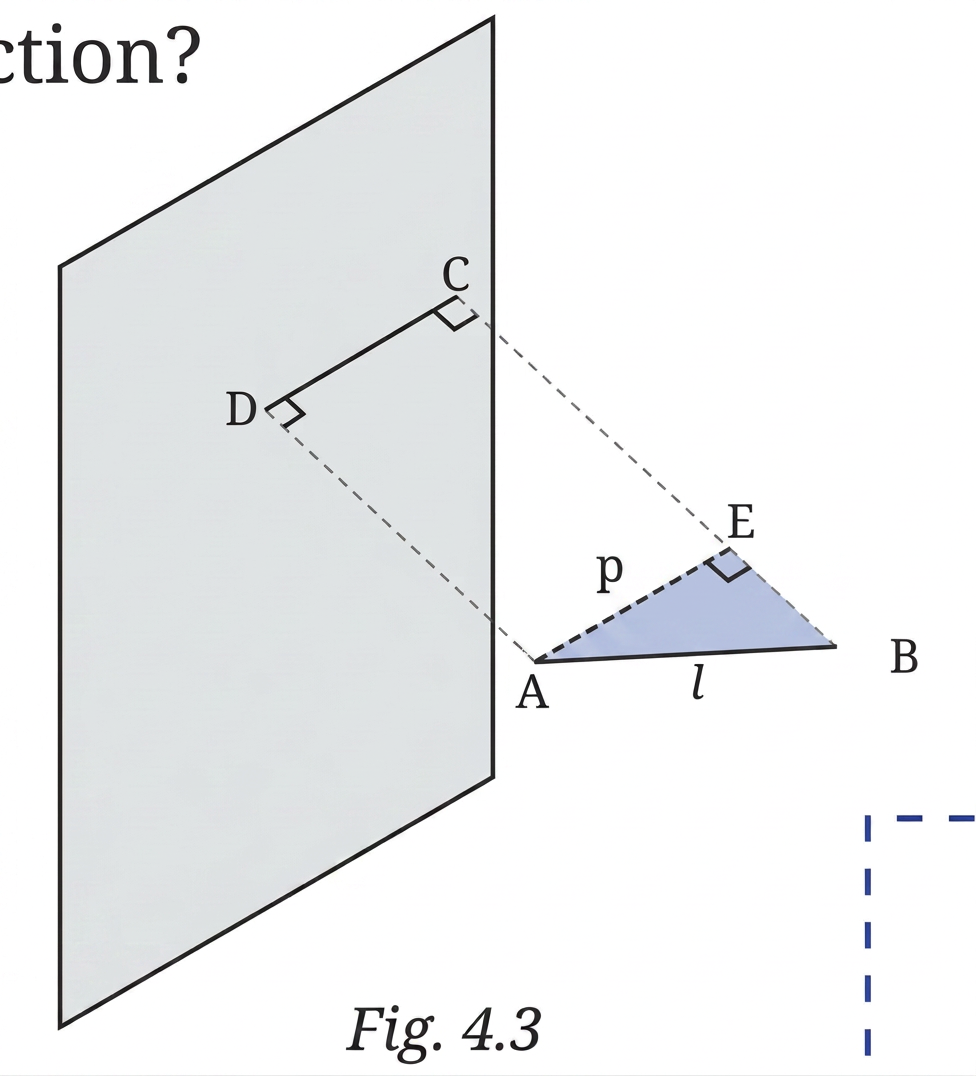

Diagram 1

Answer

The length $l$ is greater than the length $p$ .
