Question 22

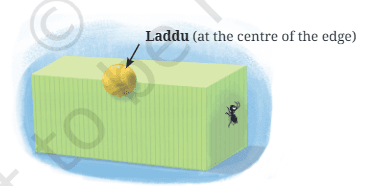

What about in the following case?

Solution

Understand the Question

To find the shortest path an ant can crawl along the surface of a 3D cuboid to reach a laddoo, we flatten (unfold) the relevant faces of the cuboid into a 2D net.
On a flat net, the shortest distance between two points is a straight line, which can be found using the distance formula (Pythagoras theorem).
Since different unfoldings yield different paths, the actual shortest distance is the minimum among all possible unfolded paths.

Step 1 · Define Dimensions and Coordinates

Let the cuboid have length $L$ (front-to-back), width $W$ (left-to-right), and height $H$ (bottom-to-top), with origin $(0,0,0)$ at the bottom-left-back corner.

Ant's position ( $A$ ): Center of the right face: $A = \left(W, \dfrac{L}{2}, \dfrac{H}{2}\right)$
Laddoo's position ( $L$ ): Center of the front-top edge: $L = \left(\dfrac{W}{2}, 0, H\right)$

Step 2 · Path 1 — Cross Top-Right Edge

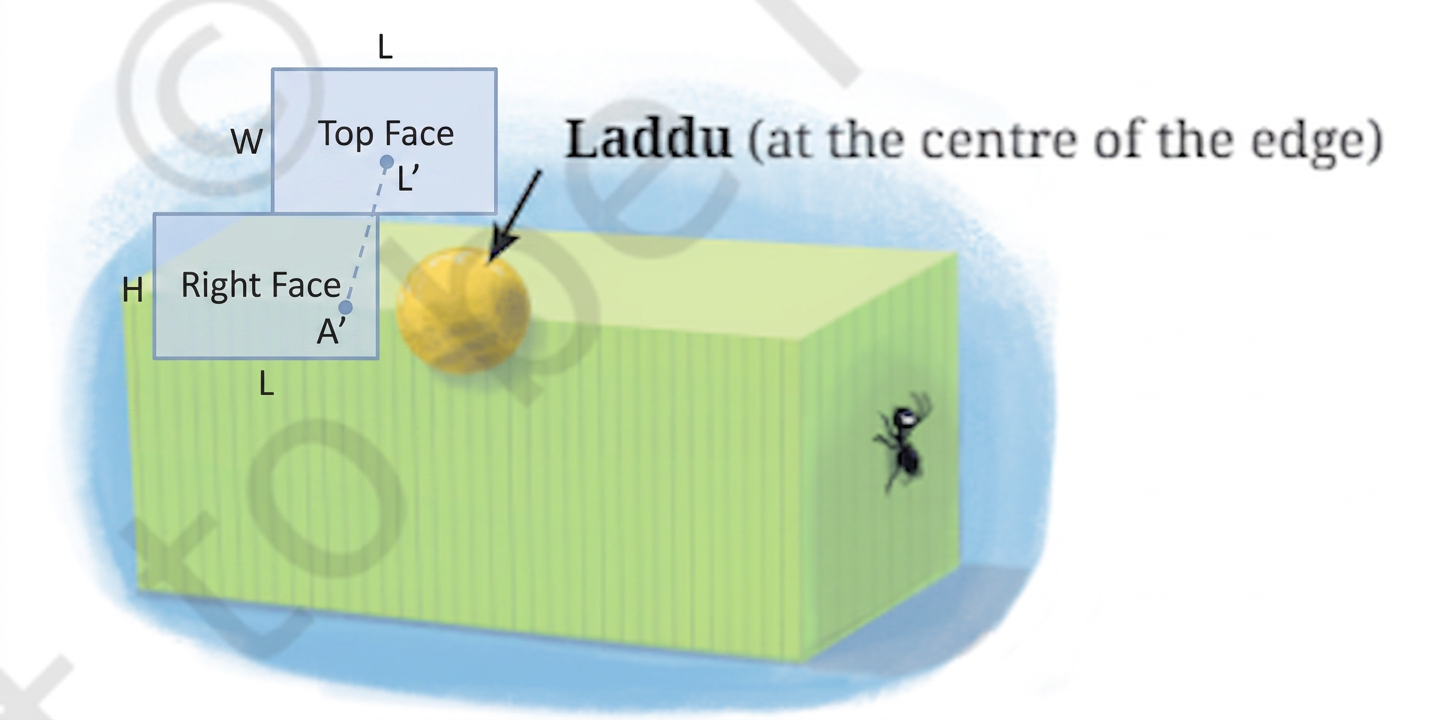

Unfold the right face ( $L \times H$ ) and top face ( $W \times L$ ) along the top-right edge. Diagram 1

In the 2D unfolded plane:

Ant: $A' = \left(\dfrac{L}{2}, \dfrac{H}{2}\right)$
Laddoo: $L' = \left(\dfrac{L}{2}, H + \dfrac{W}{2}\right)$

Calculating the distance $D_1$ :

\begin{aligned} D_1 &= \sqrt{\left(\frac{L}{2} - \frac{L}{2}\right)^2 + \left(\frac{H}{2} - \left(H + \frac{W}{2}\right)\right)^2} \\[0.6em] &= \sqrt{0^2 + \left(-\frac{H}{2} - \frac{W}{2}\right)^2} \\[0.6em] &= \sqrt{\left(\frac{H}{2} + \frac{W}{2}\right)^2} \\[0.6em] &= \dfrac{H + W}{2} \end{aligned}

Step 3 · Path 2 — Cross Front Face to Top Face

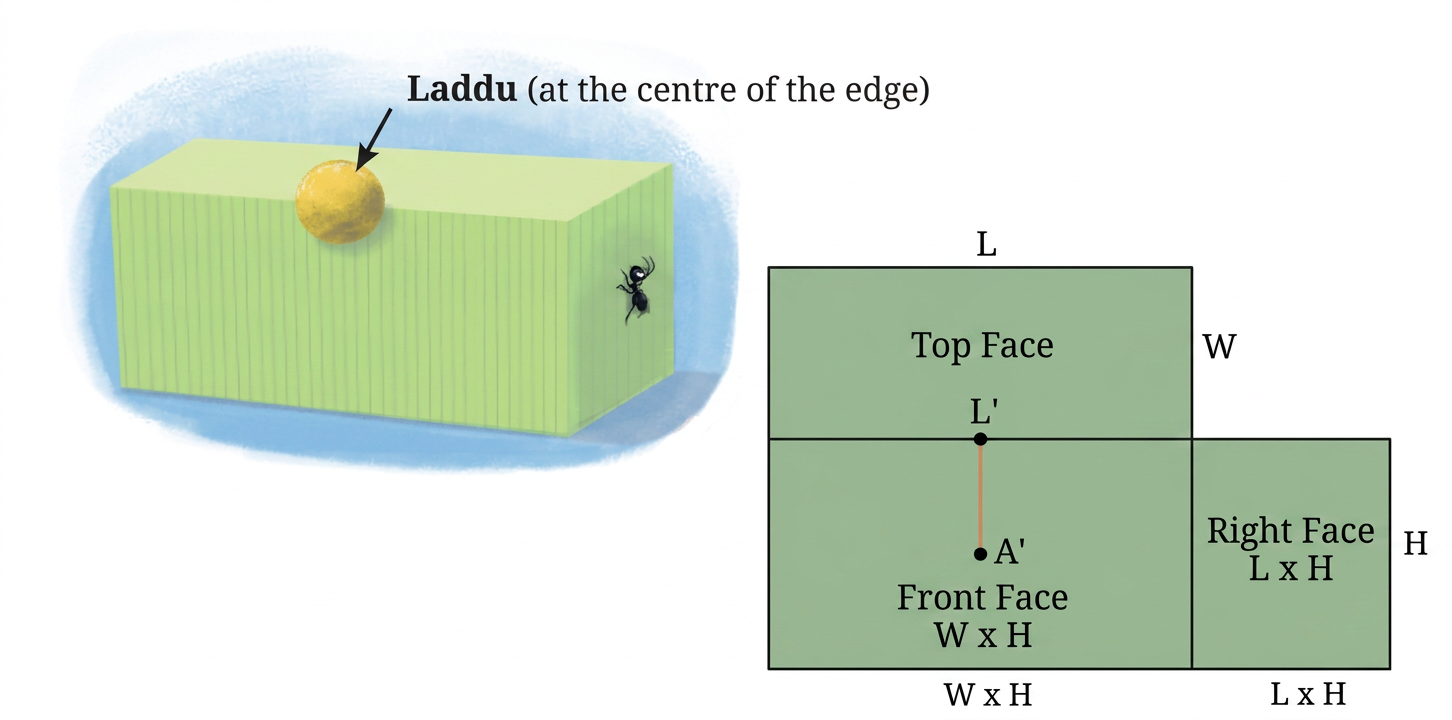

Unfold the front face ( $W \times H$ ) with the right face ( $L \times H$ ) to its side and the top face ( $W \times L$ ) above it. Diagram 2

In the 2D unfolded plane:

Ant: $A' = \left(W + \dfrac{L}{2}, \dfrac{H}{2}\right)$
Laddoo: $L' = \left(\dfrac{W}{2}, H\right)$

Calculating the distance $D_2$ :

\begin{aligned} D_2 &= \sqrt{\left(\left(W + \frac{L}{2}\right) - \frac{W}{2}\right)^2 + \left(\frac{H}{2} - H\right)^2} \\[0.6em] &= \sqrt{\left(\frac{W}{2} + \frac{L}{2}\right)^2 + \left(-\frac{H}{2}\right)^2} \\[0.6em] &= \sqrt{\frac{(W + L)^2}{4} + \frac{H^2}{4}} \\[0.6em] &= \dfrac{1}{2} \sqrt{(W + L)^2 + H^2} \end{aligned}

Step 4 · Path 3 — Cross Back Face to Top Face

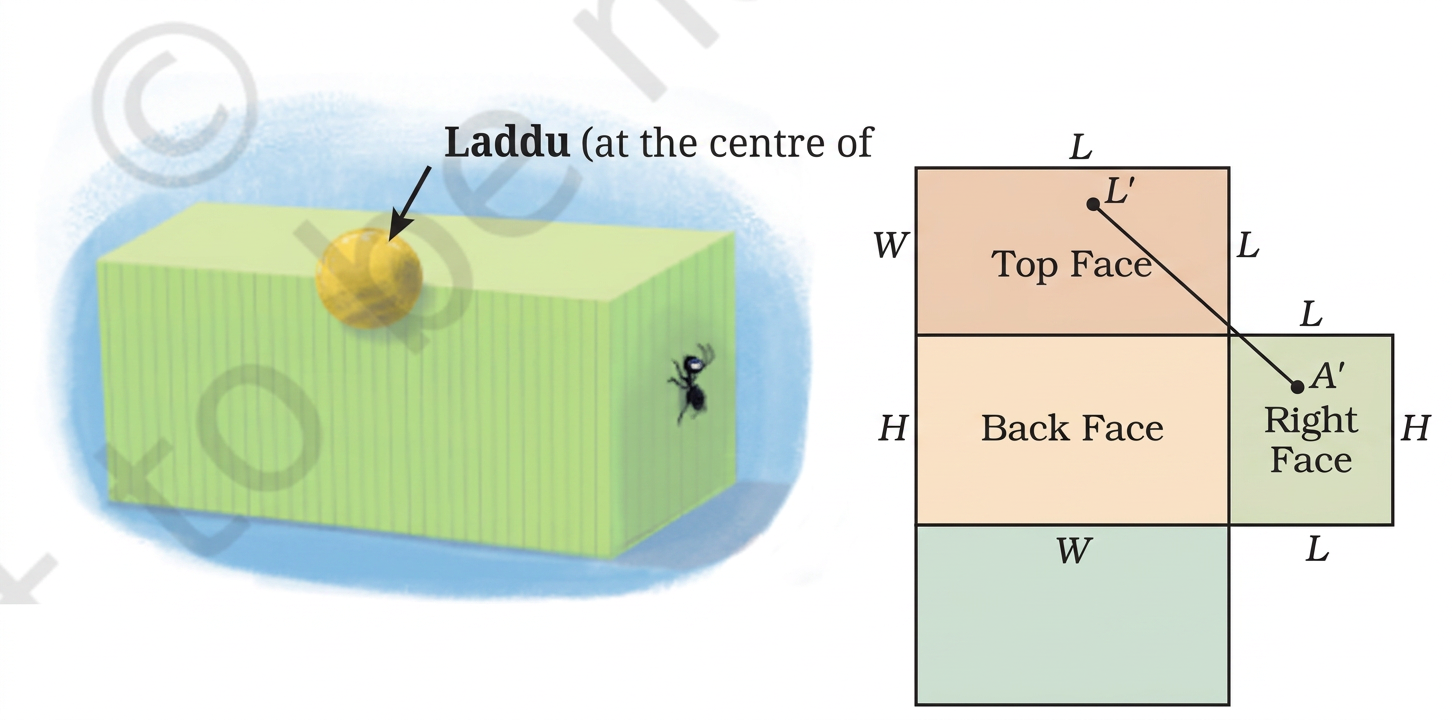

Unfold the back face ( $W \times H$ ) with the right face ( $L \times H$ ) to its side and the top face ( $W \times L$ ) above it. Diagram 3

In the 2D unfolded plane:

Ant: $A' = \left(W + \dfrac{L}{2}, \dfrac{H}{2}\right)$
Laddoo: $L' = \left(\dfrac{W}{2}, H + L\right)$

Calculating the distance $D_3$ :

\begin{aligned} D_3 &= \sqrt{\left(\left(W + \frac{L}{2}\right) - \frac{W}{2}\right)^2 + \left(\frac{H}{2} - (H + L)\right)^2} \\[0.6em] &= \sqrt{\left(\frac{L}{2}\right)^2 + \left(-\frac{H}{2} - L\right)^2} \\[0.6em] &= \sqrt{\frac{L^2}{4} + \frac{(H + 2L)^2}{4}} \\[0.6em] &= \dfrac{1}{2} \sqrt{L^2 + (H + 2L)^2} \end{aligned}

Answer

$\min\left( \dfrac{H + W}{2}, \; \dfrac{1}{2}\sqrt{(W + L)^2 + H^2}, \; \dfrac{1}{2}\sqrt{L^2 + (H + 2L)^2} \right)$

Common Mistakes

3D Diagonal Error: Calculating the straight-line Euclidean distance through the interior volume of the cuboid rather than along its surface.
Single Unfolding Assumption: Considering only one unfolded path (e.g., direct top-right edge) instead of checking all possible routes across different adjacent faces, as the shortest path depends on the relative values of $L$ , $W$ , and $H$ .
