Question 2

Show that by joining the midpoints of an equilateral triangle, we divide it into 4 identical equilateral triangles.

[Hint: Note that the corner triangles are isosceles.]

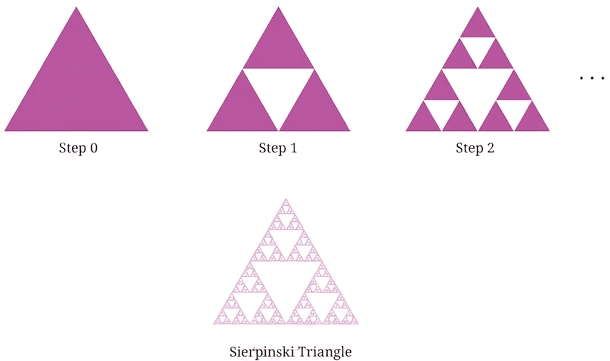

This fractal is called the Sierpinski Triangle/Gasket.

Solution

Connecting the middle points of each side of an equilateral triangle creates four smaller triangles inside.

Step 1 — Starting with an equilateral triangle

Let us consider a large equilateral triangle. All its sides are equal in length. All its angles are equal to $60^\circ$ . Let the side length of this large triangle be $2L$ .

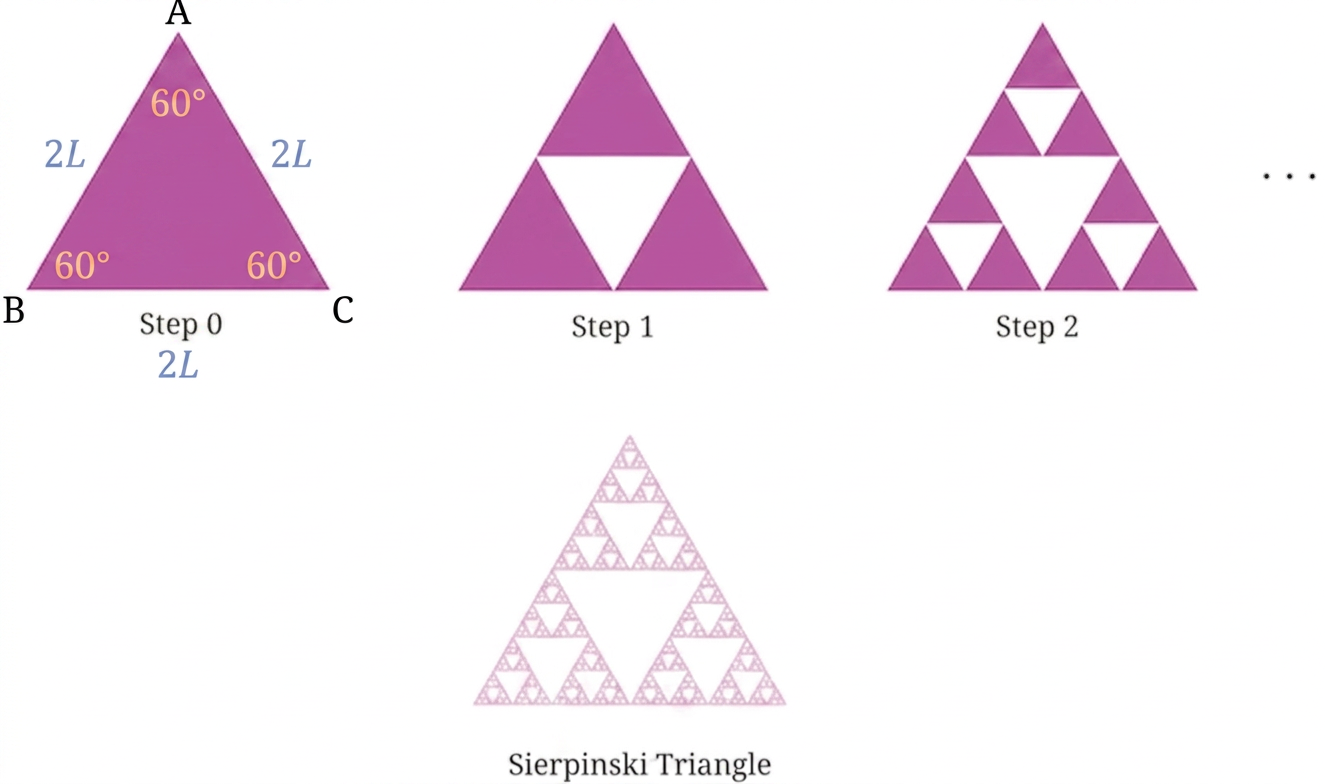

Diagram 1

Step 2 — Marking the midpoints

We find the midpoint of each side. A midpoint divides a side into two equal parts. Let D be the midpoint of side AB. Let E be the midpoint of side BC. Let F be the midpoint of side CA.

The length of AD is half of AB. $AD = \frac{1}{2} \times AB$ $AD = \frac{1}{2} \times 2L$

$\boxed{AD = L}$

Similarly, $DB = L$ , $BE = L$ , $EC = L$ , $CF = L$ , and $FA = L$ .

Diagram 2

Step 3 — Forming the inner triangle

We connect these midpoints to form a new triangle. This new triangle is DEF. A line segment joining two midpoints is half the length of the third side. It is also parallel to the third side.

Consider the segment DE. It connects midpoint D of AB and midpoint E of BC. So, DE is half the length of AC. $DE = \frac{1}{2} \times AC$ $DE = \frac{1}{2} \times 2L$

$\boxed{DE = L}$

Similarly, EF connects midpoints E and F. So, EF is half the length of AB. $EF = \frac{1}{2} \times AB = L$

And FD connects midpoints F and D. So, FD is half the length of BC. $FD = \frac{1}{2} \times BC = L$

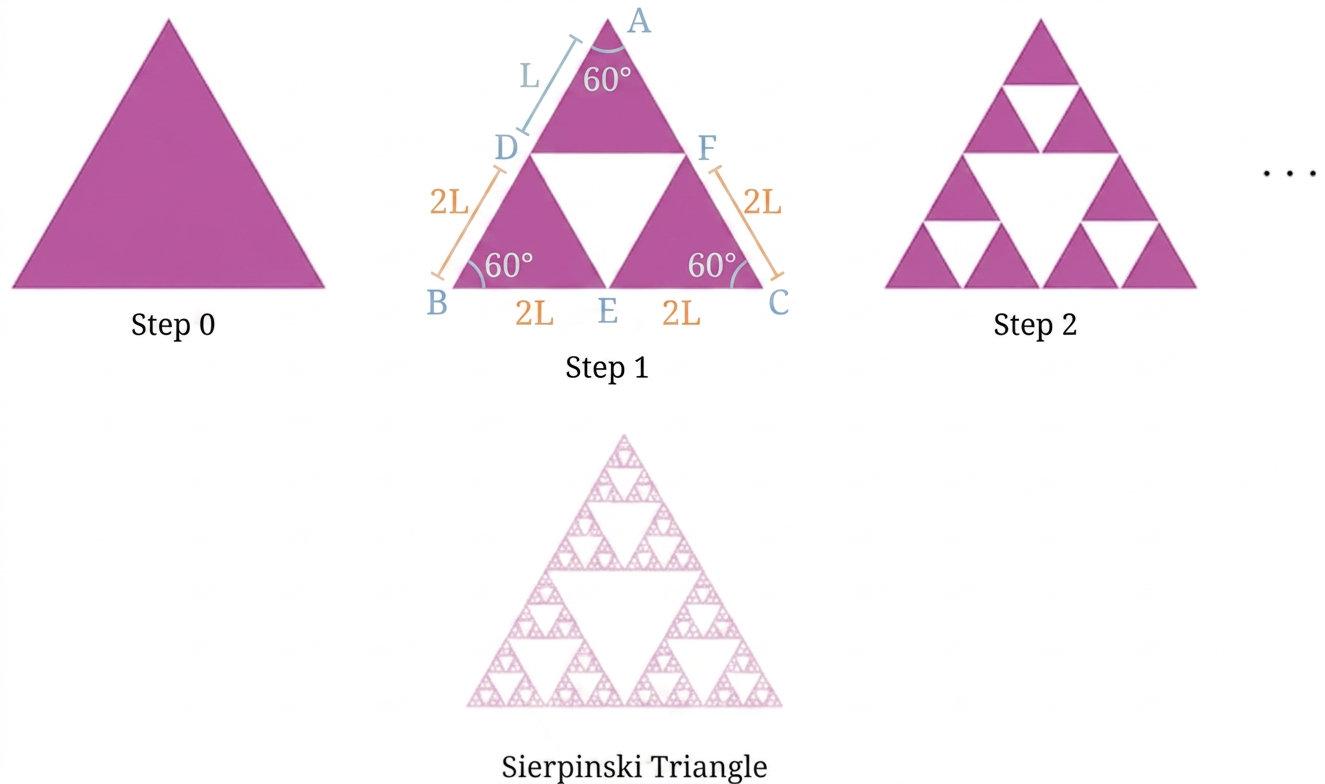

Diagram 3

Step 4 — Showing all four triangles are equilateral

We now have four triangles: ADF, BDE, CEF, and DEF. Let us look at triangle DEF first. We found that $DE = L$ , $EF = L$ , and $FD = L$ . Since all three sides are equal, triangle DEF is an equilateral triangle.

Now consider triangle ADF. We know $AD = L$ and $AF = L$ . The angle at vertex A is $60^\circ$ . This is because the large triangle ABC is equilateral. Since two sides are equal and the angle between them is $60^\circ$ , the triangle must be equilateral. So, triangle ADF is an equilateral triangle.

Similarly, for triangle BDE: $BD = L$ , $BE = L$ . Angle B is $60^\circ$ . So, triangle BDE is an equilateral triangle.

And for triangle CEF: $CE = L$ , $CF = L$ . Angle C is $60^\circ$ . So, triangle CEF is an equilateral triangle.

All four triangles are equilateral triangles.

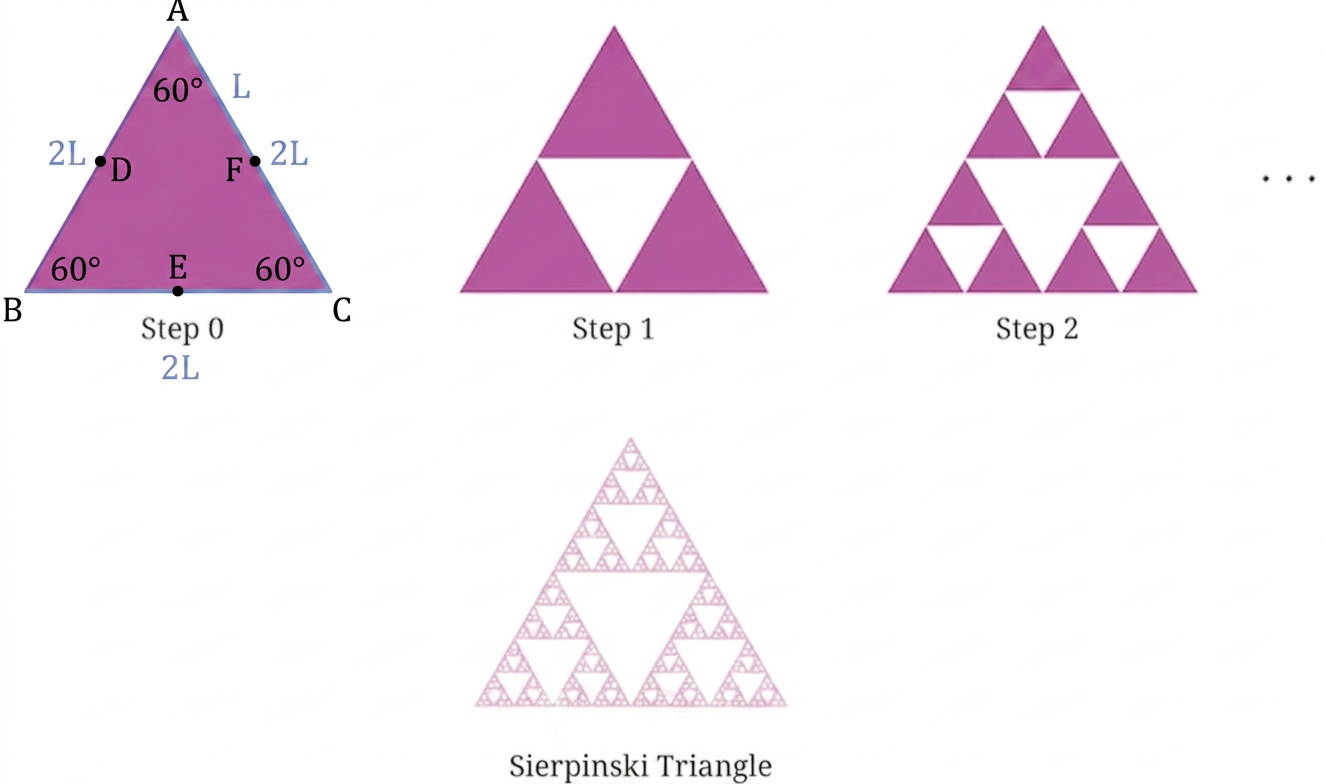

Diagram 4

Step 5 — Showing all four triangles are identical

We have shown that all four triangles are equilateral. Each of these triangles has a side length of $L$ . For example, triangle ADF has sides $L, L, L$ . Triangle BDE has sides $L, L, L$ . Triangle CEF has sides $L, L, L$ . Triangle DEF has sides $L, L, L$ . Since they are all equilateral and have the same side length, they are identical. This means they are congruent (exactly the same shape and size).

Therefore, joining the midpoints of an equilateral triangle divides it into 4 identical equilateral triangles.

Answer

(i) Joining the midpoints of an equilateral triangle creates four smaller triangles. (ii) Each of these four smaller triangles is an equilateral triangle. (iii) All four smaller equilateral triangles are identical to each other.
