Question 33

What do you think is the projection of a parallelogram under different orientations?

Can this ever be a quadrilateral that is not a parallelogram? As a starting point, you could think about the projection of a pair of parallel lines.

Solution

We will imagine shining a light straight down onto a parallelogram and seeing its shadow.

Step 1 — What is projection? Imagine a flat surface, like the floor. Shine a light from far away. Point it straight down onto an object. The shadow made is its projection. We call this an orthogonal projection.

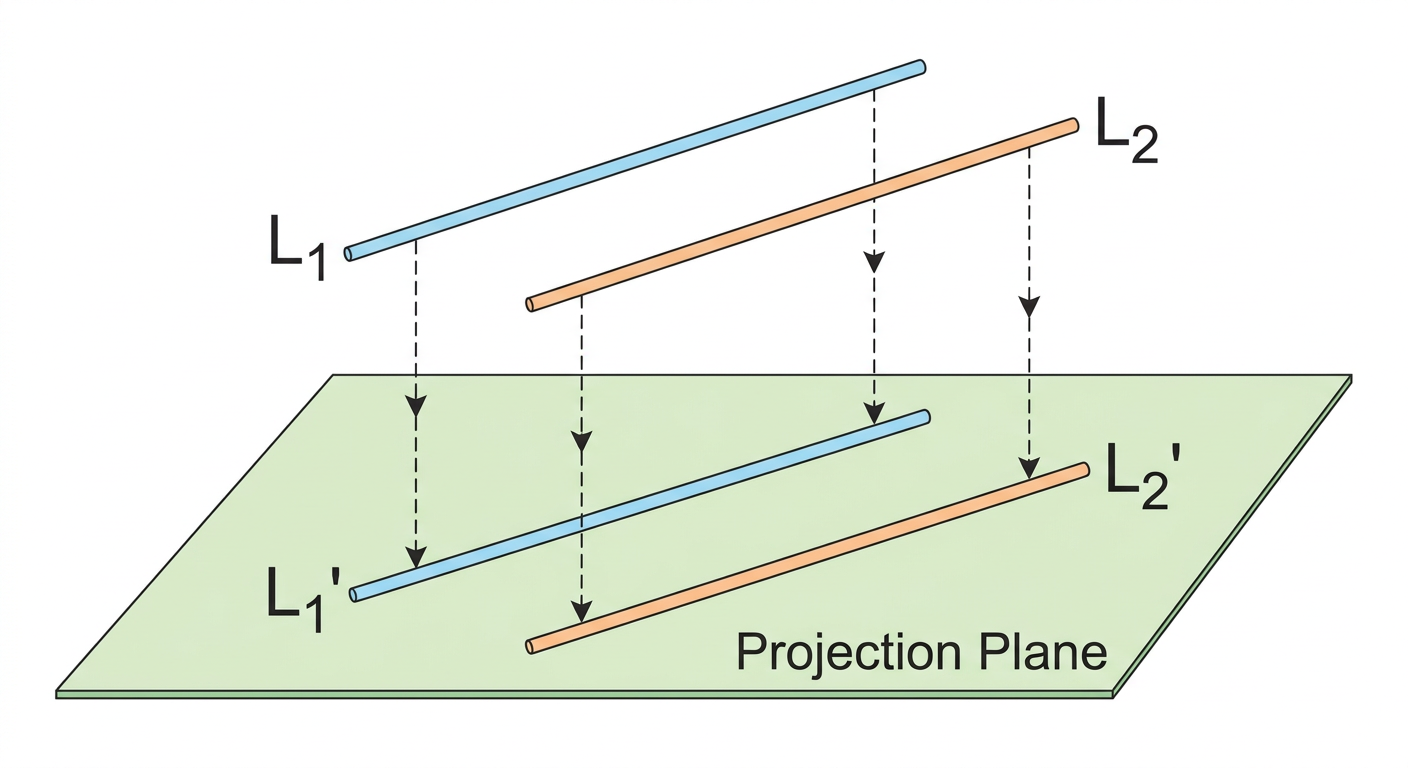

Step 2 — Parallel lines project to parallel lines Let us think about two parallel lines. Imagine railway tracks. If we shine light straight down, their shadows are parallel. This is true for most cases. The lines must not be standing straight up. Sides of a parallelogram are not like this. So, parallel lines project to parallel lines.

$\boxed{\text{Parallel lines project to parallel lines.}}$

Diagram 1

Step 3 — Projection of a parallelogram A parallelogram has four sides. It has two pairs of opposite sides. These opposite sides are parallel. Let our parallelogram be $ABCD$ . Side $AB$ is parallel to side $DC$ . Side $AD$ is parallel to side $BC$ . We project $ABCD$ onto a flat surface. We get a new shape $A'B'C'D'$ . The projection of $AB$ is $A'B'$ . The projection of $DC$ is $D'C'$ . Since $AB \parallel DC$ , $A'B'$ and $D'C'$ are parallel. Similarly, $A'D'$ is parallel to $B'C'$ . The projected shape $A'B'C'D'$ has two pairs of parallel sides. A shape with two pairs of parallel sides is a parallelogram. So, the projection of a parallelogram is always a parallelogram.

$\boxed{\text{Projection of a parallelogram is always a parallelogram.}}$

Step 4 — Different orientations A parallelogram can be tilted in many ways. Its orientation means how it is placed. Even if we tilt the original parallelogram, its opposite sides stay parallel. So, their projected shadows will still be parallel. For example, a square is a special parallelogram. If we project a square, its shadow can be a rectangle. It can also be a general parallelogram. But it will always be a parallelogram. The projected shape changes, but it remains a parallelogram.

Step 5 — Can it be a non-parallelogram quadrilateral? Based on our steps, the answer is no. The projection of a parallelogram always has two pairs of parallel sides. This means it is always a parallelogram itself. It cannot be a quadrilateral that is not a parallelogram.

Answer

(i) The projection of a parallelogram under different orientations is always another parallelogram. (ii) No, it cannot be a quadrilateral that is not a parallelogram.
