Question 42
Can you try drawing the other tetris shapes on isometric paper?
- Isometric paper uses a grid of equilateral triangles (dots forming axes at , , and ) that allows us to draw three-dimensional solids with accurate proportions.
- A tetromino (Tetris shape) is a 3D geometric figure formed by joining unit cubes face-to-face.
- There are standard tetrominoes: I, O, T, L, J, S, and Z.
- Each shape is constructed by first drawing a single unit cube on the isometric dots and then attaching subsequent cubes along the grid lines.

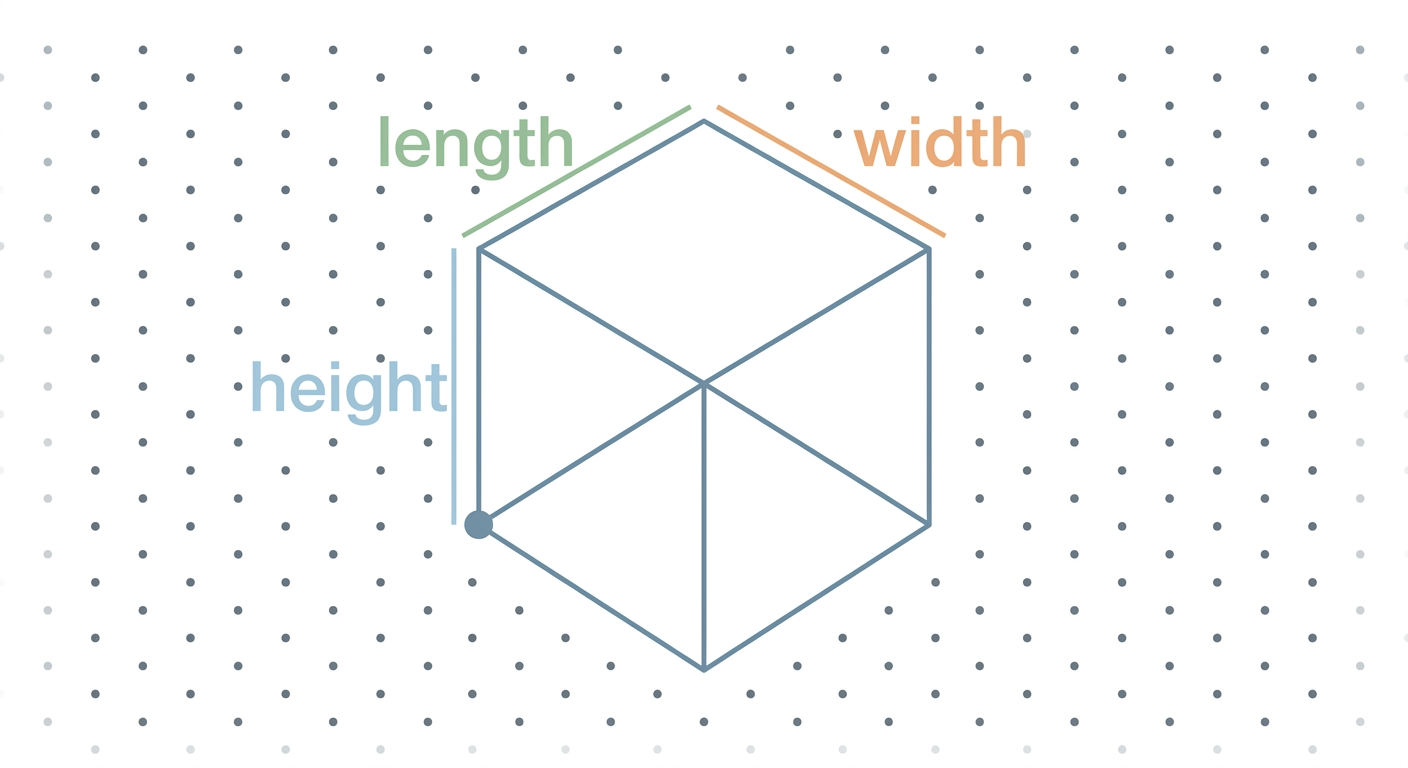

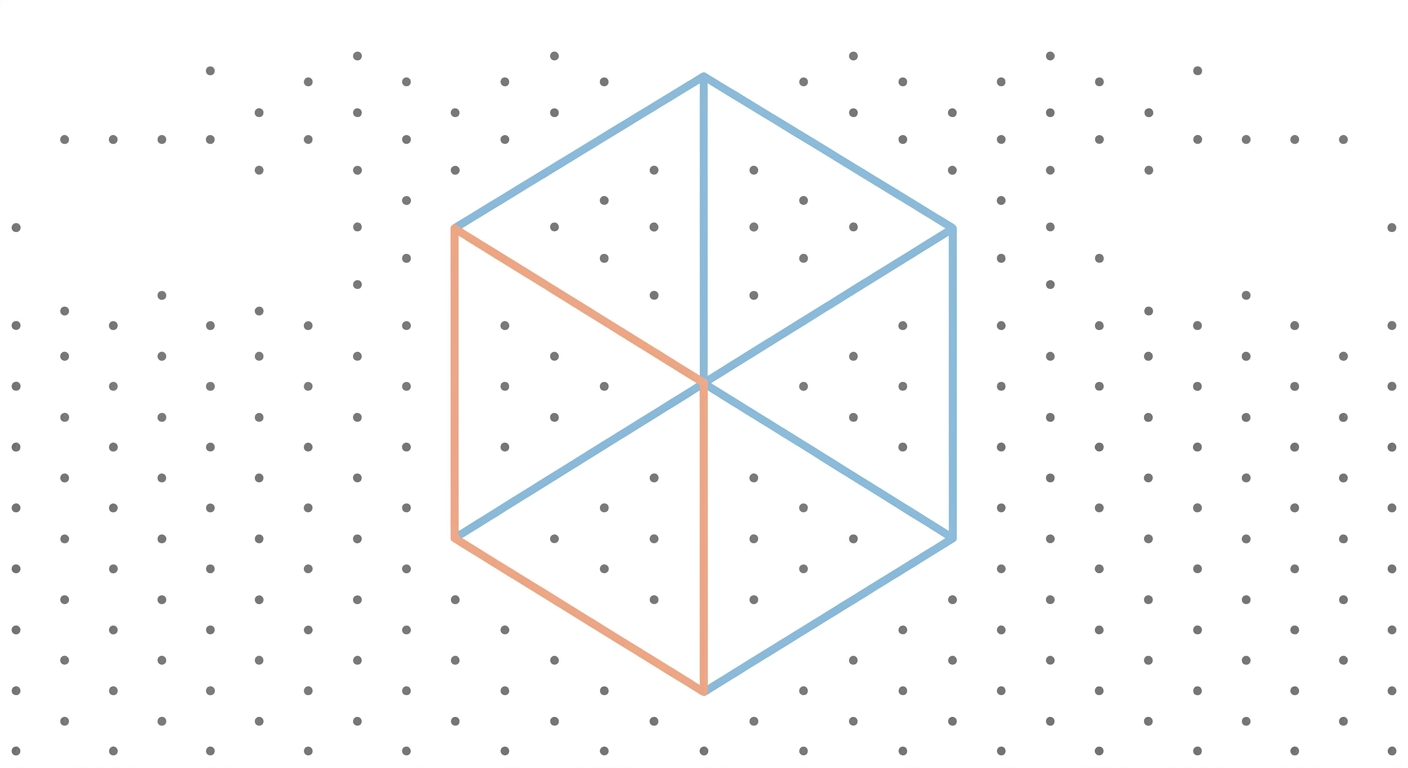

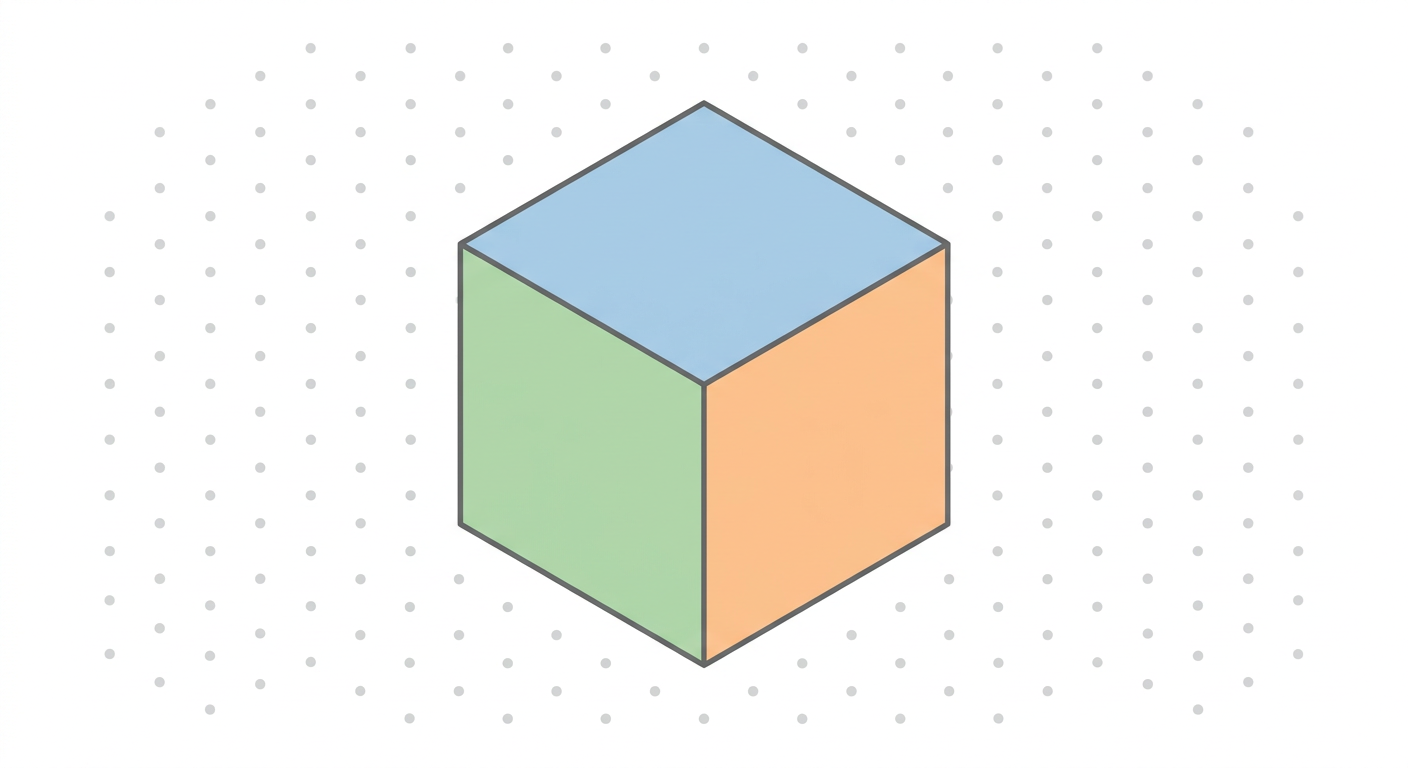

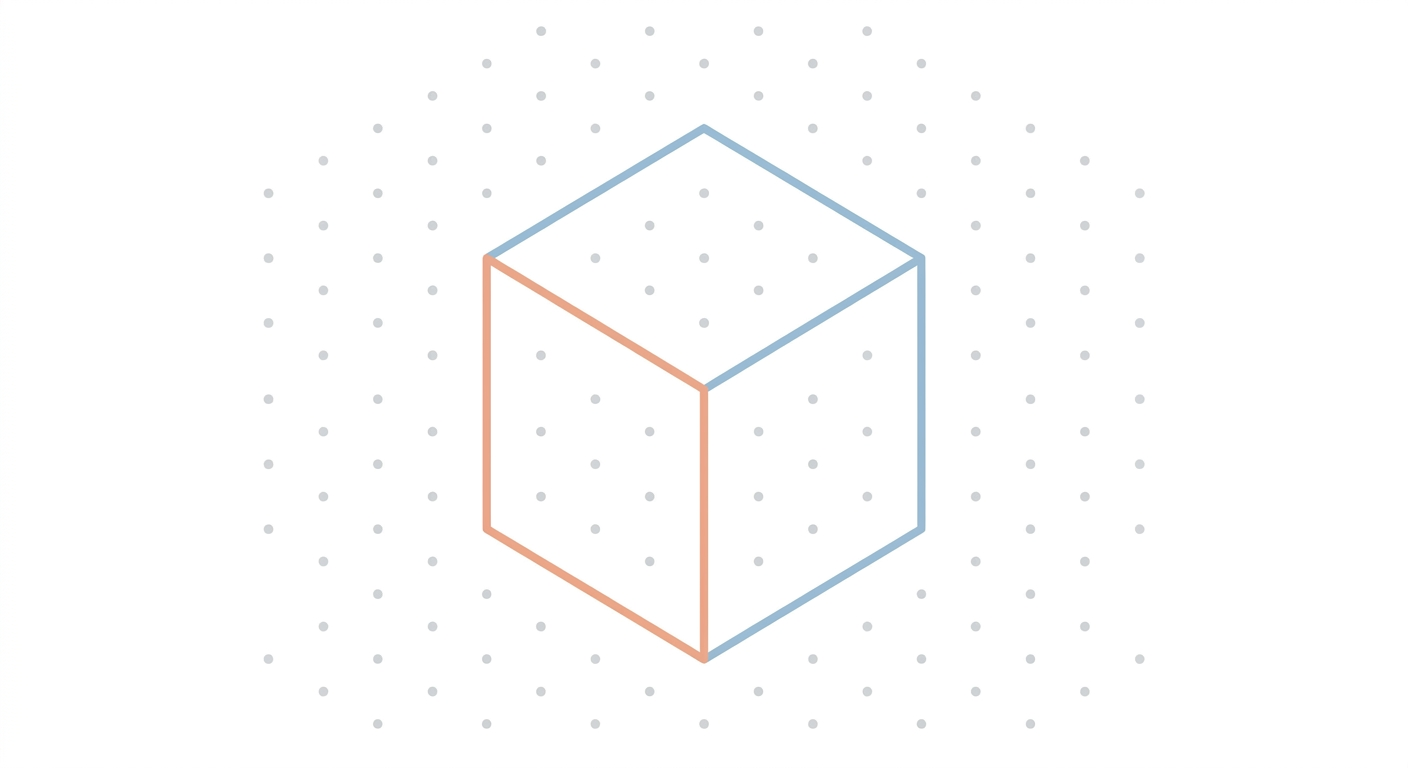

Step 1 · Draw a Unit Cube on Isometric Paper

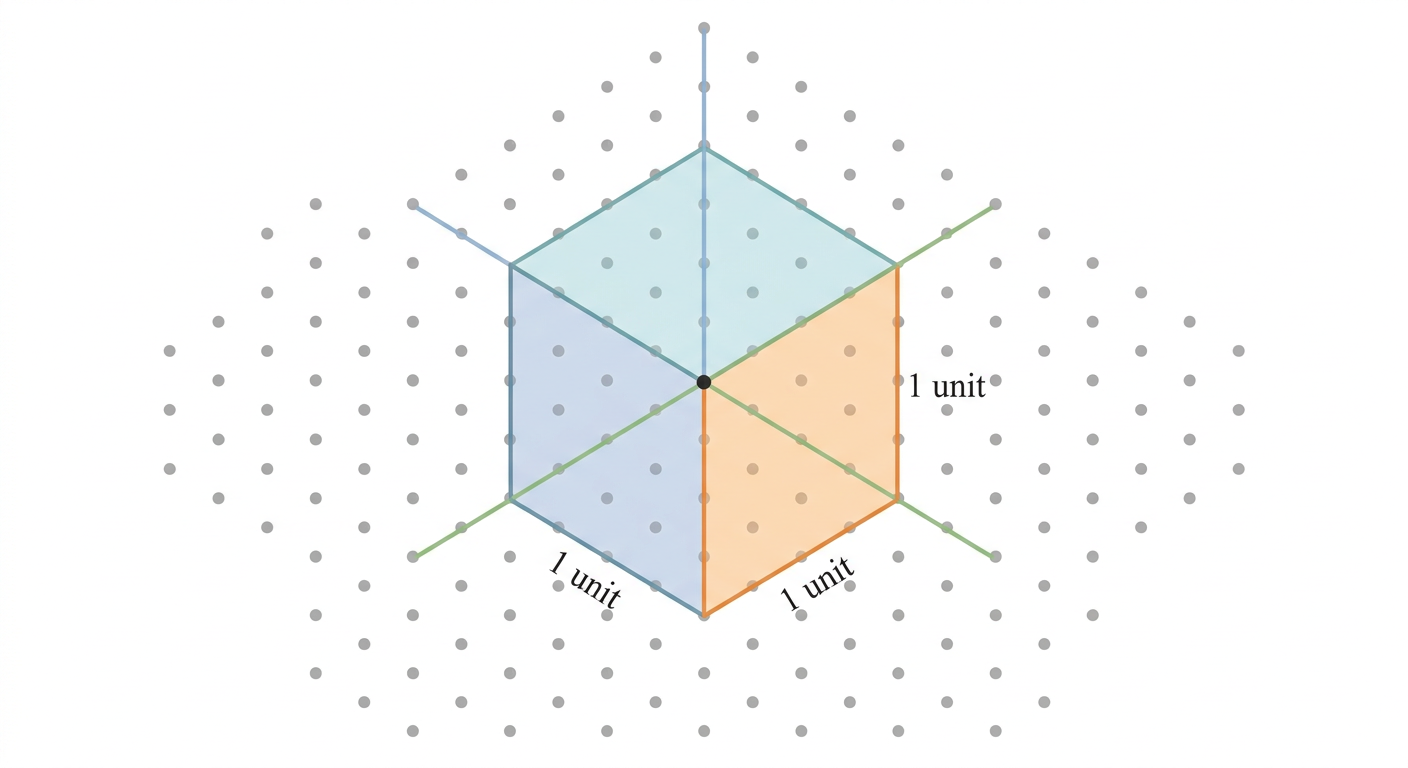

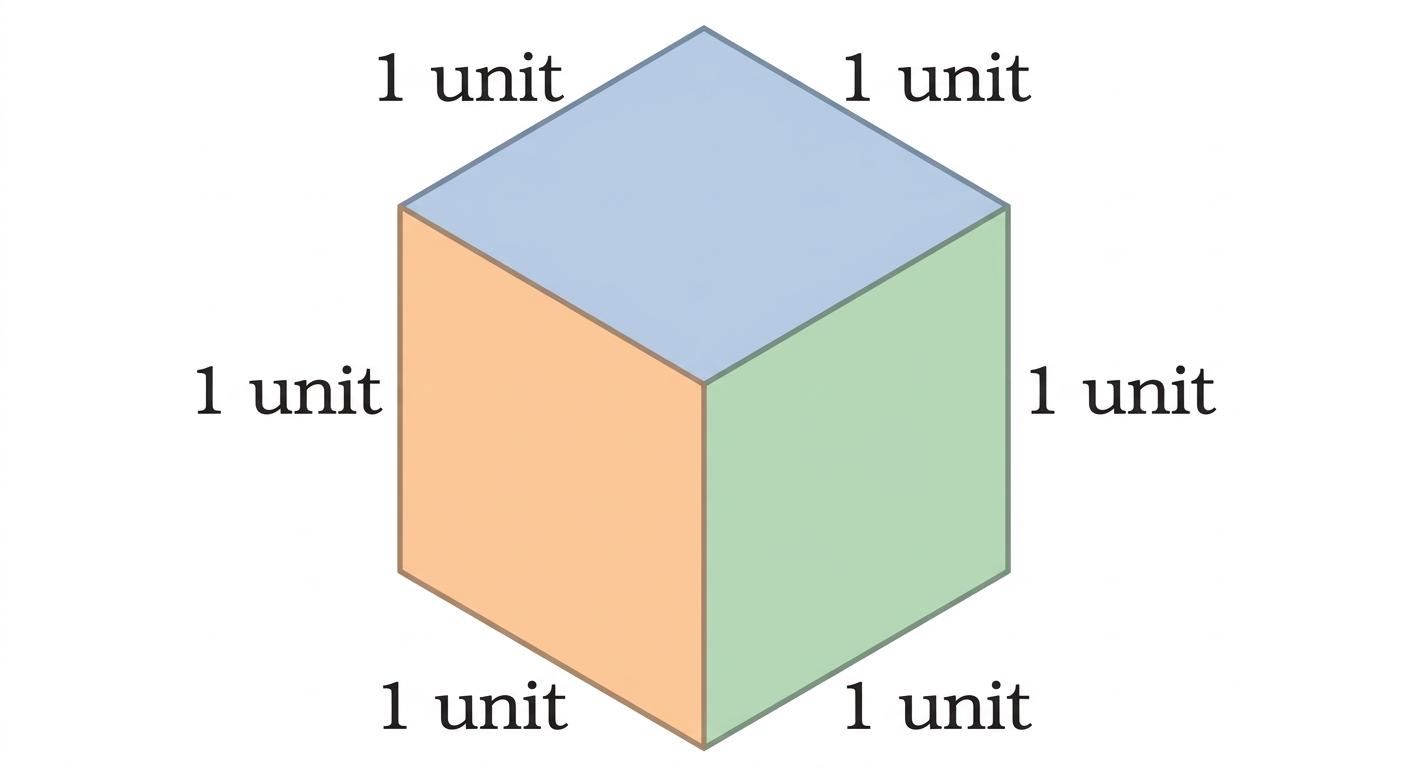

To draw a unit cube of side :

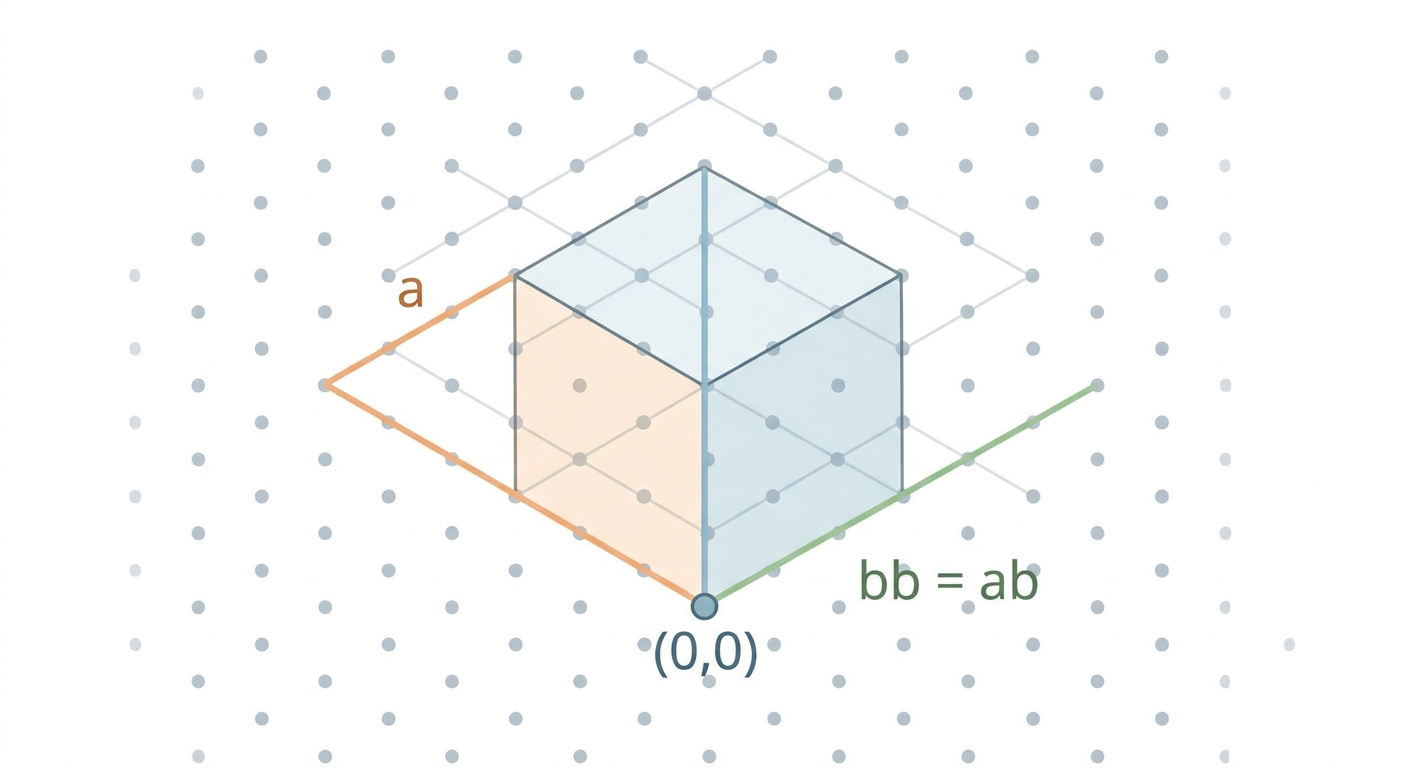

- Choose a starting dot as the front-bottom-left corner.
- Draw segments of length from this dot along the grid axes: vertically upward (), up-right (), and up-left ().
- Complete the top rhombus face by drawing two parallel segments of length .
- Draw vertical segments from the remaining visible corners and join them to form the side faces.
Step 2 · Draw the I-Tetromino (Straight)
- The I-tetromino consists of unit cubes in a straight line.
- Draw the first unit cube, then extend more cubes sequentially along the same grid axis, sharing adjoining faces.
Step 3 · Draw the O-Tetromino (Square)
- The O-tetromino is a block of cubes.
- Draw cubes side-by-side along one axis, then draw another pair of cubes directly adjacent to them along the perpendicular isometric axis.
Step 4 · Draw the T-Tetromino
- The T-tetromino consists of a line of cubes with extra cube attached to the middle.
- Draw cubes in a row, then attach the fourth cube extending outward from the center cube's face.
Step 5 · Draw the L-Tetromino
- The L-tetromino has cubes in a line with cube attached at one end.
- Draw a row of cubes, then attach the fourth cube to one endpoint extending in a perpendicular direction.
Step 6 · Draw the J-Tetromino
- The J-tetromino is the mirror image of the L-tetromino.
- Draw a row of cubes, then attach the fourth cube to the opposite end extending in the same direction.
Step 7 · Draw the S-Tetromino
- The S-tetromino has a stepped, zig-zag shape.
- Draw cubes side-by-side, then draw another pair of cubes shifted by one unit to the next level.
Step 8 · Draw the Z-Tetromino
- The Z-tetromino is the mirror image of the S-tetromino.
- Draw cubes side-by-side, then attach the next pair of cubes shifted in the opposite direction.
All standard tetromino shapes (I, O, T, L, J, S, and Z) can be drawn on isometric paper by combining unit cubes along the isometric grid axes.
- Ignoring Isometric Grid Angles: Drawing edges horizontally instead of following the , , and dot lines breaks the 3D perspective.
- Hidden Edges: Drawing interior edges between connected cubes that share a face; only outer, visible boundary edges should be drawn.
- Confusing Chiral Pairs: Confusing mirror shapes like L vs. J or S vs. Z, which differ by the direction in which the offset cubes attach.
