Question 9

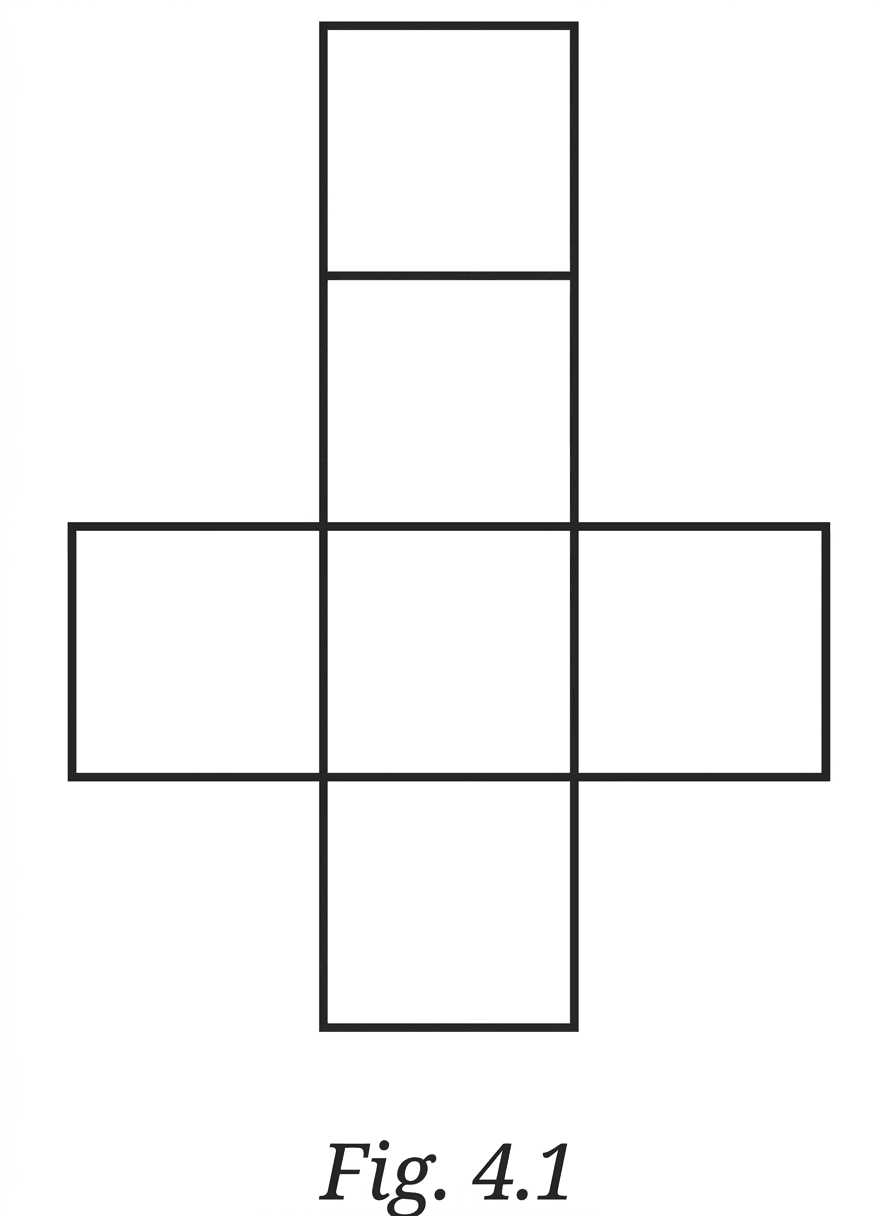

Visualise how it can be folded to form a cube.

Solution

Understand the Question

A cube has $6$ identical square faces, $12$ edges, and $8$ vertices.
To visualize how a $2\text{D}$ $2 D$ net folds into a $3\text{D}$ $3 D$ cube:
1. Choose one square to act as the base (bottom face).
2. Fold the four directly adjacent squares upward at $90^\circ$ along their shared edges to form the side faces (left, right, front, back).
3. Fold the remaining attached square over to form the top face opposite the base.

Step 1 · Label the Squares of the Net

Diagram 1

Let us label the six squares in the net:

Center square ( $\text{X}$ ): Middle square of the horizontal row.
Left square ( $\text{A}$ ): Directly to the left of $\text{X}$ .
Right square ( $\text{B}$ ): Directly to the right of $\text{X}$ .
Middle-top square ( $\text{K}$ ): Directly above $\text{X}$ .
Topmost square ( $\text{L}$ ): Directly above $\text{K}$ .
Bottom square ( $\text{M}$ ): Directly below $\text{X}$ .

Step 2 · Fold the Side Faces Around the Base

Take square $\text{X}$ as the base (bottom face) of the cube:

Fold square $\text{A}$ upward along the left edge of $\text{X}$ to form the left face.
Fold square $\text{B}$ upward along the right edge of $\text{X}$ to form the right face.

Step 3 · Fold the Front, Top, and Back Faces

Fold square $\text{K}$ upward along the top edge of $\text{X}$ to form the front face.
Fold square $\text{L}$ at $90^\circ$ along the top edge of $\text{K}$ to cover the top and form the top face (opposite base $\text{X}$ ).
Fold square $\text{M}$ upward along the bottom edge of $\text{X}$ to form the back face.

All $6$ faces meet at right angles along their edges to form a closed cube.

Answer

Taking the central square $\text{X}$ as the base:

Square $\text{A}$ folds up to become the left face.
Square $\text{B}$ folds up to become the right face.
Square $\text{K}$ folds up to become the front face.
Square $\text{L}$ folds over to become the top face.
Square $\text{M}$ folds up to become the back face.

Common Mistakes

Overlapping Faces: Folding opposite flaps in the wrong direction or failing to recognize that square $\text{L}$ and square $\text{X}$ are opposite faces.
Base Selection: Forgetting to fix a base face first, which makes it harder to mentally track the $3\text{D}$ orientation of the remaining $5$ faces.
