Question 37
Find another object that makes the same projection as that of a given cone.
We need to find an object that shows the same 2D shapes when viewed from different directions as a cone does.
Step 1 — Understand Cone's Projections
Let us first identify the main projections of a cone. A projection is the 2D shape we see when we look at a 3D object from a specific direction.

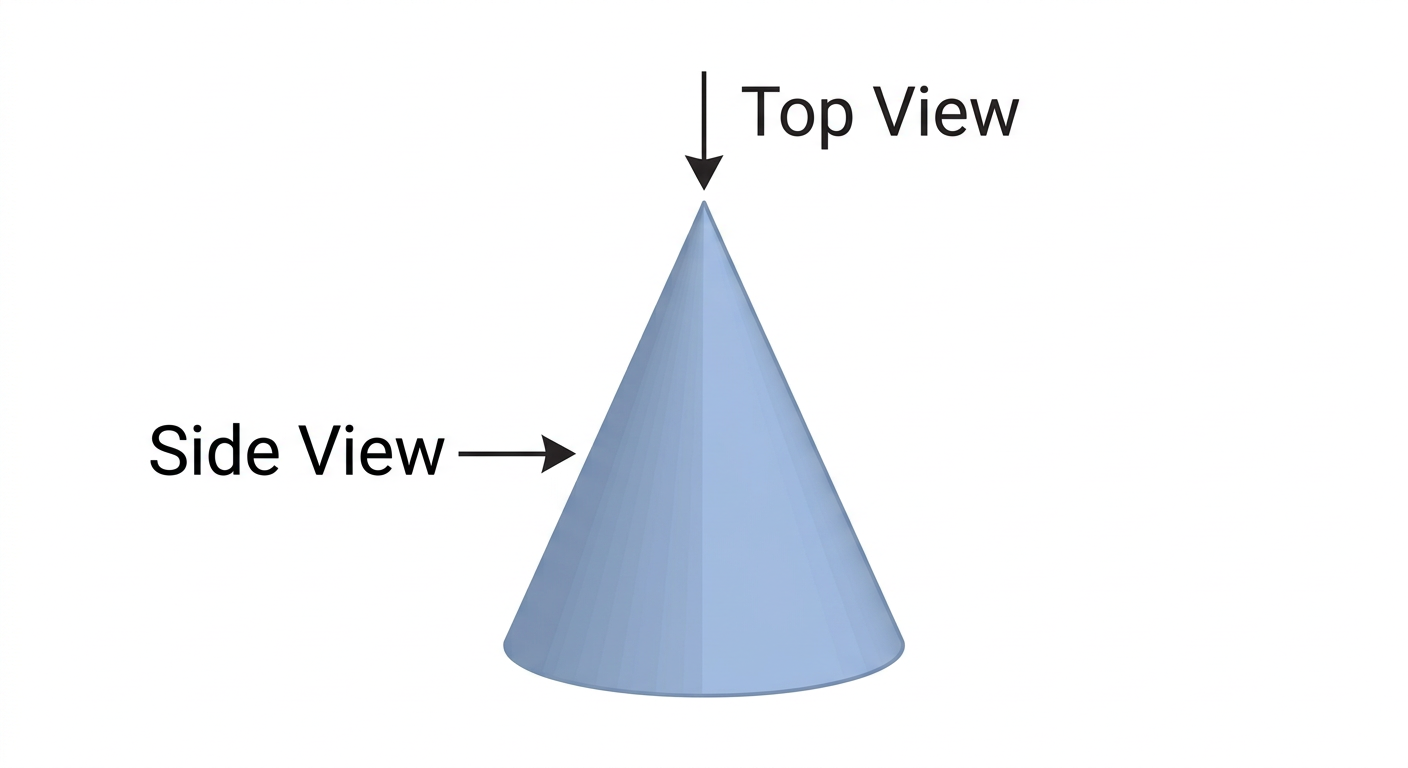

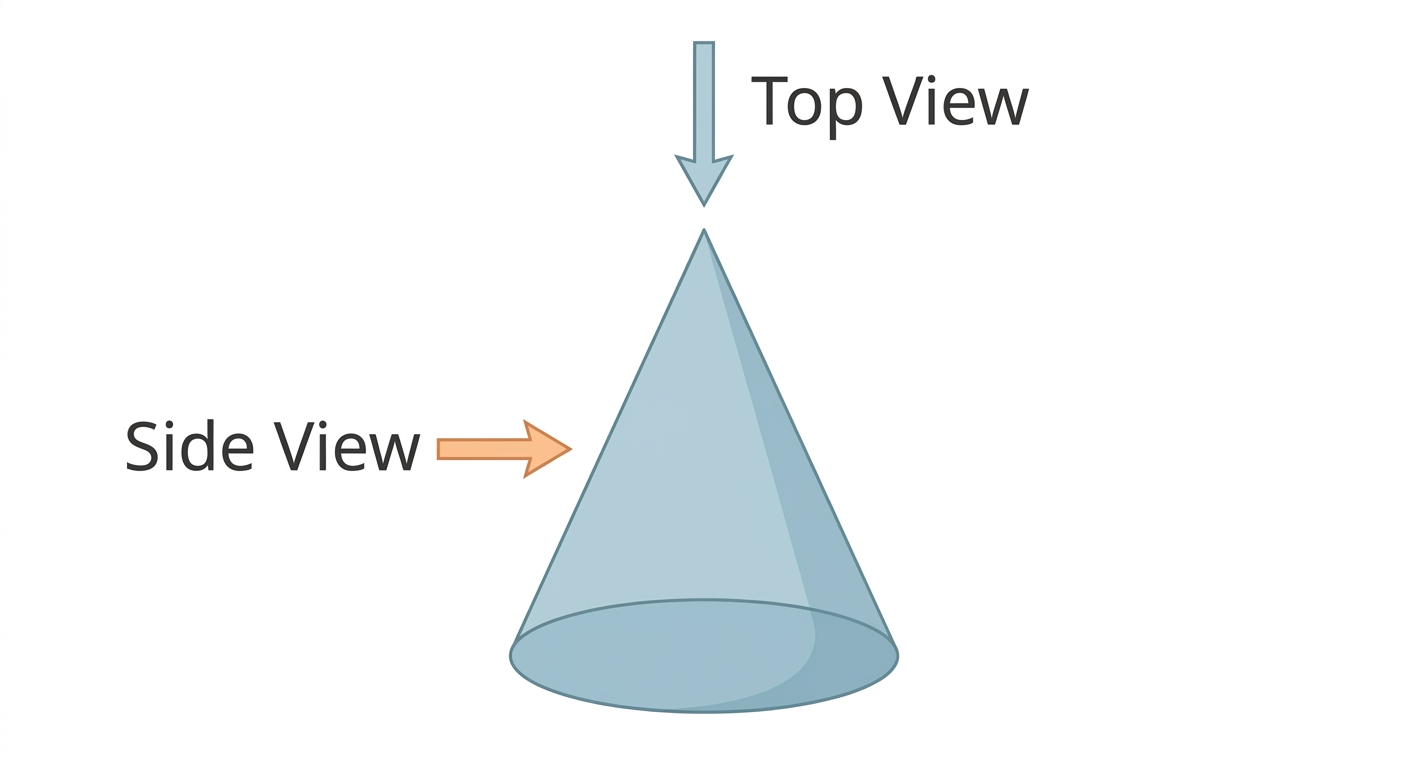

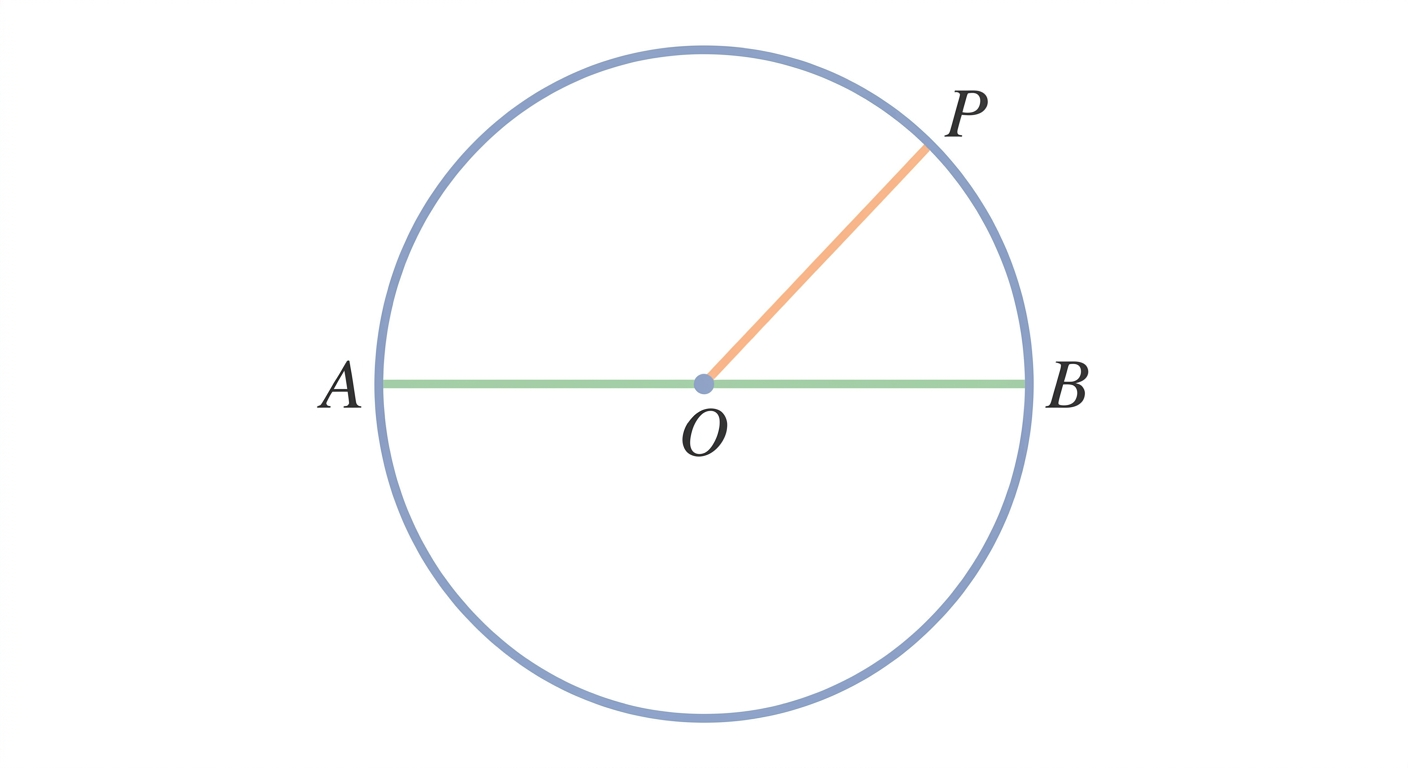

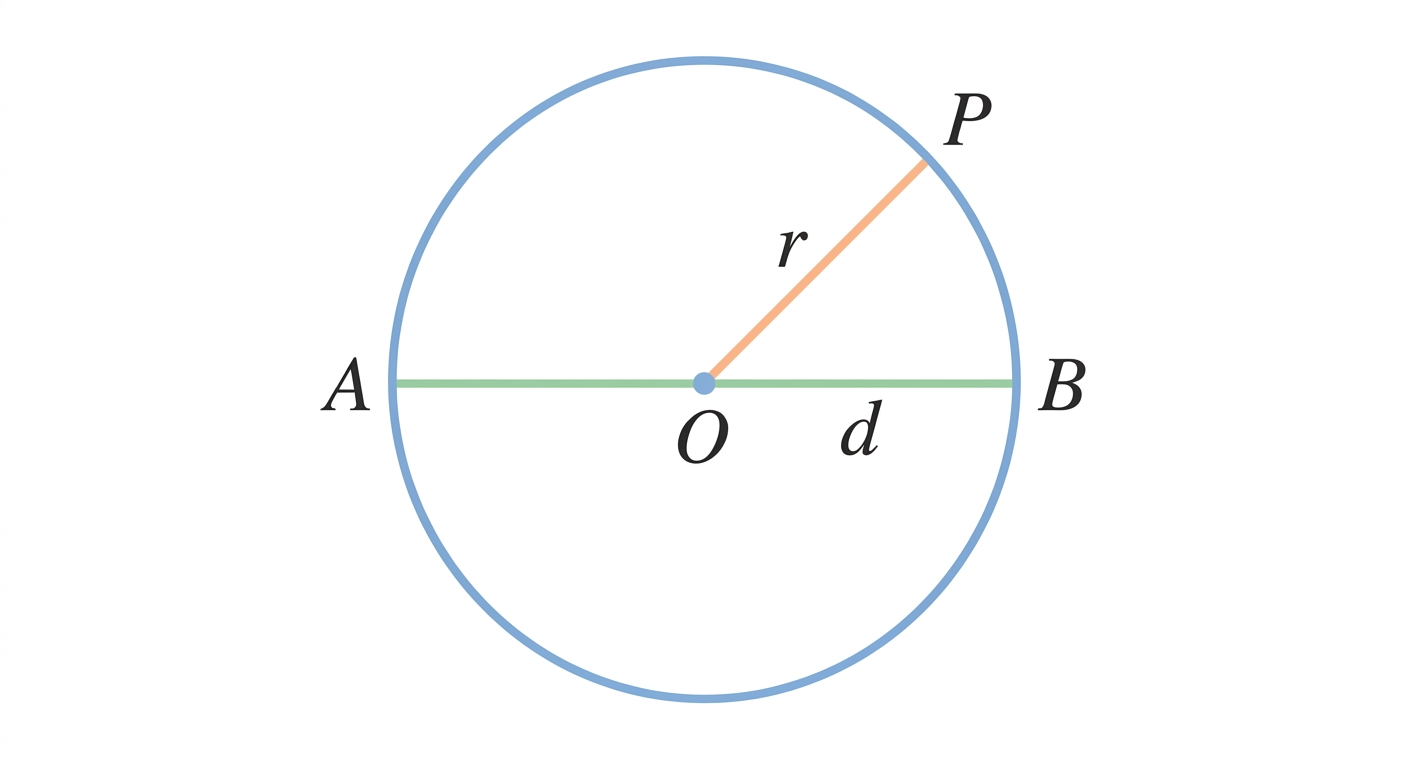

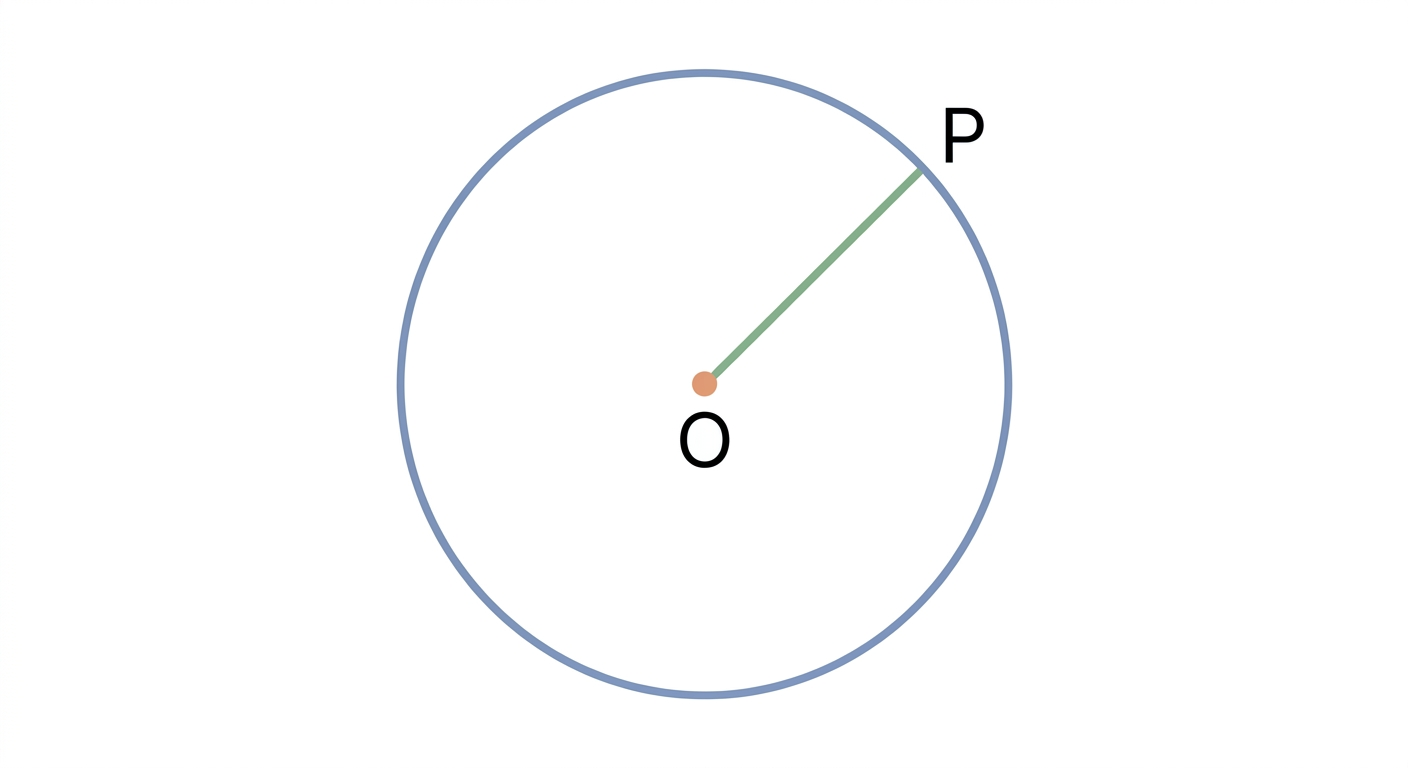

When we look at a cone from directly above (top view), we see its circular base. So, the top projection of a cone is a circle.
When we look at a cone from the side (side view), we see its triangular shape. So, the side projection of a cone is a triangle.
Step 2 — Find Another Object with Similar Projections
We are looking for another object that also produces a circle from one view and a triangle from another. Let us consider a pyramid with a regular polygonal base. A regular polygon has all its sides and angles equal. Examples are a square, a pentagon, or a hexagon.
When we look at this pyramid from directly above (top view), we see its polygonal base. For example, if the base is a square, the top projection is a square. This is not a circle.
However, consider what happens if the number of sides of the regular polygonal base becomes very large. As the number of sides of a regular polygon increases, its shape becomes more and more like a circle. Imagine a polygon with 100 sides or 1000 sides; it would look almost exactly like a circle.
So, a pyramid with a regular polygonal base having a very large number of sides would have a top projection that is almost a circle. Now, let us look at this pyramid from the side (side view). The side view of any pyramid (with a regular polygonal base) is always a triangle. This perfectly matches the side projection of a cone.
Therefore, a pyramid with a regular polygonal base with a very large number of sides will have projections that are very similar to those of a cone. It will have a top view that is almost a circle and a side view that is a triangle.
Answer
A pyramid with a regular polygonal base having a very large number of sides.
