Question 23
If we think that a certain path is the shortest, how can we be sure that it truly is, among all the infinite possibilities?
The shortest path between two points is always a straight line in a flat space.
Step 1 — Straight Line Principle
Let us consider two points, A and B. We want to find the shortest path between them.
The straight line connecting A and B is the shortest possible path. Any other path between A and B will be longer.
We can be sure of this because of the triangle inequality theorem. This theorem is a fundamental rule in geometry.
It states that the sum of the lengths of any two sides of a triangle is always greater than the length of the third side.

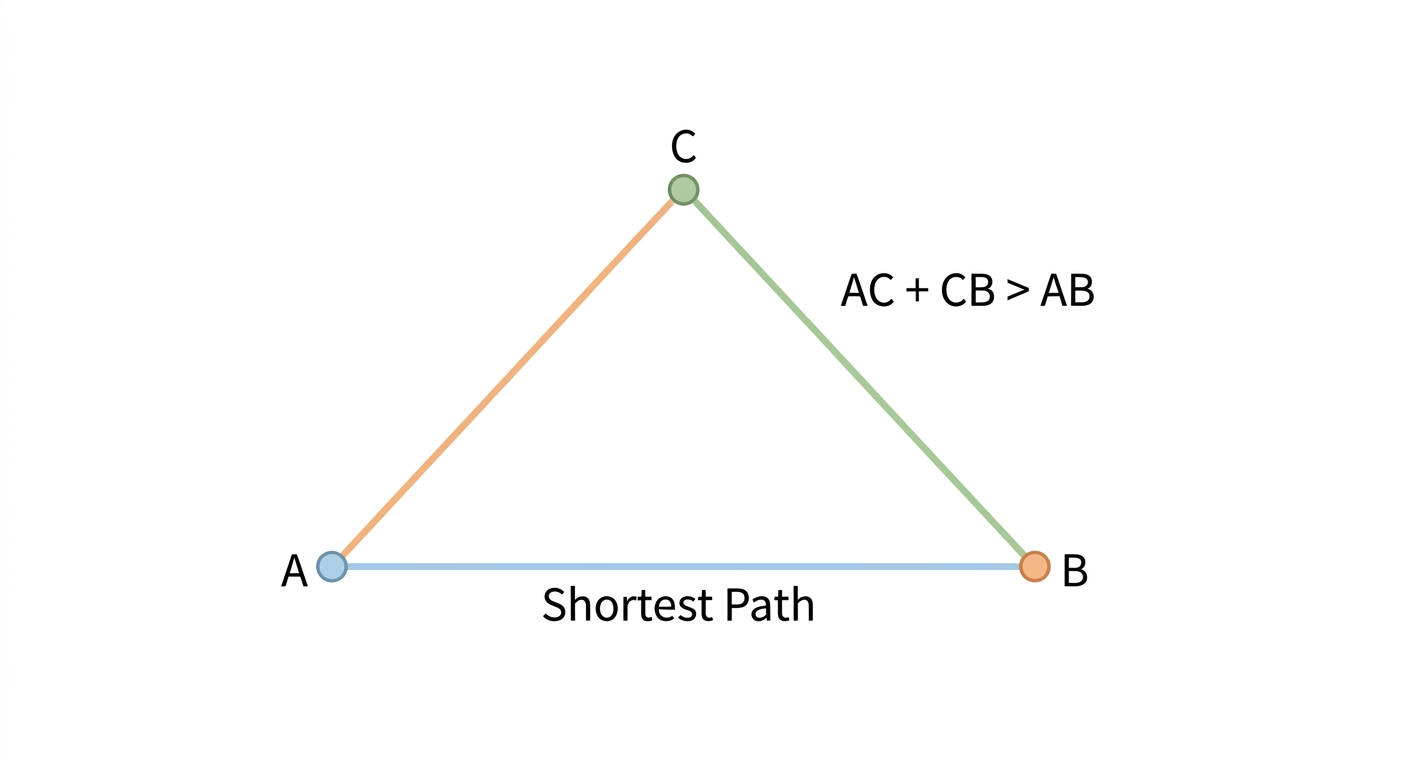

Let us imagine a point C that is not on the straight line AB. The path from A to C, and then from C to B, forms two sides of a triangle ABC. The direct path from A to B is the third side of this triangle.

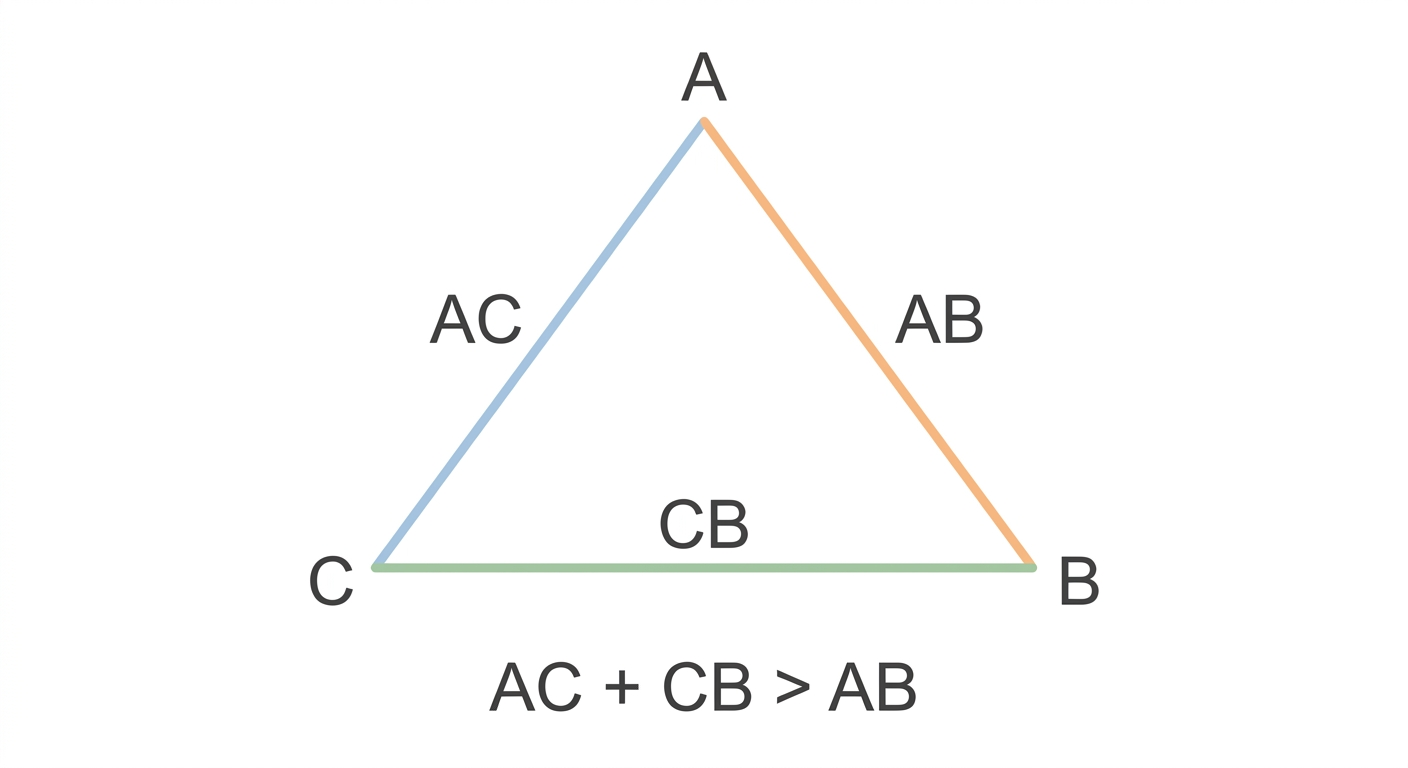

The triangle inequality tells us:
This means that taking any detour through point C makes the path longer than the direct straight line. So, the straight line is always the shortest path in a flat space.
Step 2 — Paths on Surfaces
Sometimes, we cannot take a straight line through space. The path must stay on a surface.
Imagine an ant walking on the surface of a box. It wants to go from one corner to another. The shortest path is not a straight line through the inside of the box. It must stay on the box's surface.
To find the shortest path on a solid's surface, we use a technique called unfolding.
Unfolding means we flatten the surface of the solid into a 2D (two-dimensional) plane. For example, we can cut open a box and lay it flat.
On this flat, unfolded surface, the shortest path between the two points is a straight line. We draw this straight line on the unfolded shape.
Then, we can fold the solid back into its original 3D shape. The straight line we drew on the flat surface will now be the shortest path on the solid's surface.
This method allows us to be sure that we have found the shortest path, even on complex surfaces. We transform the problem into a simpler one where the straight line principle applies.
