Question 1

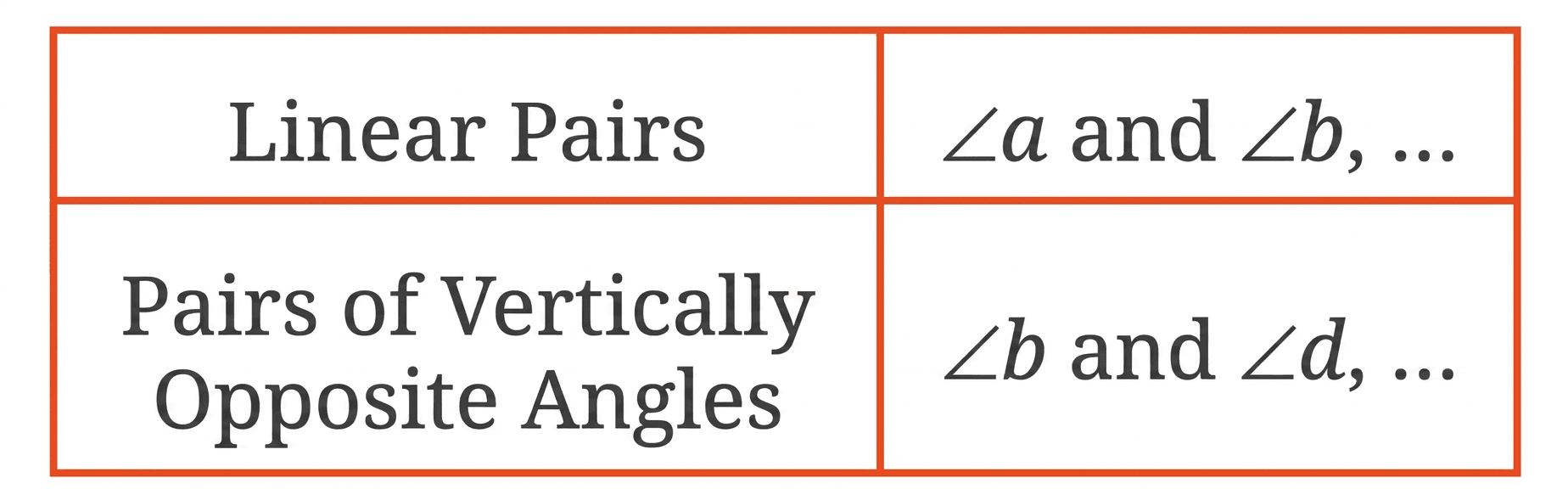

List all the linear pairs and vertically opposite angles you observe in Fig. 5.3:

Question diagram 1Question diagram 2
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • Linear Pair: A pair of adjacent angles whose non-common arms form a straight line. Their sum is always 180∘180^\circ.
  • Vertically Opposite Angles: Pairs of non-adjacent angles formed directly opposite each other when two straight lines intersect. They are always equal in measure.

Step 1 · Identify Linear Pairs

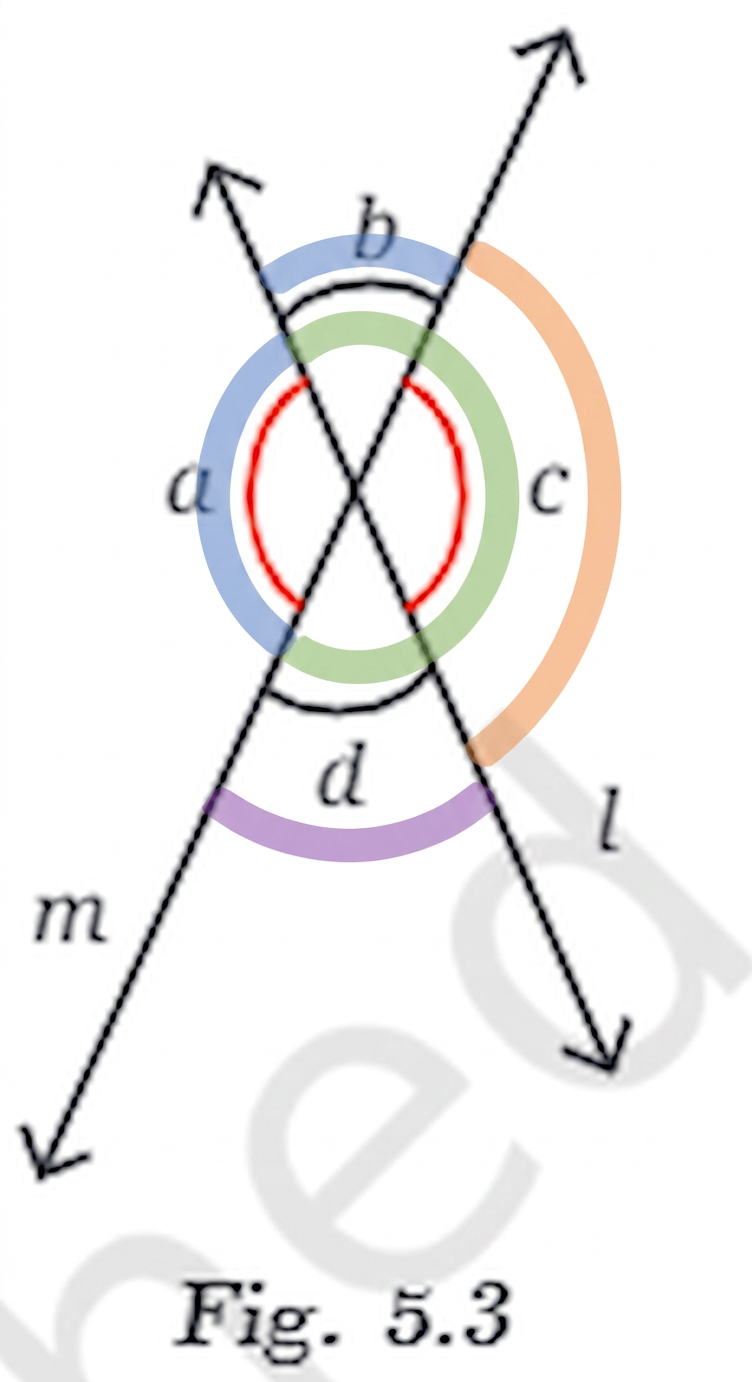

A linear pair consists of two adjacent angles that lie on a straight line.Diagram 1

From the figure, the pairs of adjacent angles forming a straight line are:

  • ∠a\angle a and ∠b\angle b (on line mm)
  • ∠b\angle b and ∠c\angle c (on line ll)
  • ∠c\angle c and ∠d\angle d (on line mm)
  • ∠d\angle d and ∠a\angle a (on line ll)

Step 2 · Identify Vertically Opposite Angles

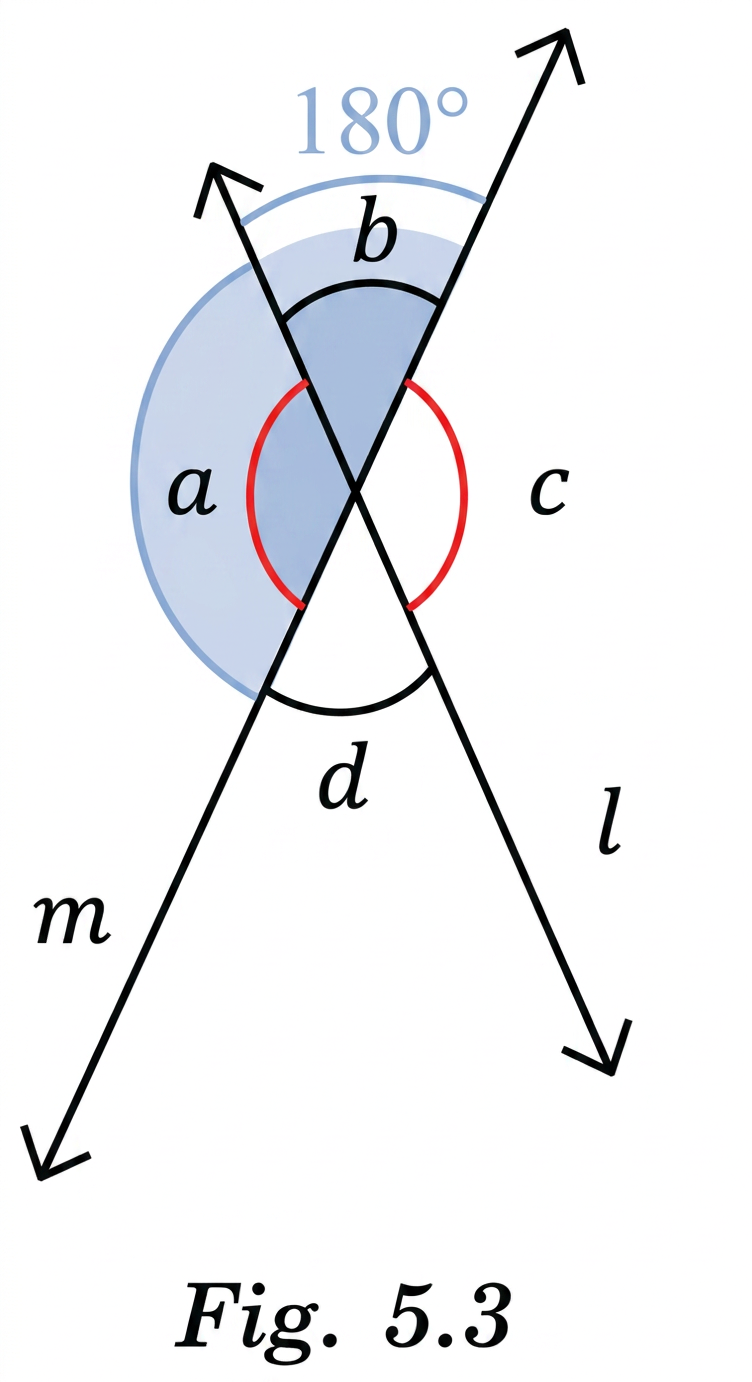

Vertically opposite angles are directly opposite to each other at the point of intersection of two lines.Diagram 2

From the figure, the vertically opposite pairs are:

  • ∠a\angle a and ∠c\angle c
  • ∠b\angle b and ∠d\angle d
Answer
  • Linear Pairs: ∠a\angle a and ∠b\angle b, ∠b\angle b and ∠c\angle c, ∠c\angle c and ∠d\angle d, ∠d\angle d and ∠a\angle a
  • Vertically Opposite Angles: ∠a\angle a and ∠c\angle c, ∠b\angle b and ∠d\angle d
Common Mistakes
  • Confusing Linear Pairs with Opposite Angles: Linear pairs are adjacent (side-by-side) angles on a line summing to 180∘180^\circ, whereas vertically opposite angles lie directly across the vertex from each other.
  • Missing Pairs: Forgetting that an intersection of two lines produces four linear pairs in total (each angle forms a pair with each of its two immediate neighbors).
