Question 10

In the figures below, what angles do xx and yy stand for?

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • Angle Sum Property: The sum of angles in any triangle is always 180∘180^\circ.
  • Parallel Lines and Transversals:
    • Corresponding angles are equal when two parallel lines are cut by a transversal.
    • Alternate interior angles are equal when two parallel lines are cut by a transversal.
  • Vertically Opposite Angles: When two lines intersect, the vertically opposite angles are equal.

(i) Find the angles xx and yy in the first figure.

Step 1 · Find Angle xx

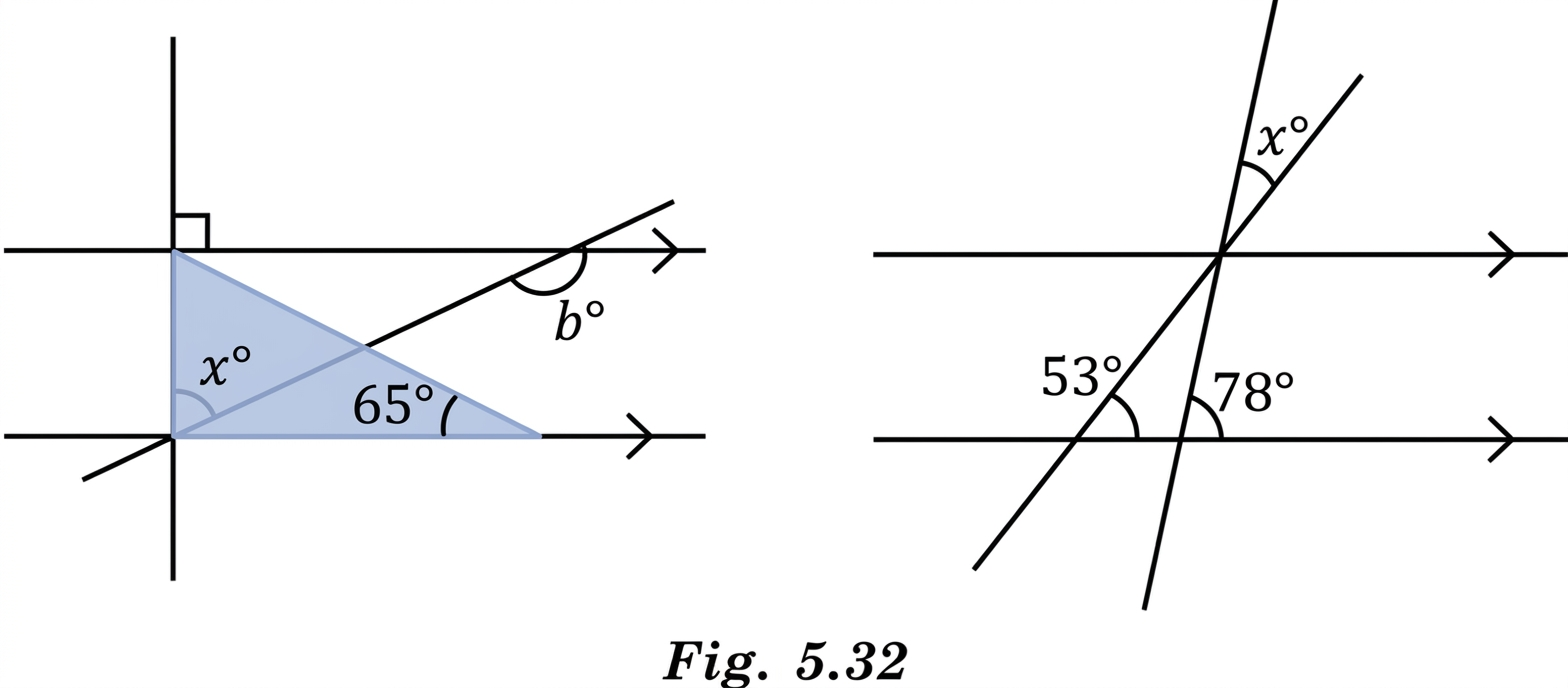

Diagram 1

The vertical line meets the parallel lines at a right angle (90∘90^\circ).

Using the angle sum property in the bottom triangle:

x∘+65∘+90∘=180∘x∘+155∘=180∘x∘=180∘−155∘x=25∘\begin{aligned} x^\circ + 65^\circ + 90^\circ &= 180^\circ \\ x^\circ + 155^\circ &= 180^\circ \\ x^\circ &= 180^\circ - 155^\circ \\ x &= 25^\circ \end{aligned}

Step 2 · Find Angle yy

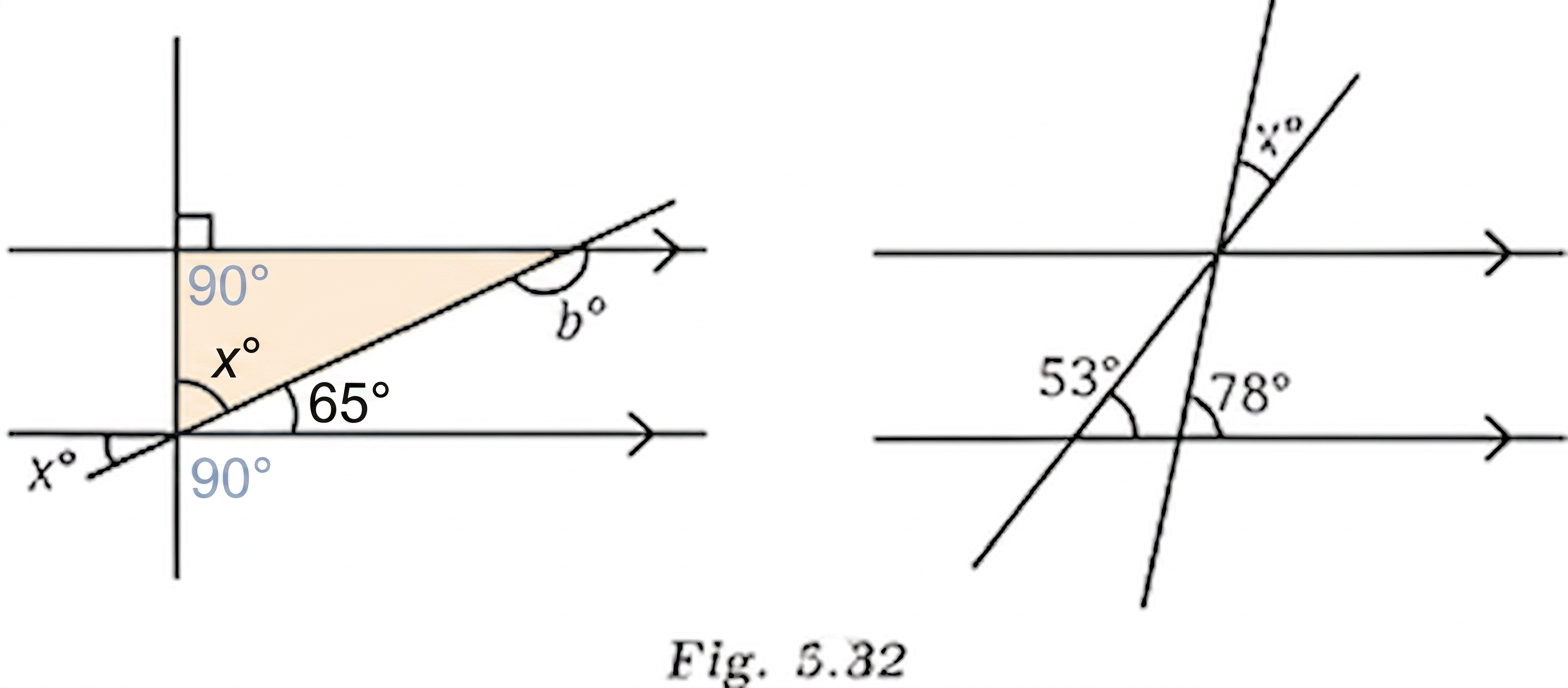

Diagram 2

The angle formed at the bottom line is the sum of 90∘90^\circ and 65∘65^\circ: 90∘+65∘=155∘90^\circ + 65^\circ = 155^\circ

Since corresponding angles between parallel lines are equal: y=155∘y = 155^\circ

Answer

(i) x=25∘,  y=155∘x = 25^\circ,\; y = 155^\circ

(ii) Find the angle xx in the second figure.

Step 1 · Find Angle xx

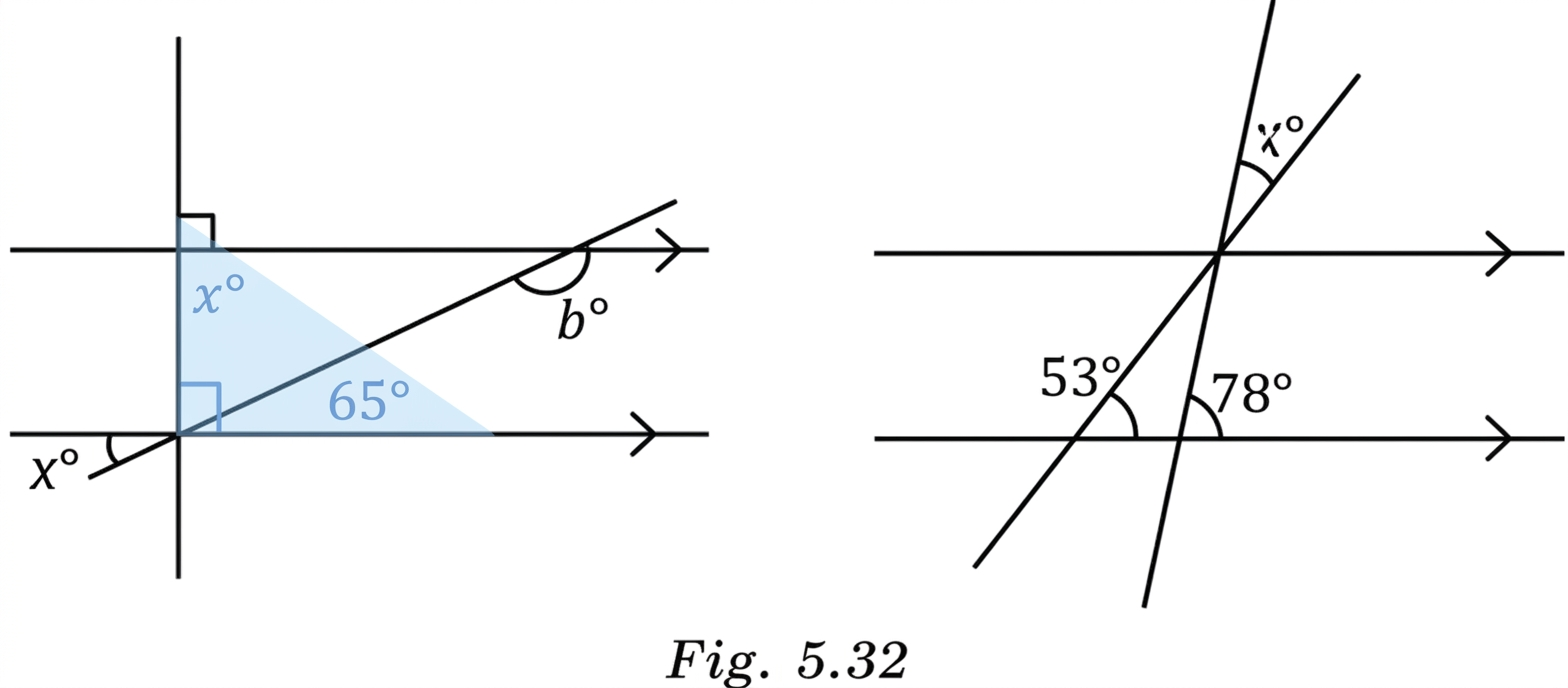

Diagram 3

Using alternate interior angles for both transversals: α1=53∘\alpha_1 = 53^\circ α2=78∘\alpha_2 = 78^\circ

The angle between the two transversal lines is:

αx=α2−α1=78∘−53∘=25∘\begin{aligned} \alpha_x &= \alpha_2 - \alpha_1 \\ &= 78^\circ - 53^\circ \\ &= 25^\circ \end{aligned}

Since vertically opposite angles are equal: x=αx=25∘x = \alpha_x = 25^\circ

Answer

(ii) x=25∘x = 25^\circ

Common Mistakes
  • Confusing Corresponding and Alternate Angles: Always check whether the angles lie on the same relative side of the transversal (corresponding) or on opposite interior sides (alternate interior).
  • Missing the Composite Angle: In the first figure, remember that the total angle on the bottom parallel line is the sum of the right angle (90∘90^\circ) and the given angle (65∘65^\circ).
