Question 11

In Fig. 5.33, ∠ABC=45∘\angle ABC = 45^\circ and ∠IKJ=78∘\angle IKJ = 78^\circ. Find angles ∠GEH\angle GEH, ∠HEF\angle HEF, ∠FED\angle FED

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • We are given parallel lines intersected by two transversal lines, forming several angle relationships.
  • Vertically opposite angles are equal at any intersection of two straight lines.
  • Corresponding angles are equal when two parallel lines are cut by a transversal.
  • The sum of all angles forming a straight line at a single point is 180∘180^\circ.
  • By finding ∠GEH\angle GEH and ∠FED\angle FED using angle relationships with parallel lines, we can determine the remaining angle ∠HEF\angle HEF on the straight line GDGD.

Step 1 · Find ∠GEH\angle GEH and ∠FED\angle FED Using Corresponding Angles

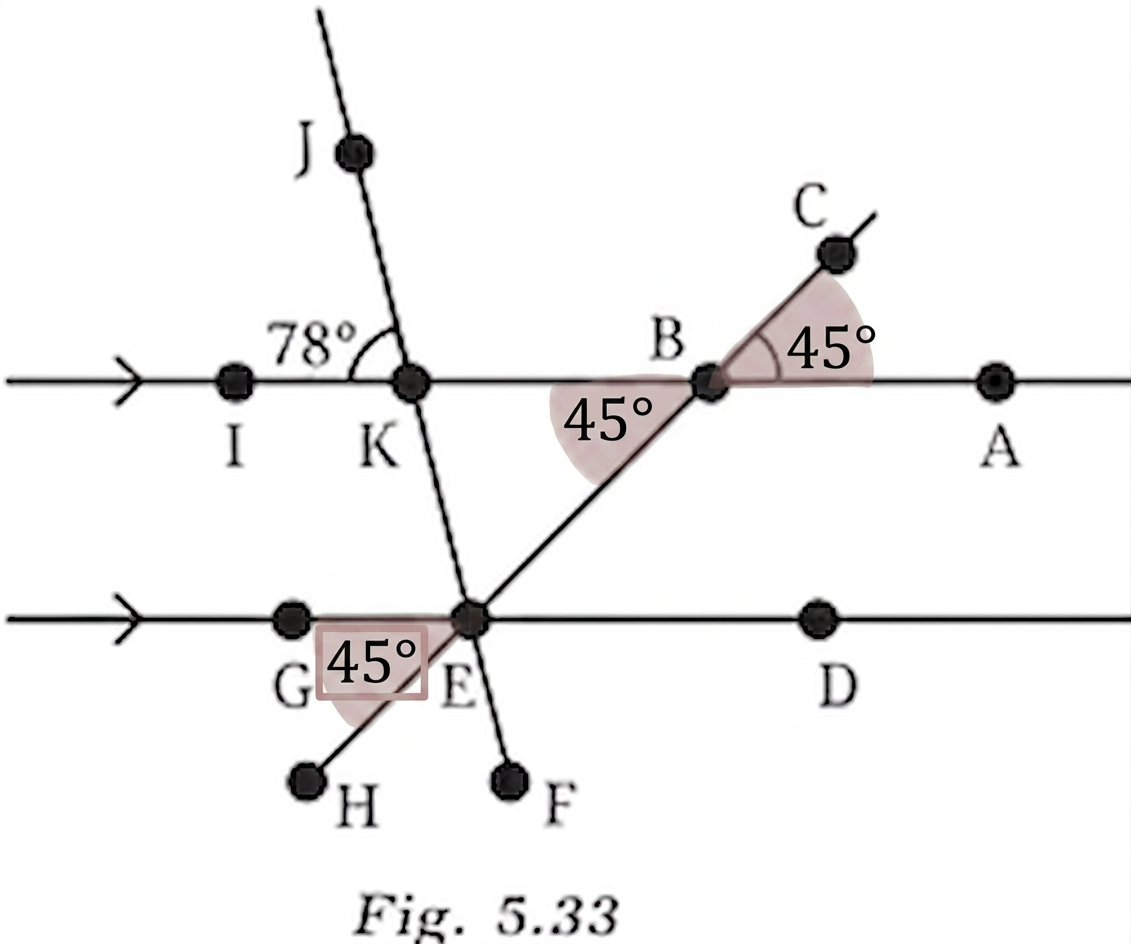

Given lines IA∥GDIA \parallel GD.Diagram 1

For transversal HCHC: ∠KBE=∠ABC=45∘(Vertically opposite angles)\angle KBE = \angle ABC = 45^\circ \quad \text{(Vertically opposite angles)}

Since IA∥GDIA \parallel GD, corresponding angles are equal:

∠GEH=∠KBE=45∘\begin{aligned} \angle GEH &= \angle KBE \\ &= 45^\circ \end{aligned}

For transversal JFJF: ∠BKE=∠IKJ=78∘(Vertically opposite angles)\angle BKE = \angle IKJ = 78^\circ \quad \text{(Vertically opposite angles)}

Since IA∥GDIA \parallel GD, corresponding angles are equal:

∠FED=∠BKE=78∘\begin{aligned} \angle FED &= \angle BKE \\ &= 78^\circ \end{aligned}

Step 2 · Find ∠HEF\angle HEF Using Straight Line Angle Sum

Angles ∠GEH\angle GEH, ∠HEF\angle HEF, and ∠FED\angle FED lie on the straight line GDGD.

Sum of angles on a straight line is 180∘180^\circ: 45∘+78∘=123∘45^\circ + 78^\circ = 123^\circ

∠HEF=180∘−(45∘+78∘)=180∘−123∘=57∘\begin{aligned} \angle HEF &= 180^\circ - (45^\circ + 78^\circ) \\ &= 180^\circ - 123^\circ \\ &= 57^\circ \end{aligned}
Answer

∠GEH=45∘\angle GEH = 45^\circ, ∠HEF=57∘\angle HEF = 57^\circ, and ∠FED=78∘\angle FED = 78^\circ

Common Mistakes
  • Misidentifying Angle Pairs: Confusing corresponding angles with alternate interior angles when identifying relations across parallel lines.
  • Straight Line Sum Error: Forgetting that all three adjacent angles forming the straight line GDGD at point EE must add up to 180∘180^\circ.
