Some Applications of Trigonometry | Exercise 9.1

Question 6

A 1.5 m tall boy is standing at some distance from a 30 m tall building. The angle of elevation from his eyes to the top of the building increases from $30^\circ$ to $60^\circ$ as he walks towards the building. Find the distance he walked towards the building.

Solution

Angle of Elevation: The angle between the horizontal line of sight (from the eyes) and the line looking up to the top of an object. As the boy walks closer, the angle increases from 30° to 60°.

Key setup: The boy's eyes are at 1.5 m height, so the relevant vertical distance is the building height minus the eye level — this is the effective height used in the triangle.

We will use trigonometry to find the horizontal distances from the building at two different points and then find their difference.

Step 1 — Calculate effective height

The angle of elevation is measured from the boy's eyes, not from the ground. So we only need the height above his eye level.

First, let's find the height of the building from the boy's eye level. The building is 30 m tall. The boy is 1.5 m tall. So, we subtract the boy's height from the building's height.

$\text{Effective height} = 30 \text{ m} - 1.5 \text{ m}$

$= 28.5 \text{ m}$

$\boxed{28.5 \text{ m}}$

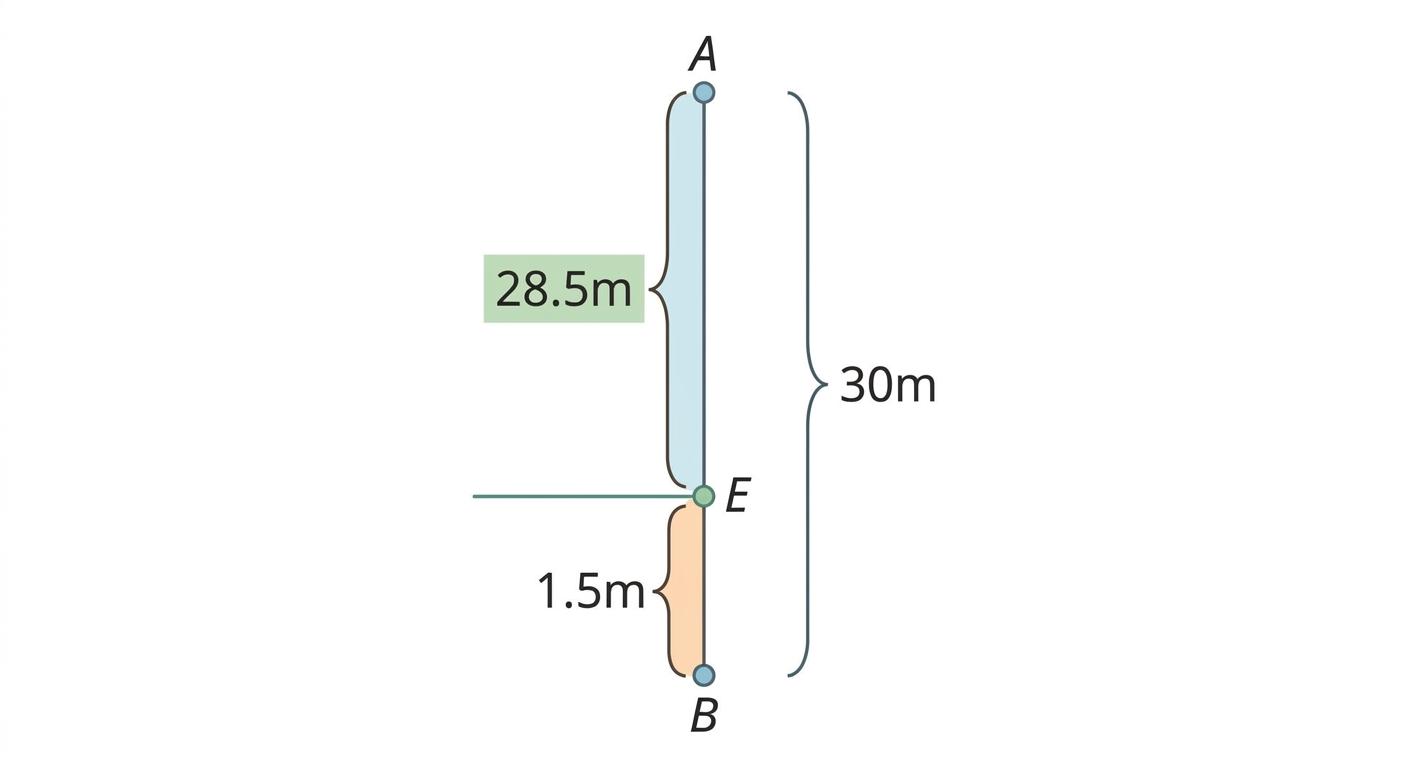

Diagram 1

Step 2 — Find initial distance

Let's call the initial distance CE as $x_1$ . Tangent Ratio: $\tan\theta = \dfrac{\text{Opposite}}{\text{Adjacent}}$ — used here because we know the height (opposite) and need the ground distance (adjacent).

We use the right-angled triangle AEC. The angle of elevation is $30^\circ$ . We know the opposite side AE is 28.5 m. We need to find the adjacent side CE.

$\tan(\text{angle}) = \frac{\text{opposite}}{\text{adjacent}}$

$\tan(30^\circ) = \frac{AE}{CE}$

$\frac{1}{\sqrt{3}} = \frac{28.5}{x_1}$

$x_1 = 28.5 \times \sqrt{3}$

$\boxed{28.5\sqrt{3} \text{ m}}$

Step 3 — Find final distance

Now, let's call the final distance DE as $x_2$ . We use the right-angled triangle AED. The new angle of elevation is $60^\circ$ . The opposite side AE is still 28.5 m. We need to find the adjacent side DE.

$\tan(\text{angle}) = \frac{\text{opposite}}{\text{adjacent}}$

$\tan(60^\circ) = \frac{AE}{DE}$

$\sqrt{3} = \frac{28.5}{x_2}$

$x_2 = \frac{28.5}{\sqrt{3}}$

Rationalizing: Multiply by $\frac{\sqrt{3}}{\sqrt{3}}$ to clear the surd from the denominator.

$x_2 = \frac{28.5 \times \sqrt{3}}{3}$

$x_2 = 9.5 \times \sqrt{3}$

$\boxed{9.5\sqrt{3} \text{ m}}$

Step 4 — Calculate distance walked

Since $x_1 > x_2$ (the boy is closer to the building at the second position), the distance walked = $x_1 - x_2$ .

The boy walked from his initial position to his final position. This distance is the difference between $x_1$ and $x_2$ . Let's calculate the distance walked.

$\text{Distance walked} = x_1 - x_2$

$= 28.5\sqrt{3} - 9.5\sqrt{3}$

$= (28.5 - 9.5)\sqrt{3}$

$= 19\sqrt{3}$

We can use $\sqrt{3} \approx 1.732$ .

$= 19 \times 1.732$

$= 32.908$

$\boxed{32.91 \text{ m (approx)}}$

Answer

The distance he walked towards the building is approximately 32.91 m.
