8. A statue, 1.6 m tall, stands on the top of a pedestal. From a point on the ground, the angle of elevation of the top of the statue is and from the same point the angle of elevation of the top of the pedestal is . Find the height of the pedestal.

Some Applications of Trigonometry | Exercise 9.1

Question 8

A statue, 1.6 m tall, stands on the top of a pedestal. From a point on the ground, the angle of elevation of the top of the statue is $60^\circ$ and from the same point the angle of elevation of the top of the pedestal is $45^\circ$ . Find the height of the pedestal.

Solution

Setup: A statue stands on top of a pedestal. From a single ground point D, the angle of elevation to the top of the pedestal is 45° and to the top of the statue is 60°. Both angles form right-angled triangles with the same base AD.

Angle of Elevation: The angle between the horizontal and the line of sight looking up to a point.

Tangent Ratio: $\tan\theta = \dfrac{\text{Opposite}}{\text{Adjacent}}$ — used to relate vertical heights to the horizontal ground distance.

We will use trigonometric ratios to find the height of the pedestal.

Step 1 — Set up equations

Let the height of the pedestal be $AB = h$ meters. Let the statue on top of the pedestal be $BC = 1.6\text{ m}$ tall. Let $D$ be the point on the ground from which the angles of elevation are measured, and let the distance $AD = x$ meters.

The total height of the pedestal and the statue is: $AC = AB + BC = h + 1.6$

In the right-angled triangle $\triangle ABD$ : $\tan 45^\circ = \frac{AB}{AD}$ $1 = \frac{h}{x}$ $x = h \quad \text{--- (1)}$

In the right-angled triangle $\triangle ACD$ : $\tan 60^\circ = \frac{AC}{AD}$ $\sqrt{3} = \frac{h + 1.6}{x} \quad \text{--- (2)}$

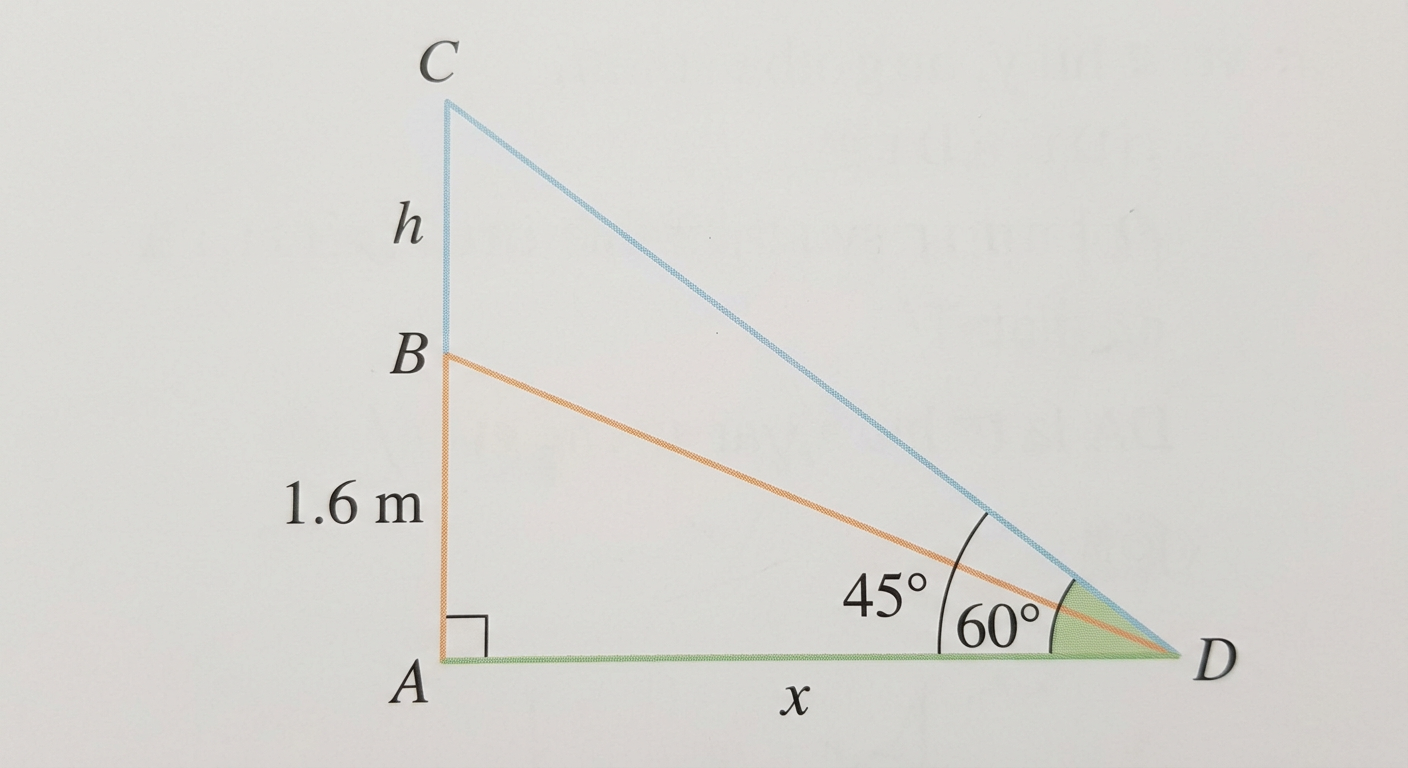

Diagram 1

Step 2 — Solve for the height of the pedestal

Substitute the value of $x$ from equation (1) into equation (2): $\sqrt{3} = \frac{h + 1.6}{h}$

Multiply both sides by $h$ : $\sqrt{3}h = h + 1.6$

Rearrange the terms to group $h$ on one side: $\sqrt{3}h - h = 1.6$

Factor out $h$ : $h(\sqrt{3} - 1) = 1.6$

Solve for $h$ : $h = \frac{1.6}{\sqrt{3} - 1}$

Rationalize the denominator by multiplying the numerator and denominator by $(\sqrt{3} + 1)$ : $h = \frac{1.6(\sqrt{3} + 1)}{(\sqrt{3} - 1)(\sqrt{3} + 1)}$

Apply the algebraic identity $(a-b)(a+b) = a^2 - b^2$ to the denominator: $h = \frac{1.6(\sqrt{3} + 1)}{(\sqrt{3})^2 - 1^2}$ $h = \frac{1.6(\sqrt{3} + 1)}{3 - 1}$ $h = \frac{1.6(\sqrt{3} + 1)}{2}$

Simplify the expression: $h = 0.8(\sqrt{3} + 1)$

If we substitute the value of $\sqrt{3} \approx 1.732$ : $h = 0.8(1.732 + 1)$ $h = 0.8(2.732)$

$h \approx 2.19\text{ m}$

Answer

The height of the pedestal is $0.8(\sqrt{3} + 1)\text{ m}$ (or approximately $2.19\text{ m}$ ).
