Some Applications of Trigonometry | Exercise 9.1

Question 9

The angle of elevation of the top of a building from the foot of the tower is $30^\circ$ and the angle of elevation of the top of the tower from the foot of the building is $60^\circ$ . If the tower is 50 m high, find the height of the building.

Solution

Understand the Question

Let $\text{CD}$ represent the vertical tower of height $50\text{ m}$ and $\text{AB}$ represent the vertical building of height $h$ .
The horizontal ground distance between the building and the tower is $\text{BD}$ .
From the foot of the building (point $\text{B}$ ), the angle of elevation to the top of the tower ( $\text{C}$ ) is $60^\circ$ .
From the foot of the tower (point $\text{D}$ ), the angle of elevation to the top of the building ( $\text{A}$ ) is $30^\circ$ .
We use $\tan\theta = \dfrac{\text{Opposite}}{\text{Adjacent}}$ in $\Delta \text{CBD}$ to find the shared base distance $\text{BD}$ , and then in $\Delta \text{ABD}$ to determine the building's height $\text{AB}$ .

Step 1 · Find the Distance Between the Building and Tower

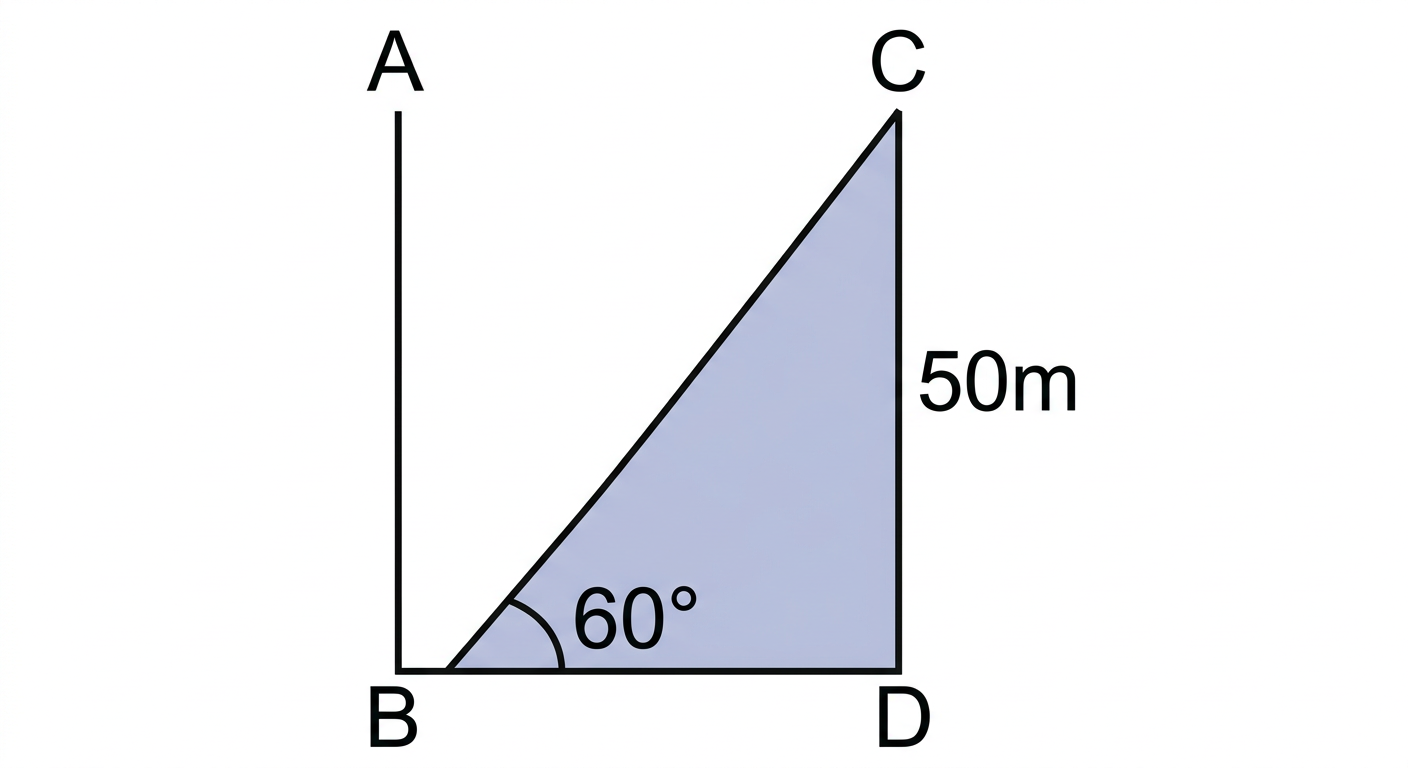

Let $\text{CD} = 50\text{ m}$ be the tower and $\text{AB}$ be the building on the horizontal ground $\text{BD}$ . Diagram 1

In right $\Delta \text{CBD}$

\begin{aligned} \tan 60^\circ &= \dfrac{\text{CD}}{\text{BD}} \\[0.6em] \sqrt{3} &= \dfrac{50}{\text{BD}} \\[0.6em] \text{BD} &= \dfrac{50}{\sqrt{3}} \end{aligned}

Step 2 · Find the Height of the Building

In right $\Delta \text{ABD}$

\begin{aligned} \tan 30^\circ &= \dfrac{\text{AB}}{\text{BD}} \\[0.6em] \dfrac{1}{\sqrt{3}} &= \dfrac{\text{AB}}{\dfrac{50}{\sqrt{3}}} \\[1.1em] \text{AB} &= \dfrac{1}{\sqrt{3}} \times \dfrac{50}{\sqrt{3}} \\[0.6em] \text{AB} &= \dfrac{50}{3} = 16\dfrac{2}{3} \approx 16.67\text{ m} \end{aligned}

Answer

$\dfrac{50}{3}\text{ m}$ (or $16\dfrac{2}{3}\text{ m} \approx 16.67\text{ m}$ )

Common Mistakes

Swapping the Angles of Elevation: Assigning $60^\circ$ to the building and $30^\circ$ to the tower. The taller structure (tower) must subtend the larger angle of elevation ( $60^\circ$ ) over the same horizontal distance.
Fraction Multiplication Error: Incorrectly computing $\dfrac{50}{\sqrt{3}} \times \dfrac{1}{\sqrt{3}}$ as $50$ instead of $\dfrac{50}{3}$ .
