Some Applications of Trigonometry | Exercise 9.1

Question 11

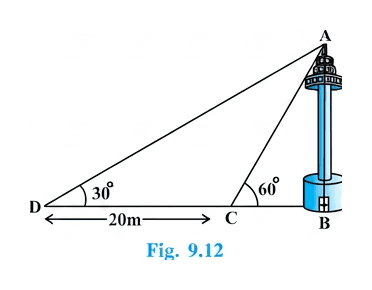

A TV tower stands vertically on a bank of a canal. From a point on the other bank directly opposite the tower, the angle of elevation of the top of the tower is $60^\circ$ . From another point 20 m away from this point on the line joing this point to the foot of the tower, the angle of elevation of the top of the tower is $30^\circ$ (see Fig. 9.12). Find the height of the tower and the width of the canal.

Solution

Understand the Question

Let $AB = h$ be the height of the vertical TV tower and $BC = x$ be the width of the canal.
Point $C$ is on the opposite bank with angle of elevation $\angle ACB = 60^\circ$ .
Point $D$ is $20\text{ m}$ further away on the line joining $C$ to the foot of the tower, so the total base length $BD = x + 20$ with angle of elevation $\angle ADB = 30^\circ$ .
Using the trigonometric ratio $\tan \theta = \dfrac{\text{Opposite}}{\text{Adjacent}}$ in right-angled triangles $\Delta ABC$ and $\Delta ABD$ , we form two equations to solve for $h$ and $x$ .

Step 1 · Form equation from $\Delta ABC$

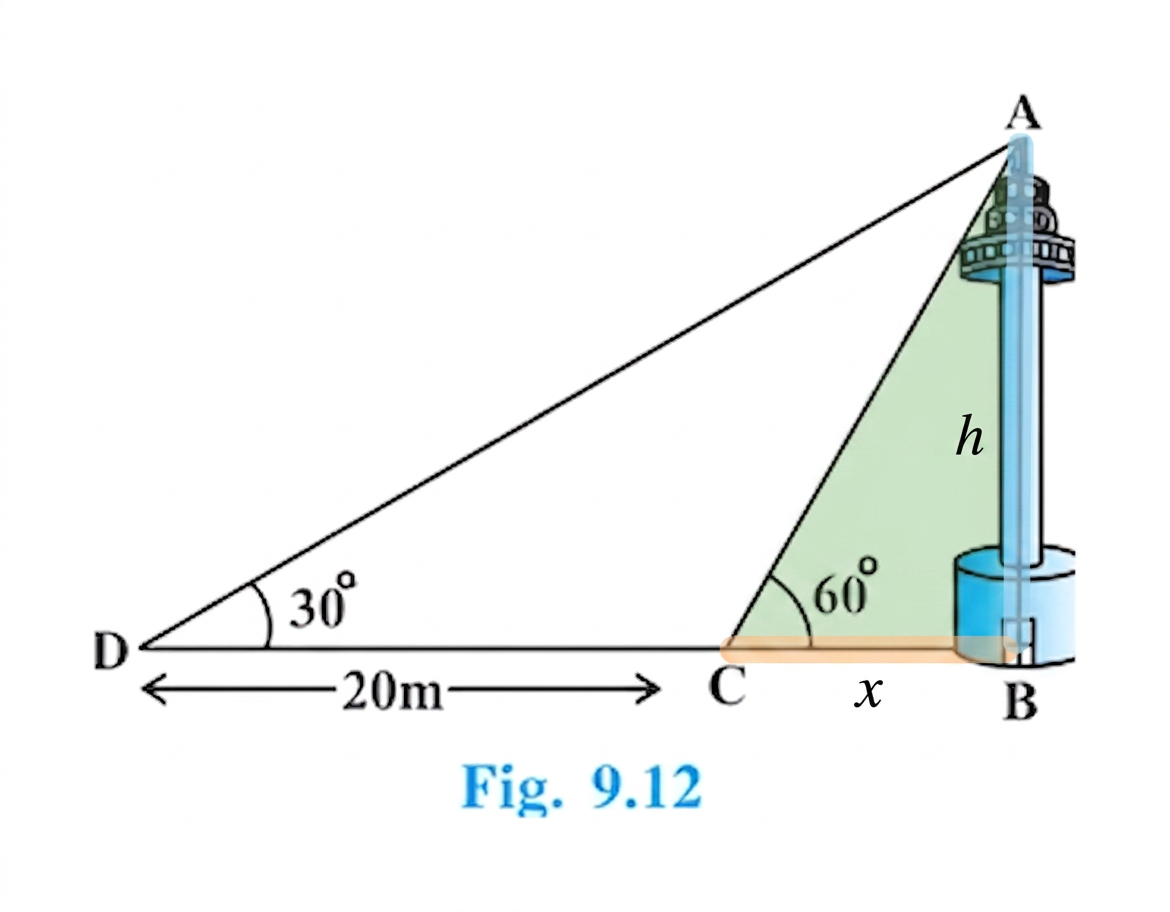

Let the height of the tower $AB = h$ and the width of the canal $BC = x$ . Diagram 1

In right $\Delta ABC$

\begin{aligned} \tan 60^\circ &= \dfrac{\text{Opposite}}{\text{Adjacent}} \\[0.6em] \tan 60^\circ &= \dfrac{AB}{BC} \\[0.6em] \sqrt{3} &= \dfrac{h}{x} \\[0.6em] h &= x\sqrt{3} \quad \dots (1) \end{aligned}

Step 2 · Form equation from $\Delta ABD$ and find canal width

In right $\Delta ABD$ , base $BD = BC + CD = x + 20\text{ m}$ .

\begin{aligned} \tan 30^\circ &= \dfrac{AB}{BD} \\[0.6em] \dfrac{1}{\sqrt{3}} &= \dfrac{h}{x + 20} \\[0.6em] h\sqrt{3} &= x + 20 \quad \dots (2) \end{aligned}

Substitute $h = x\sqrt{3}$ from equation $(1)$ into equation $(2)$

\begin{aligned} (x\sqrt{3})\sqrt{3} &= x + 20 \\[0.6em] 3x &= x + 20 \\[0.6em] 3x - x &= 20 \\[0.6em] 2x &= 20 \\[0.6em] x &= \dfrac{20}{2} = 10\text{ m} \end{aligned}

Step 3 · Calculate the height of the tower

Substitute $x = 10\text{ m}$ into equation $(1)$

\begin{aligned} h &= x\sqrt{3} \\[0.6em] h &= 10\sqrt{3}\text{ m} \end{aligned}

Answer

Height of the tower $= 10\sqrt{3}\text{ m}$ , Width of the canal $= 10\text{ m}$

Common Mistakes

Base Length Error: Incorrectly taking the base of $\Delta ABD$ as $20\text{ m}$ instead of $BD = BC + CD = (x + 20)\text{ m}$ .
Trigonometric Ratio Confusion: Inverting tangent values by taking $\tan 60^\circ = \dfrac{1}{\sqrt{3}}$ instead of $\sqrt{3}$ .
