Some Applications of Trigonometry | Exercise 9.1

Question 7

From a point on the ground, the angles of elevation of the bottom and the top of a transmission tower fixed at the top of a 20 m high building are $45^\circ$ and $60^\circ$ respectively. Find the height of the tower.

Solution

Understand the Question

Let the building be $\text{BC} = 20\text{ m}$ and the transmission tower on top of it be $\text{CD}$ .
From a point $\text{A}$ on the ground, the angle of elevation of the bottom of the tower (point $\text{C}$ ) is $45^\circ$ and the top of the tower (point $\text{D}$ ) is $60^\circ$ .
In right-angled triangle $\Delta \text{ABC}$ , use $\tan 45^\circ$ to find the horizontal distance $\text{AB}$ .
In right-angled triangle $\Delta \text{ABD}$ , use $\tan 60^\circ$ to find the total height $\text{BD}$ .
The height of the tower is given by $\text{CD} = \text{BD} - \text{BC}$ .

Step 1 · Find the Distance from Observation Point to Building

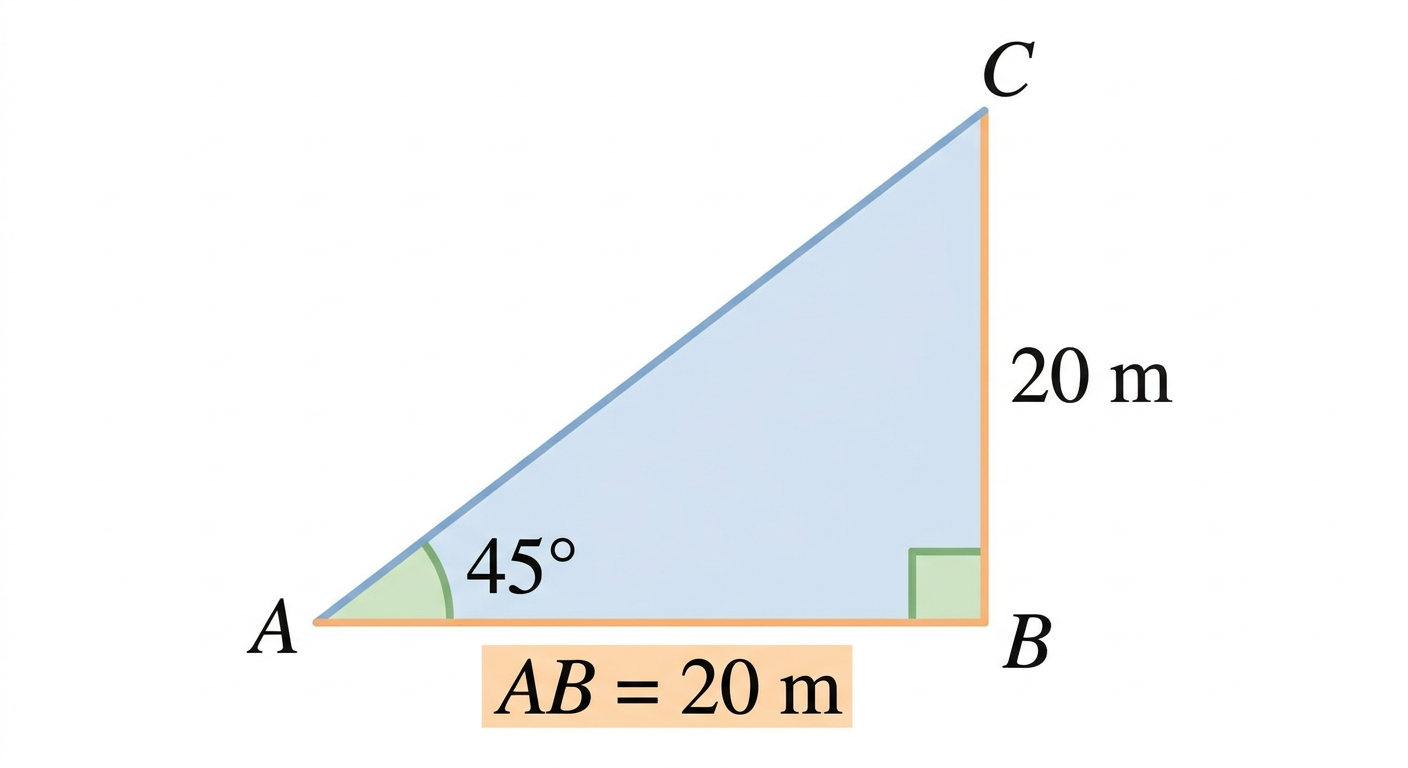

Let $\text{BC} = 20\text{ m}$ be the height of the building, $\text{CD}$ be the height of the tower, and $\text{A}$ be the observation point on the ground. Diagram 1

In right $\Delta \text{ABC}$

\begin{aligned} \tan 45^\circ &= \dfrac{\text{BC}}{\text{AB}} \\[0.6em] 1 &= \dfrac{20}{\text{AB}} \\[0.6em] \text{AB} &= 20\text{ m} \end{aligned}

Step 2 · Find the Total Height

In right $\Delta \text{ABD}$ , where $\text{BD}$ is the total height from the ground to the top of the tower

\begin{aligned} \tan 60^\circ &= \dfrac{\text{BD}}{\text{AB}} \\[0.6em] \sqrt{3} &= \dfrac{\text{BD}}{20} \\[0.6em] \text{BD} &= 20\sqrt{3}\text{ m} \\[0.6em] &= 20 \times 1.732 \\[0.6em] &= 34.64\text{ m} \end{aligned}

Step 3 · Calculate the Height of the Tower

The height of the tower is the difference between total height $\text{BD}$ and building height $\text{BC}$

\begin{aligned} \text{Height of tower } (\text{CD}) &= \text{BD} - \text{BC} \\[0.6em] &= 20\sqrt{3} - 20 \\[0.6em] &= 20(\sqrt{3} - 1)\text{ m} \\[0.6em] &= 20(1.732 - 1) \\[0.6em] &= 20(0.732) \\[0.6em] &= 14.64\text{ m} \end{aligned}

Answer

$20(\sqrt{3} - 1)\text{ m} \approx 14.64\text{ m}$

Common Mistakes

Angle Swapping: Assigning $60^\circ$ to the bottom of the tower and $45^\circ$ to the top. The top of the tower is higher, so its angle of elevation must be larger ( $60^\circ$ ).
Base Length Assumption: Assuming the height of the tower directly from $\tan 60^\circ$ without subtracting the height of the building ( $20\text{ m}$ ).
Approximation Errors: Forgetting units ( $\text{m}$ ) or substituting $\sqrt{3} \approx 1.732$ incorrectly.
