Some Applications of Trigonometry | Exercise 9.1

Question 15

  1. A straight highway leads to the foot of a tower. A man standing at the top of the tower observes a car at an angle of depression of 30∘30^\circ, which is approaching the foot of the tower with a uniform speed. Six seconds later, the angle of depression of the car is found to be 60∘60^\circ. Find the time taken by the car to reach the foot of the tower from this point.
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

Angle of Depression: The angle from the horizontal downward to a point below. Here, from tower top A, the depression angle to the car's initial position C is 30°, and after 6 seconds to position D is 60°.

Alternate Interior Angles: The depression angle at A equals the elevation angle at the car's position (horizontal from A ∥ ground, with the line of sight as transversal). So ∠ACB=30°\angle ACB = 30° and ∠ADB=60°\angle ADB = 60°.

Tangent Ratio: tan⁡θ=Tower heightHorizontal distance\tan\theta = \dfrac{\text{Tower height}}{\text{Horizontal distance}} — used to express CB and DB in terms of height hh.

Car moving toward tower: As the car approaches, the angle of depression increases (30° → 60°). D is closer to the tower than C, so CB=CD+DBCB = CD + DB.

We will use trigonometric ratios to find distances and then relate them using speed and time.

Step 1 — Define variables and set up equations

Let's draw a diagram for clarity. Let ABAB be the tower. Let hh be the height of the tower. Let CC be the initial car position. Let DD be the car's position after 6 seconds. Let BB be the foot of the tower. The angle of depression from AA to CC is 30∘30^\circ. So, ∠ACB=30∘\angle ACB = 30^\circ. The angle of depression from AA to DD is 60∘60^\circ. So, ∠ADB=60∘\angle ADB = 60^\circ. Let DB=xDB = x. Let CD=yCD = y. In right-angled triangle △ABD\triangle ABD: tan⁡60∘=ABDB\tan 60^\circ = \frac{AB}{DB} 3=hx\sqrt{3} = \frac{h}{x} x=h3x = \frac{h}{\sqrt{3}}

In right-angled triangle △ABC\triangle ABC: tan⁡30∘=ABCB\tan 30^\circ = \frac{AB}{CB} 13=hCB\frac{1}{\sqrt{3}} = \frac{h}{CB} CB=h3CB = h\sqrt{3}

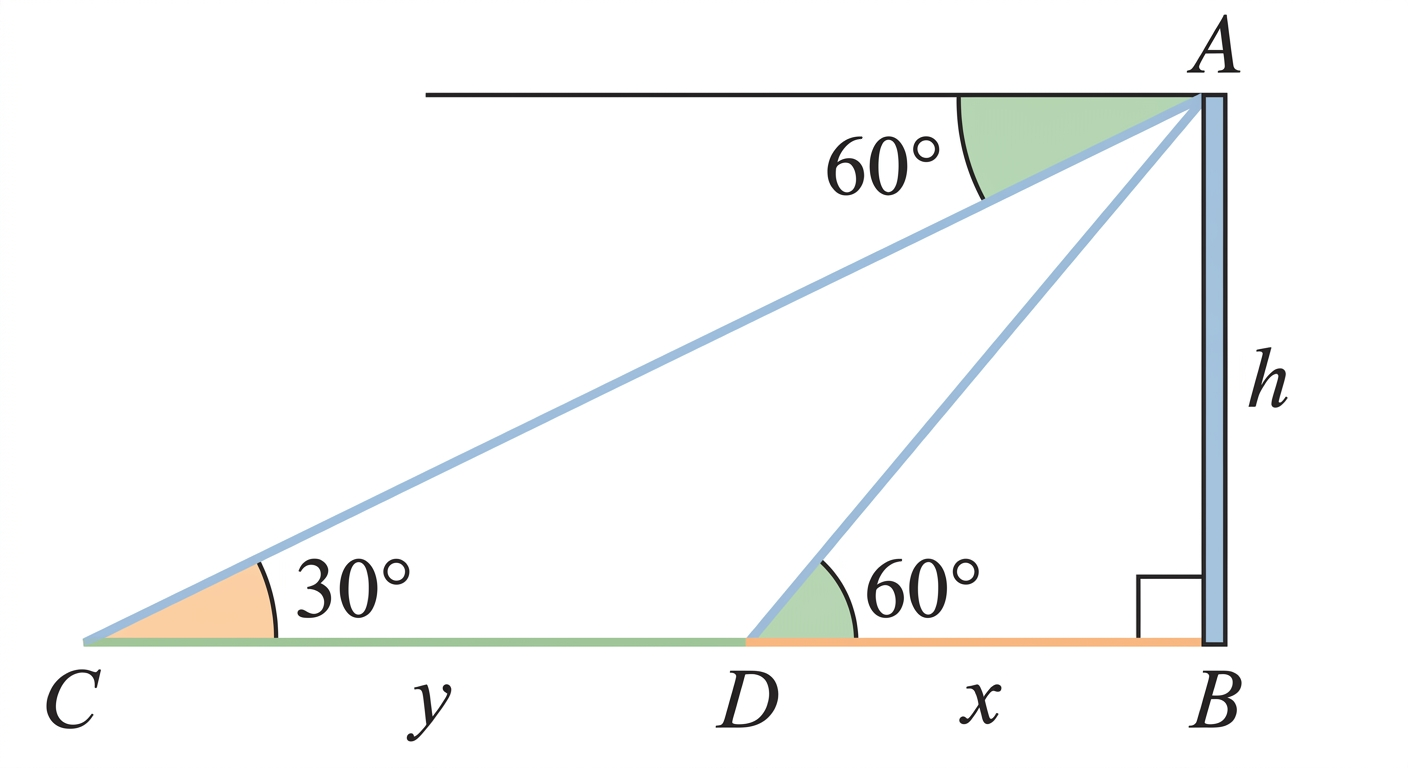

Diagram 1

Step 2 — Calculate distance CD

Since D is between C and B on the highway (car has moved closer), the total distance CB = CD + DB, giving CD = CB − DB.

We know CB=CD+DBCB = CD + DB. So, CD=CB−DBCD = CB - DB. Let's substitute the values from Step 1. CD=h3−h3CD = h\sqrt{3} - \frac{h}{\sqrt{3}} CD=h(3−13)CD = h \left( \frac{3 - 1}{\sqrt{3}} \right) CD=h(23)CD = h \left( \frac{2}{\sqrt{3}} \right)

CD=2h3\boxed{CD = \frac{2h}{\sqrt{3}}}

Step 3 — Calculate the car's speed

The car covers distance CDCD in 6 seconds. Let vv be the uniform speed of the car. Speed Formula: Speed=DistanceTime\text{Speed} = \dfrac{\text{Distance}}{\text{Time}}, so Time=DistanceSpeed\text{Time} = \dfrac{\text{Distance}}{\text{Speed}}.

We use the formula: Speed = Distance / Time. v=CD6v = \frac{CD}{6} v=2h36v = \frac{\frac{2h}{\sqrt{3}}}{6} v=2h63v = \frac{2h}{6\sqrt{3}} v=h33v = \frac{h}{3\sqrt{3}}

v=h33 units/second\boxed{v = \frac{h}{3\sqrt{3}} \text{ units/second}}

Step 4 — Find the time from D to B

We need to find the time to cover distance DBDB. Let tt be this time. We know DB=h3DB = \frac{h}{\sqrt{3}} from Step 1. We know v=h33v = \frac{h}{3\sqrt{3}} from Step 3. We use the formula: Time = Distance / Speed. t=DBvt = \frac{DB}{v} t=h3h33t = \frac{\frac{h}{\sqrt{3}}}{\frac{h}{3\sqrt{3}}} t=h3×33ht = \frac{h}{\sqrt{3}} \times \frac{3\sqrt{3}}{h} t=3t = 3

3 seconds\boxed{3 \text{ seconds}}

Answer

The time taken by the car to reach the foot of the tower from this point is 3 seconds.

More questions in Exercise 9.1

Q1

A circus artist is climbing a 20 m long rope, which is tightly stretched and tied from the top of a vertical pole to the ground. Find the height of the pole, if the angle made by the rope with the ground level is 30∘30^\circ (see Fig. 9.11).

Q2

A tree breaks due to storm and the broken part bends so that the top of the tree touches the ground making an angle 30∘30^\circ with it. The distance between the foot of the tree to the point where the top touches the ground is 8 m. Find the height of the tree.

Q3

A contractor plans to install two slides for the children to play in a park. For the children below the age of 5 years, she prefers to have a slide whose top is at a height of 1.5 m, and is inclined at an angle of 30∘30^\circ to the ground, whereas for elder children, she wants to have a steep slide at a height of 3m, and inclined at an angle of 60∘60^\circ to the ground. What should be the length of the slide in each case?

Q4

The angle of elevation of the top of a tower from a point on the ground, which is 30 m away from the foot of the tower, is 30∘30^\circ. Find the height of the tower.

Q5

A kite is flying at a height of 60 m above the ground. The string attached to the kite is temporarily tied to a point on the ground. The inclination of the string with the ground is 60∘60^\circ. Find the length of the string, assuming that there is no slack in the string.

Q6

A 1.5 m tall boy is standing at some distance from a 30 m tall building. The angle of elevation from his eyes to the top of the building increases from 30∘30^\circ to 60∘60^\circ as he walks towards the building. Find the distance he walked towards the building.

Q7

From a point on the ground, the angles of elevation of the bottom and the top of a transmission tower fixed at the top of a 20 m high building are 45∘45^\circ and 60∘60^\circ respectively. Find the height of the tower.

Q8
  1. A statue, 1.6 m tall, stands on the top of a pedestal. From a point on the ground, the angle of elevation of the top of the statue is 60∘60^\circ and from the same point the angle of elevation of the top of the pedestal is 45∘45^\circ. Find the height of the pedestal.
Q9
  1. The angle of elevation of the top of a building from the foot of the tower is 30∘30^\circ and the angle of elevation of the top of the tower from the foot of the building is 60∘60^\circ. If the tower is 50 m high, find the height of the building.
Q10
  1. Two poles of equal heights are standing opposite each other on either side of the road, which is 80 m wide. From a point between them on the road, the angles of elevation of the top of the poles are 60∘60^\circ and 30∘30^\circ, respectively. Find the height of the poles and the distances of the point from the poles.
Q11
  1. A TV tower stands vertically on a bank of a canal. From a point on the other bank directly opposite the tower, the angle of elevation of the top of the tower is 60∘60^\circ. From another point 20 m away from this point on the line joing this point to the foot of the tower, the angle of elevation of the top of the tower is 30∘30^\circ (see Fig. 9.12). Find the height of the tower and the width of the canal.
Q12
  1. From the top of a 7 m high building, the angle of elevation of the top of a cable tower is 60∘60^\circ and the angle of depression of its foot is 45∘45^\circ. Determine the height of the tower.
Q13
  1. As observed from the top of a 75 m high lighthouse from the sea-level, the angles of depression of two ships are 30∘30^\circ and 45∘45^\circ. If one ship is exactly behind the other on the same side of the lighthouse, find the distance between the two ships.
Q14
  1. A 1.2 m tall girl spots a balloon moving with the wind in a horizontal line at a height of 88.2 m from the ground. The angle of elevation of the balloon from the eyes of the girl at any instant is 60∘60^\circ. After some time, the angle of elevation reduces to 30∘30^\circ (see Fig. 9.13). Find the distance travelled by the balloon during the interval.
Q15
  1. A straight highway leads to the foot of a tower. A man standing at the top of the tower observes a car at an angle of depression of 30∘30^\circ, which is approaching the foot of the tower with a uniform speed. Six seconds later, the angle of depression of the car is found to be 60∘60^\circ. Find the time taken by the car to reach the foot of the tower from this point.
