Some Applications of Trigonometry | Exercise 9.1

Question 10

Two poles of equal heights are standing opposite each other on either side of the road, which is 80 m wide. From a point between them on the road, the angles of elevation of the top of the poles are $60^\circ$ and $30^\circ$ , respectively. Find the height of the poles and the distances of the point from the poles.

Solution

Understand the Question

Two vertical poles of equal height $h$ stand on opposite sides of a road of width $80\text{ m}$ .
From a point $P$ on the road between them, the angles of elevation to the tops of the poles are $60^\circ$ and $30^\circ$ .
If the distance of point $P$ from one pole is $x$ , then its distance from the other pole is $80 - x$ .
Using the trigonometric ratio $\tan \theta = \dfrac{\text{Opposite}}{\text{Adjacent}} = \dfrac{\text{Height}}{\text{Distance}}$ in both right triangles gives two expressions for $h$ , which can be equated to find $x$ and $h$ .

Step 1 · Define variables and set up equations

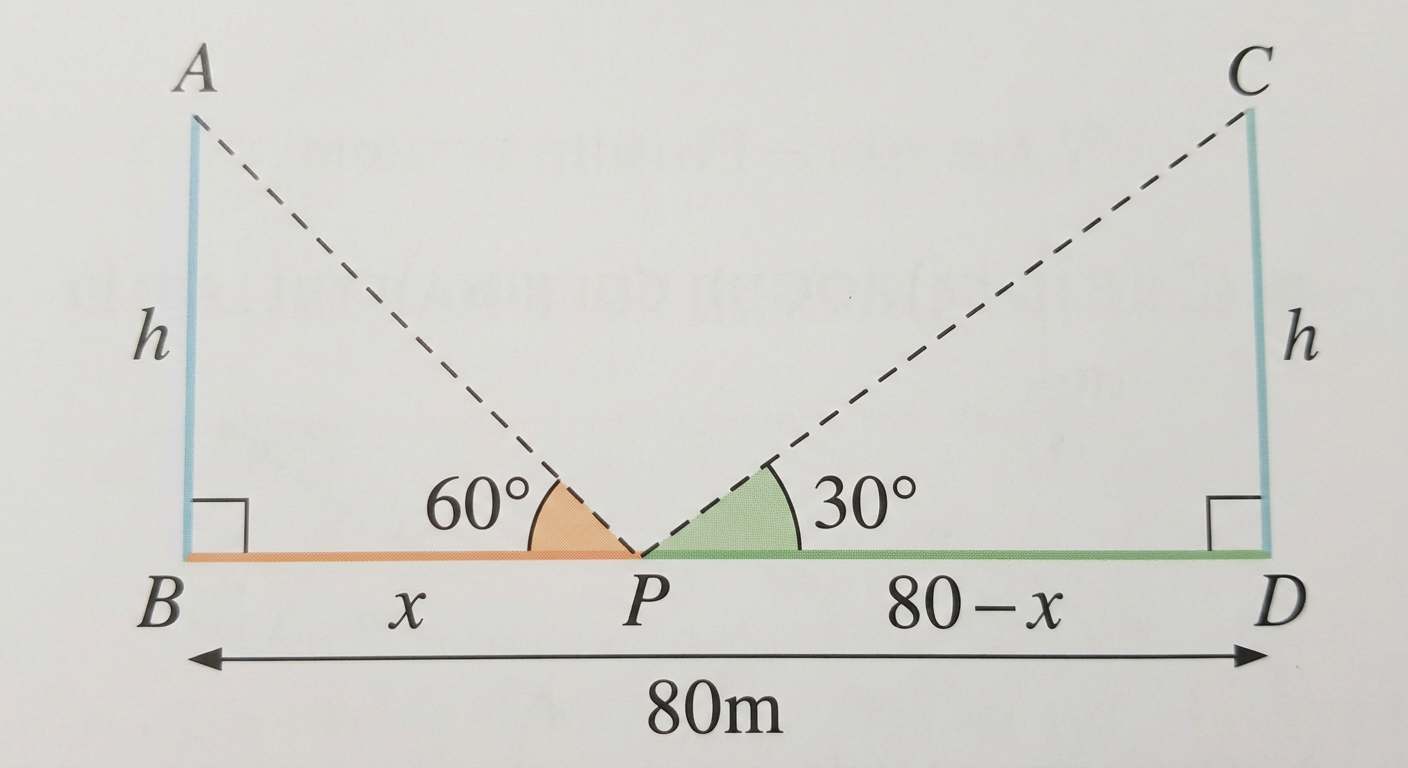

Let $\text{AB}$ and $\text{CD}$ be the two poles of equal height $h$ , and let $P$ be the observation point on the road $\text{BD} = 80\text{ m}$ . Let $\text{BP} = x$ , so $\text{PD} = 80 - x$ . Diagram 1

In right $\triangle \text{ABP}$

\begin{aligned} \tan 60^\circ &= \dfrac{\text{AB}}{\text{BP}} \\[0.6em] \sqrt{3} &= \dfrac{h}{x} \\[0.6em] h &= x\sqrt{3} \quad \dots (1) \end{aligned}

In right $\triangle \text{CDP}$

\begin{aligned} \tan 30^\circ &= \dfrac{\text{CD}}{\text{PD}} \\[0.6em] \dfrac{1}{\sqrt{3}} &= \dfrac{h}{80 - x} \\[0.6em] h &= \dfrac{80 - x}{\sqrt{3}} \quad \dots (2) \end{aligned}

Step 2 · Calculate the distances of the point from the poles

Equating expressions for $h$ from equations $(1)$ and $(2)$

\begin{aligned} x\sqrt{3} &= \dfrac{80 - x}{\sqrt{3}} \\[0.6em] x\sqrt{3} \times \sqrt{3} &= 80 - x \\[0.6em] 3x &= 80 - x \\[0.6em] 3x + x &= 80 \\[0.6em] 4x &= 80 \\[0.6em] x &= \dfrac{80}{4} = 20\text{ m} \end{aligned}

Distance from the first pole $\text{BP} = 20\text{ m}$ .

Distance from the second pole $\text{PD}$

80 - x = 80 - 20 = 60\text{ m}

Step 3 · Calculate the height of the poles

Substitute $x = 20$ into equation $(1)$

\begin{aligned} h &= x\sqrt{3} \\[0.6em] &= 20\sqrt{3}\text{ m} \end{aligned}

Answer

Height of the poles $= 20\sqrt{3}\text{ m}$ ; distances of the point from the poles are $20\text{ m}$ and $60\text{ m}$ .

Common Mistakes

Angle-Distance Mismatch: The closer point to a pole has the steeper angle of elevation ( $60^\circ$ ), so the pole with angle $60^\circ$ corresponds to the shorter distance $20\text{ m}$ , not $60\text{ m}$ .
Segment Division Error: Setting the two distances as $x$ and $80 + x$ instead of $x$ and $80 - x$ .
Trigonometric Values: Confusing $\tan 60^\circ = \sqrt{3}$ with $\tan 30^\circ = \dfrac{1}{\sqrt{3}}$ .
