Some Applications of Trigonometry | Exercise 9.1

Question 2

A tree breaks due to storm and the broken part bends so that the top of the tree touches the ground making an angle $30^\circ$ with it. The distance between the foot of the tree to the point where the top touches the ground is 8 m. Find the height of the tree.

Solution

We will use trigonometry to find the parts of the tree.

Step 1 — Find the standing part of the tree

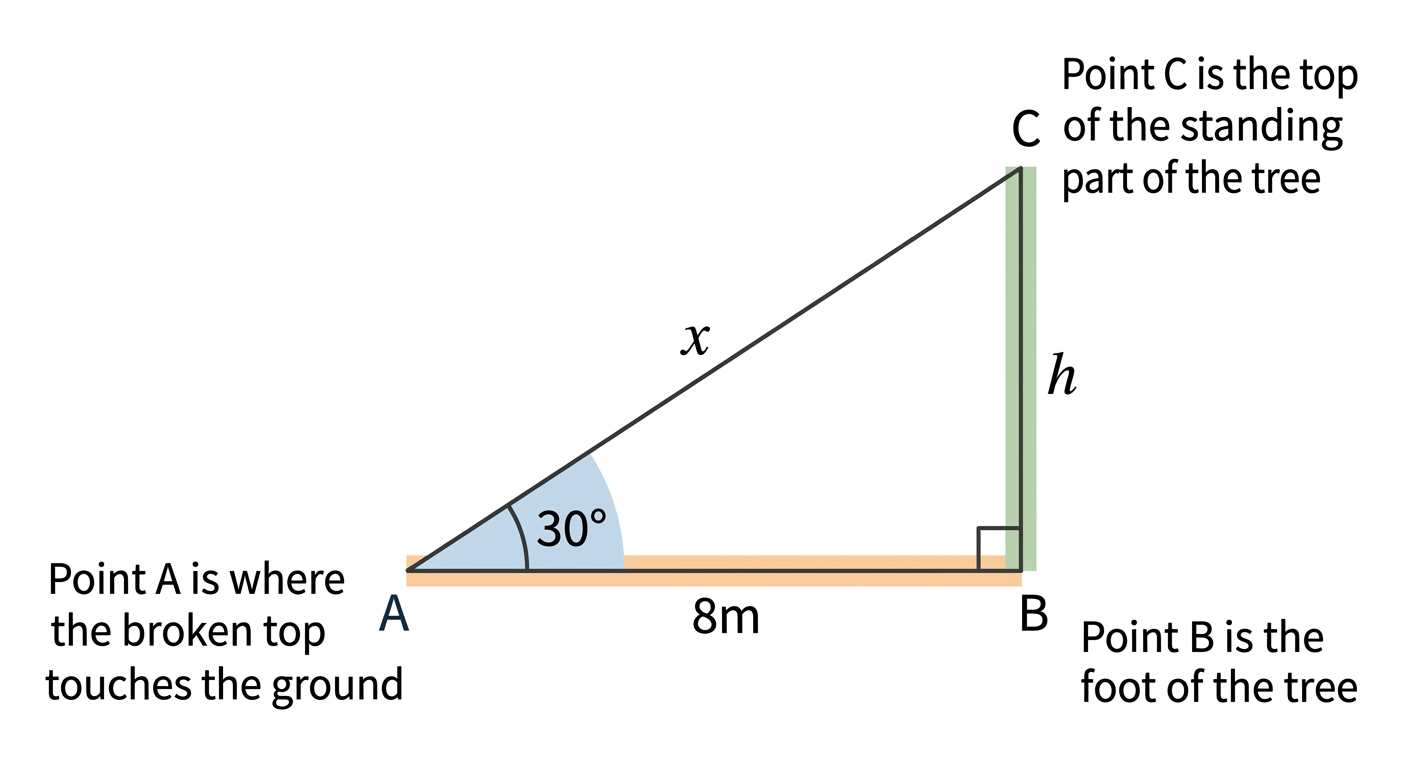

Let's draw a diagram first. The tree forms a right-angled triangle. The standing part is the height $BC$ . The broken part is the hypotenuse $AC$ . The distance on the ground is $AB$ .

Diagram 1

We know the angle at the ground is $30^\circ$ . The distance from the foot to the top is 8 m. This is the adjacent side to the angle. We need to find the opposite side $BC$ . Tangent Ratio: $\tan\theta = \dfrac{\text{Opposite}}{\text{Adjacent}}$ — used when we know the adjacent side and need the opposite (or vice versa).

We use the tangent ratio.

$\tan(\text{angle}) = \frac{\text{opposite side}}{\text{adjacent side}}$

$\tan(30^\circ) = \frac{BC}{AB}$

$\frac{1}{\sqrt{3}} = \frac{BC}{8}$

$BC = \frac{8}{\sqrt{3}}$

$\boxed{BC = \frac{8}{\sqrt{3}} \text{ m}}$

Step 2 — Find the length of the broken part

Now, let's find the length of the broken part. This is the hypotenuse $AC$ of the triangle. We know the adjacent side $AB$ is 8 m. Cosine Ratio: $\cos\theta = \dfrac{\text{Adjacent}}{\text{Hypotenuse}}$ — used when we know the adjacent side and need the hypotenuse.

We use the cosine ratio for this.

$\cos(\text{angle}) = \frac{\text{adjacent side}}{\text{hypotenuse}}$

$\cos(30^\circ) = \frac{AB}{AC}$

$\frac{\sqrt{3}}{2} = \frac{8}{AC}$

$AC = \frac{8 \times 2}{\sqrt{3}}$

$AC = \frac{16}{\sqrt{3}}$

$\boxed{AC = \frac{16}{\sqrt{3}} \text{ m}}$

Step 3 — Calculate the total height of the tree

The total height is the sum of $BC$ and $AC$ .

$\text{Total height} = \frac{8}{\sqrt{3}} + \frac{16}{\sqrt{3}}$

$\text{Total height} = \frac{8 + 16}{\sqrt{3}}$

$\text{Total height} = \frac{24}{\sqrt{3}}$

Rationalizing the denominator: Multiplying numerator and denominator by $\sqrt{3}$ removes the surd from the denominator, giving a cleaner form.

To simplify, we rationalize the denominator.

$\text{Total height} = \frac{24}{\sqrt{3}} \times \frac{\sqrt{3}}{\sqrt{3}}$

$\text{Total height} = \frac{24\sqrt{3}}{3}$

$\text{Total height} = 8\sqrt{3}$

$\boxed{\text{Total height} = 8\sqrt{3} \text{ m}}$

Answer

The height of the tree is $8\sqrt{3} \text{ m}$ .
