Question 4

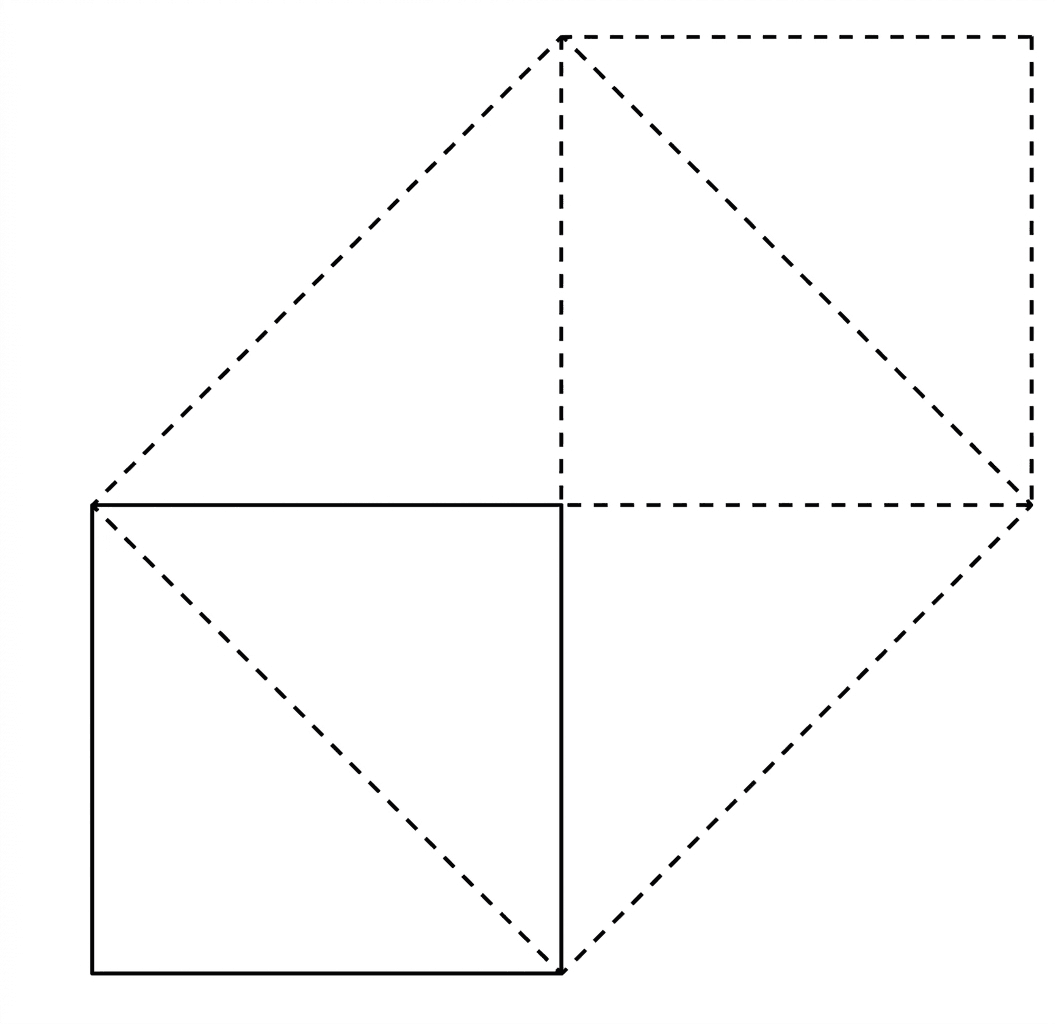

Context: So, the new square has double the area of the original square, because the original square is made up of two small triangles, while the new square is made up of four small triangles.

Q. Moreover, all these small triangles are congruent to each other. Can you explain why?

Solution

Understand the Question

The original square of side length $s$ is divided by a diagonal into $2$ right-angled isosceles triangles.
The new square has double the area of the original square, so its side length is $s\sqrt{2}$ . When divided by both its diagonals, it forms $4$ smaller triangles.
To explain why all these triangles are congruent, we determine the side lengths and angles of both sets of triangles and show that they are identical.

Step 1 · Analyze Triangles in the Original Square

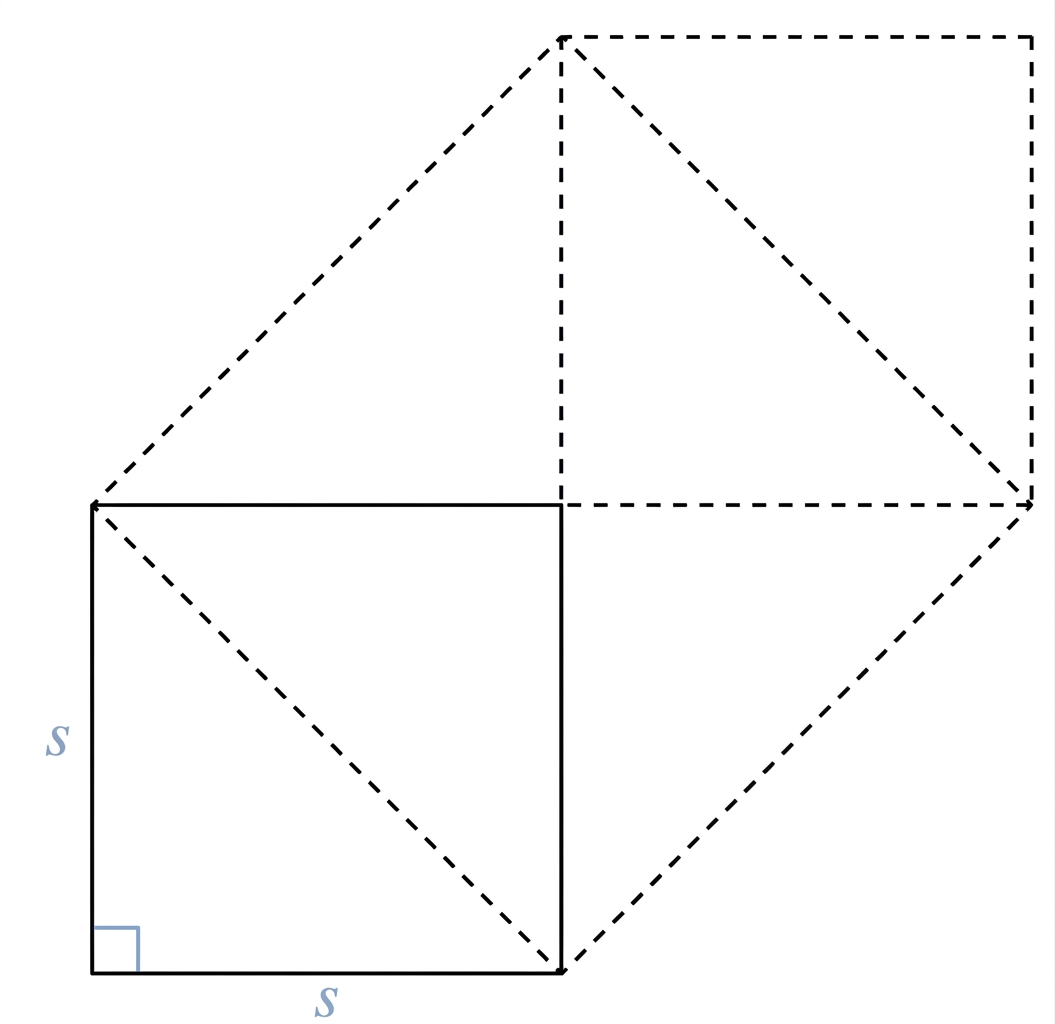

Diagram 1

Let the side length of the original square be $s$ .

A diagonal divides the square into two right-angled triangles with two perpendicular sides of length $s$ and an included angle of $90^\circ$ .

By Pythagoras theorem:

\begin{aligned} \text{Hypotenuse}^2 &= s^2 + s^2 \\ &= 2s^2 \\ \text{Hypotenuse} &= s\sqrt{2} \end{aligned}

Thus, each of the $2$ triangles in the original square has sides of length $s, s, s\sqrt{2}$ and angles $90^\circ, 45^\circ, 45^\circ$ .

Step 2 · Analyze Triangles in the New Square

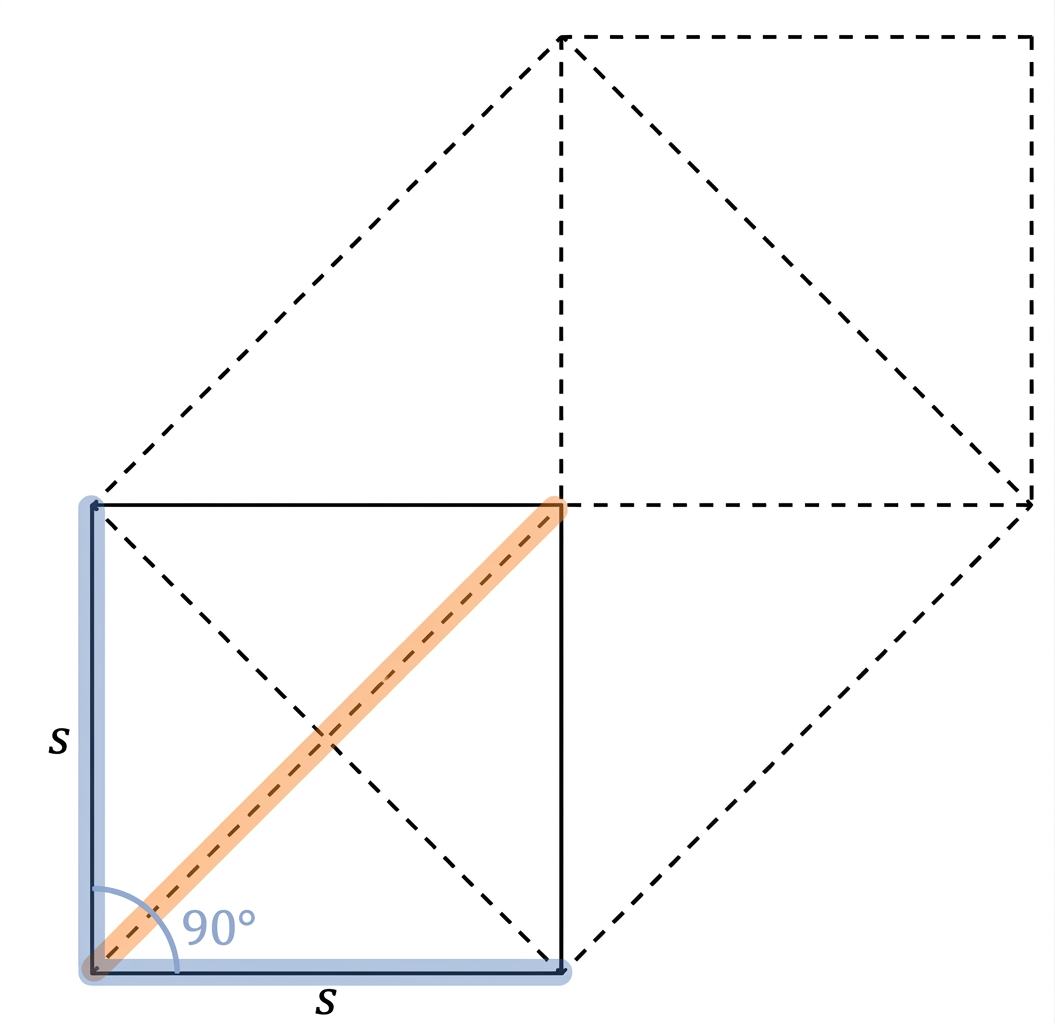

Diagram 2

The area of the new square is double that of the original square:

$\text{Area} = 2s^2$

Let $S$ be the side length of the new square:

\begin{aligned} S^2 &= 2s^2 \\ S &= s\sqrt{2} \end{aligned}

The diagonals of a square bisect each other perpendicularly at $90^\circ$ . The length of each diagonal is:

\begin{aligned} \text{Diagonal length} &= (s\sqrt{2}) \times \sqrt{2} \\ &= 2s \end{aligned}

Each of the $4$ triangles formed by the intersecting diagonals has:

Two legs equal to half the diagonal length: $\dfrac{2s}{2} = s$
Included angle between legs: $90^\circ$
Hypotenuse equal to the side of the new square: $S = s\sqrt{2}$

Thus, each of the $4$ triangles in the new square also has sides of length $s, s, s\sqrt{2}$ and angles $90^\circ, 45^\circ, 45^\circ$ .

Step 3 · Establish Congruence

Comparing the triangles from both squares:

Both the $2$ triangles from the original square and the $4$ triangles from the new square are right-angled isosceles triangles.
All of them have identical side lengths: $s$ , $s$ , and $s\sqrt{2}$ .

Therefore, by the SSS (or SAS) congruence criterion, all the small triangles are congruent to each other.

Answer

All the small triangles are congruent because they are all right-angled isosceles triangles with identical side lengths $s, s, s\sqrt{2}$ (by SSS or SAS congruence criterion).

Common Mistakes

Doubling Sides Instead of Area: Doubling the area of a square multiplies its side length by $\sqrt{2}$ , not by $2$ .
Overlooking Diagonal Properties: Forgetting that the diagonals of a square are perpendicular bisectors of each other, which guarantees that the legs of the $4$ small triangles in the new square are $\dfrac{2s}{2} = s$ at right angles ( $90^\circ$ ).
