Question 21
Is there anything strange about the path of this ball? Recreate it on the isometric grid.
[Hint: Consider a portion of this figure that is physically realisable and identify the 3 primary directions.]
- Isometric drawings represent three-dimensional objects along three primary axes: Left/Right, Forward/Backward, and Up/Down.
- By tracing the path of the ball along the cube surfaces step by step, we check the transitions between different height levels.
- While rolling down a level under gravity is physically possible, moving vertically upward onto a higher cube without a ramp or external force makes the path physically impossible.
(i) Is there anything strange about the path of this ball?
Step 1 · Trace the Ball's Movement Across Levels
Analyzing the path using the three primary spatial directions (Left/Right, Forward/Backward, and Up/Down):
- The red ball moves horizontally along the top level.
- It transitions downward from a higher cube into the central depression, which is physically possible as a ball can fall or roll off an edge.
- It travels horizontally along the lower level.

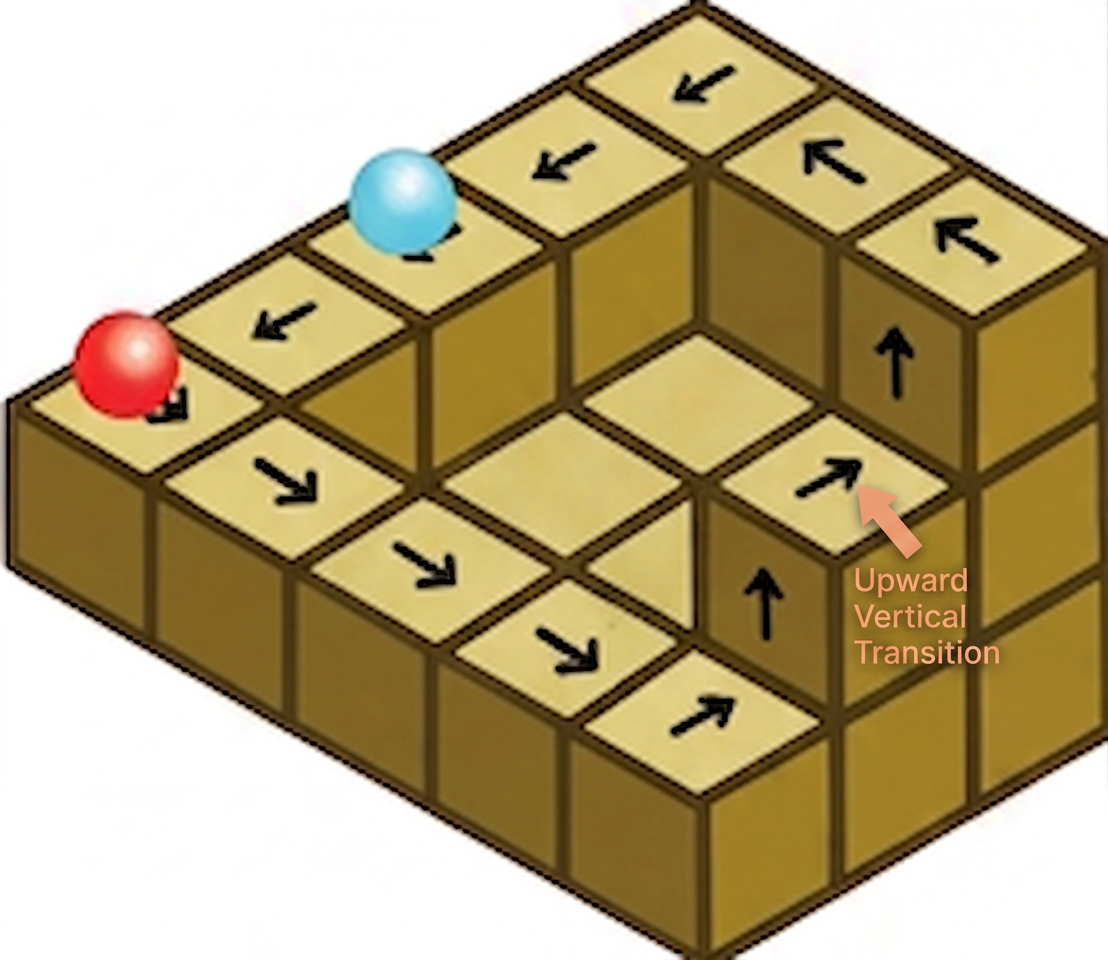

- An arrow then indicates the ball moving vertically upward from the lower cube back to the higher cube.
Without a ramp, slope, or lifting mechanism, this upward vertical step is physically impossible for a rolling ball.
(i) Yes, the ball moves vertically upward from a lower level to a higher level without any ramp or lifting mechanism, creating a physically impossible path.
(ii) Recreate it on the isometric grid.
Step 1 · Construct the Structure on an Isometric Grid
Follow these steps to recreate the figure:
- Draw the outer boundary of the cube arrangement along the isometric axes.
- Form the central depression by drawing the lower level of cubes.
- Trace the arrows starting from the red ball on the top level, descending into the depression, moving across the bottom, and looping back up to the blue ball on the top tier.
(ii) The path is recreated on the isometric grid as shown in the diagram above.
- Overlooking Level Differences: Assuming all cube surfaces lie on the same horizontal plane instead of recognizing the central depression as a lower level.
- Missing the Physical Impossibility: Failing to notice that an arrow directly ascends a vertical step without any incline or mechanism.
