Question 6

Find the perimeter of the shape at the $n\text{th}$ step of the sequence. Take the starting equilateral triangle to have a sidelength of 1 unit.

Solution

Understand the Question

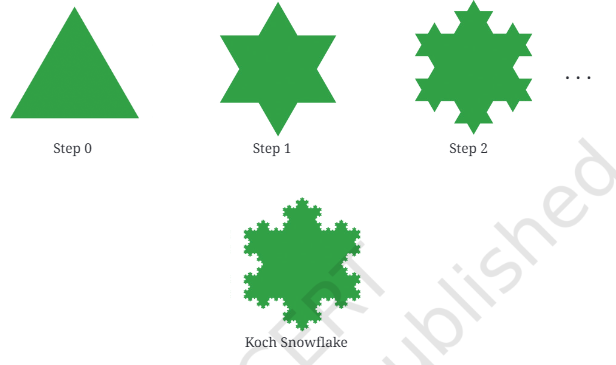

The sequence generates a Koch snowflake fractal starting from an equilateral triangle of side length $1$ unit (Step $0$ ).
At each subsequent step, the middle third of every line segment is replaced by two segments of equal length forming an outward point. As a result:
- The number of sides multiplies by $4$ .
- The length of each side divides by $3$ (multiplies by $\dfrac{1}{3}$ ).
Therefore, the total perimeter at each step is multiplied by a factor of $\dfrac{4}{3}$ .

Step 1 · Find Perimeter at Step 0

For the starting equilateral triangle:

Initial side length: $L_0 = 1\text{ unit}$
Number of sides: $N_0 = 3$

\begin{aligned} P_0 &= N_0 \times L_0 \\[0.6em] &= 3 \times 1 \\[0.6em] &= 3 \text{ units} \end{aligned}

Step 2 · Find Perimeter at Step 1

Each side is divided into three equal parts and the middle part is replaced with two new segments.

New side length:

\begin{aligned} L_1 &= \dfrac{L_0}{3} \\[0.6em] &= \dfrac{1}{3} \text{ units} \end{aligned}

Number of sides:

\begin{aligned} N_1 &= N_0 \times 4 \\[0.6em] &= 3 \times 4 \\[0.6em] &= 12 \text{ sides} \end{aligned}

Perimeter at Step 1:

\begin{aligned} P_1 &= N_1 \times L_1 \\[0.6em] &= 12 \times \left(\dfrac{1}{3}\right) \\[0.6em] &= 4 \text{ units} \end{aligned}

Notice that $P_1 = P_0 \times \dfrac{4}{3} = 3 \times \dfrac{4}{3} = 4\text{ units}$ .

Step 3 · Find Perimeter at Step 2

Applying the same rule to each segment:

New side length:

\begin{aligned} L_2 &= \dfrac{L_1}{3} \\[0.6em] &= \dfrac{\frac{1}{3}}{3} \\[1.1em] &= \dfrac{1}{9} \text{ units} \end{aligned}

Number of sides:

\begin{aligned} N_2 &= N_1 \times 4 \\[0.6em] &= 12 \times 4 \\[0.6em] &= 48 \text{ sides} \end{aligned}

Perimeter at Step 2:

\begin{aligned} P_2 &= N_2 \times L_2 \\[0.6em] &= 48 \times \left(\dfrac{1}{9}\right) \\[0.6em] &= \dfrac{16}{3} \text{ units} \end{aligned}

Notice that $P_2 = P_1 \times \left(\dfrac{4}{3}\right) = 4 \times \left(\dfrac{4}{3}\right) = \dfrac{16}{3}\text{ units}$ .

Step 4 · Derive Formula for Perimeter at Step $n$

Observing the pattern:

Number of sides at step $n$ : $N_n = 3 \times 4^n$
Length of each side at step $n$ : $L_n = \left(\dfrac{1}{3}\right)^n$
Perimeter multiplies by $\dfrac{4}{3}$ at every step

Starting from $P_0 = 3$ units:

\begin{aligned} P_n &= P_0 \times \left(\dfrac{4}{3}\right)^n \\[0.6em] &= 3 \times \left(\dfrac{4}{3}\right)^n \text{ units} \end{aligned}

Answer

$3 \times \left(\dfrac{4}{3}\right)^n \text{ units}$

Common Mistakes

Confusing Side Length with Total Perimeter: While individual side lengths decrease by a factor of $\dfrac{1}{3}$ at each step, the total number of sides increases by a factor of $4$ , making the overall perimeter grow infinitely as $n \to \infty$ .
Off-by-One Exponent Error: Using $\left(\dfrac{4}{3}\right)^{n-1}$ instead of $\left(\dfrac{4}{3}\right)^n$ . At Step $0$ ( $n = 0$ ), $3 \times \left(\dfrac{4}{3}\right)^0 = 3$ units, which matches the initial triangle's perimeter.
