Question 20

Draw the following figures on the isometric grid.

[Hint: It may be useful to determine whether the edge to be currently drawn — say, along the height — goes from down to up or up to down. Accordingly, draw the line segment on the grid either in the direction of the height axis or opposite to it.]

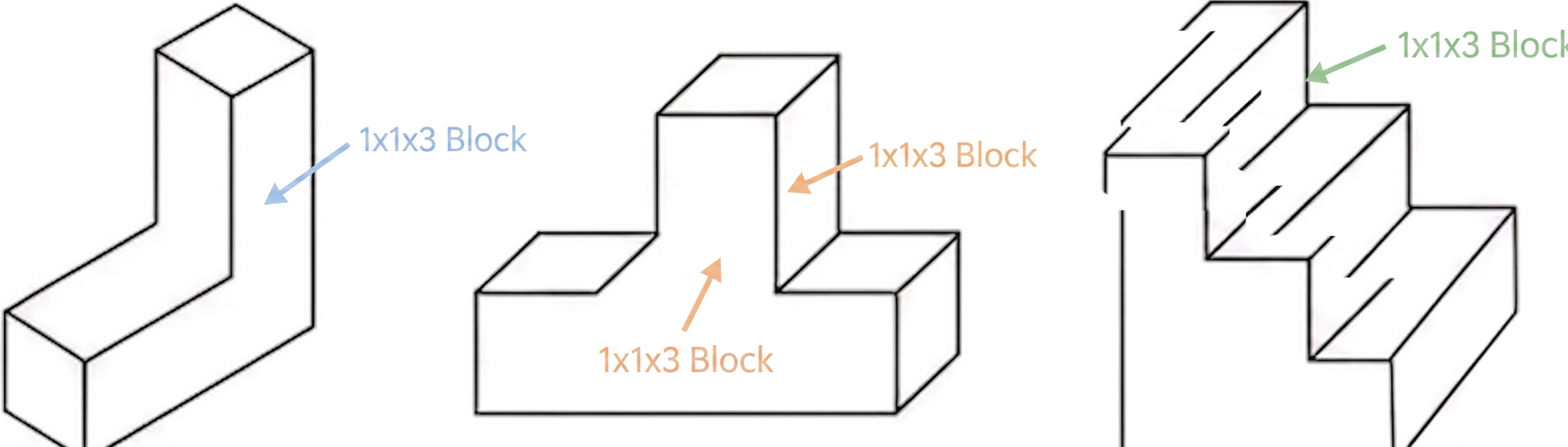

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • An isometric grid uses isometric axes at 120120^\circ angles to represent 3D objects on a 2D plane without distorting edge lengths along the three main directions: length, width, and height.
  • Each figure is constructed cube-by-cube or block-by-block by drawing line segments along these grid directions to form the edges of the solid.

(i) Draw the L-shaped block on the isometric grid.

Step 1 · Draw the L-Shaped Block

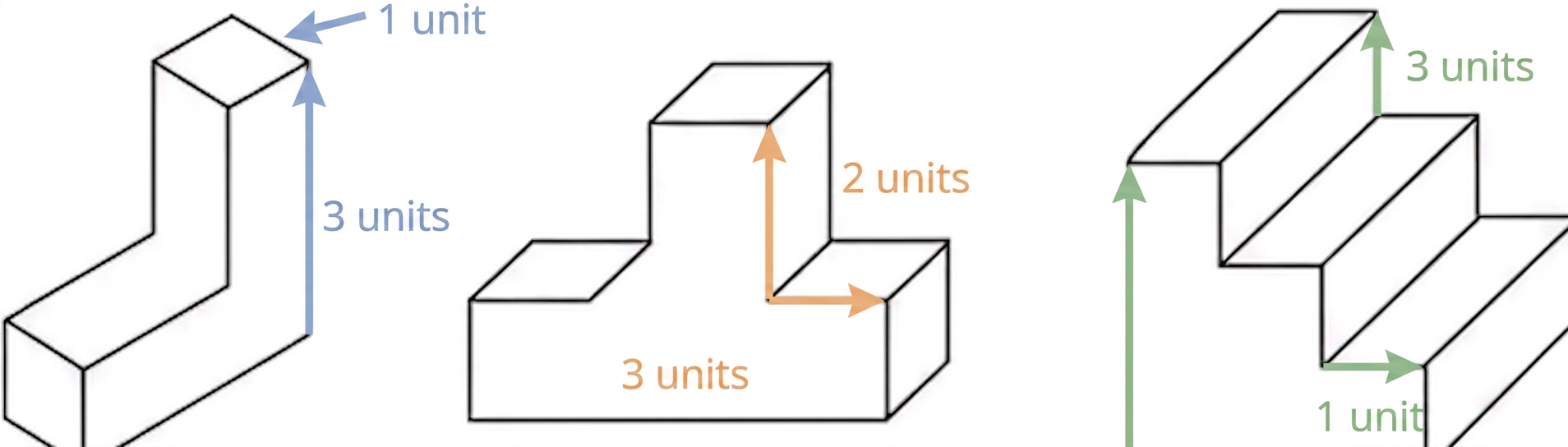

Diagram 1

  1. Vertical tower (1×1×31 \times 1 \times 3):
    • Mark a starting point on the grid and draw a 1×11 \times 1 rhombus base along the length and width directions.
    • From each corner of the base, draw vertical line segments of length 33 units upwards.
    • Connect the top ends to complete the 1×11 \times 1 top face of the vertical tower.
  2. Horizontal extension (2×1×12 \times 1 \times 1):
    • Extend the base from the tower by 22 units along the length direction.
    • Draw vertical lines of 11 unit height at the outer corners.
    • Connect the edges to complete the top and side faces of the lower horizontal section.
Answer

(i) The L-shaped block is drawn on the isometric grid by combining a 1×1×31 \times 1 \times 3 vertical column with an attached 2×1×12 \times 1 \times 1 horizontal base.

(ii) Draw the T-shaped block on the isometric grid.

Step 1 · Draw the T-Shaped Block

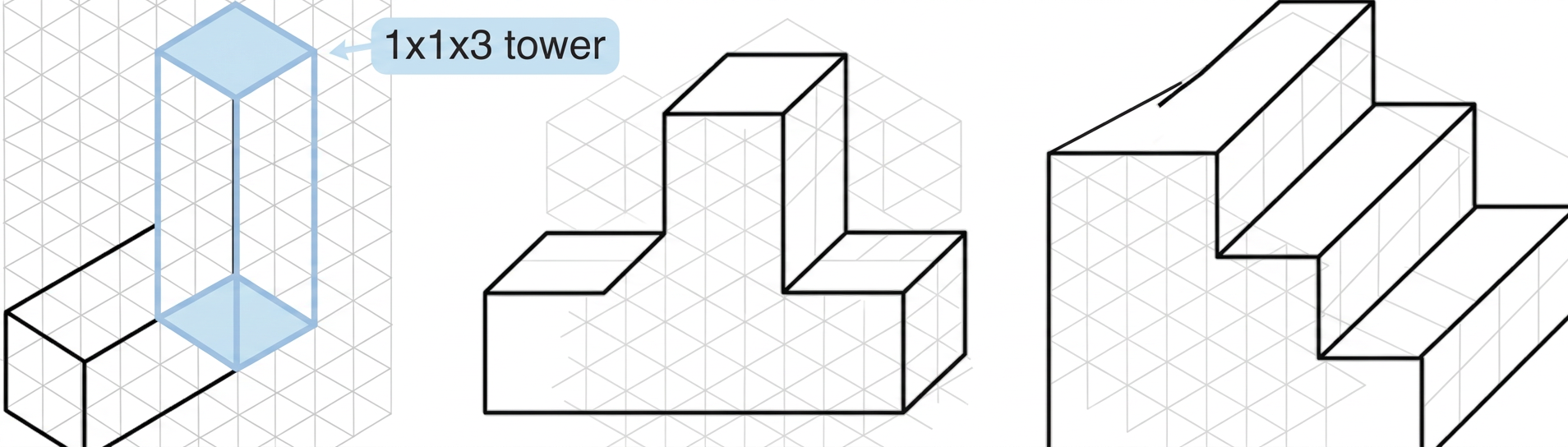

Diagram 2

  1. Horizontal base (3×1×13 \times 1 \times 1):
    • Draw a 3×13 \times 1 base along the length and width directions.
    • Draw 11-unit vertical lines from each corner and connect their top ends to form the 3×1×13 \times 1 \times 1 base block.
  2. Central vertical column (1×1×21 \times 1 \times 2):
    • Locate the central 1×11 \times 1 square on the top face of the base block.
    • Draw vertical lines of 22 units height upwards from each corner of this central square.
    • Connect the tops of these vertical segments to complete the 1×11 \times 1 top face.
Answer

(ii) The T-shaped block is drawn on the isometric grid by placing a 1×1×21 \times 1 \times 2 vertical block centrally on top of a 3×1×13 \times 1 \times 1 horizontal base block.

(iii) Draw the staircase block on the isometric grid.

Step 1 · Draw the Staircase Block

Diagram 3

  1. First (bottom) step (3×1×13 \times 1 \times 1):
    • Draw a 3×13 \times 1 rectangular base on the grid and raise it by 11 unit vertically to form the lowest platform.
  2. Second (middle) step (2×1×12 \times 1 \times 1):
    • On the rear 2×12 \times 1 section of the bottom step's top surface, draw vertical lines of 11 unit height.
    • Connect the top ends to create a 2×12 \times 1 horizontal step surface.
  3. Third (top) step (1×1×11 \times 1 \times 1):
    • On the rearmost 1×11 \times 1 section of the second step's top surface, draw vertical lines of 11 unit height.
    • Connect the edges to complete the top 1×11 \times 1 surface of the staircase.
Answer

(iii) The staircase block is drawn on the isometric grid by stacking three stepped layers of dimensions 3×1×13 \times 1 \times 1, 2×1×12 \times 1 \times 1, and 1×1×11 \times 1 \times 1.

Common Mistakes
  • Axis Misalignment: Drawing lines parallel to normal horizontal grid lines instead of following the 3030^\circ isometric axes for length and width.
  • Counting Grid Units Incorrectly: Miscounting isometric dot spaces for the height or length dimensions of individual unit cubes.
  • Drawing Hidden Edges: Drawing interior or rear edges with solid lines instead of only drawing visible outer edges.
