Question 36

ZYXW is a trapezium with $ZY \parallel WX$ . $A$ is the midpoint of $XY$ . Show that the area of the trapezium ZYXW is equal to the area of $\triangle ZWB$ .

Solution

Understand the Question

In trapezium $ZYXW$ , the sides $ZY \parallel WX$ , and $A$ is the midpoint of $XY$ .
The line segment $ZA$ is extended to meet the extended line $WX$ at point $B$ .
To show that $\text{Area}(\text{trapezium } ZYXW) = \text{Area}(\triangle ZWB)$ $Area (trapezium Z Y X W) = Area (△ Z W B)$ , we:
1. Prove $\triangle ZAY \cong \triangle BAX$ using the ASA congruence criterion.
2. Since congruent triangles have equal areas, adding the common region (quadrilateral $ZWXA$ ) to both triangles equates the area of trapezium $ZYXW$ with the area of $\triangle ZWB$ .

Step 1 · Prove $\triangle ZAY \cong \triangle BAX$

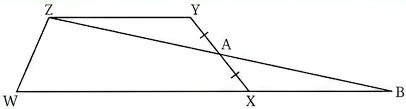

Consider $\triangle ZAY$ and $\triangle BAX$ . Question diagram Diagram 1

Since $A$ is the midpoint of $XY$ $AY = AX$

Since $ZY \parallel WX$ (or $ZY \parallel XB$ ) with transversal $XY$ , alternate interior angles are equal $\angle ZYA = \angle BXA$

Vertically opposite angles are equal $\angle ZAY = \angle BAX$

By the Angle-Side-Angle (ASA) congruence criterion $\triangle ZAY \cong \triangle BAX$

Step 2 · Equate Areas of Trapezium and Triangle

Since congruent triangles have equal areas $\text{Area}(\triangle ZAY) = \text{Area}(\triangle BAX)$

Area of trapezium $ZYXW$ is the sum of quadrilateral $ZWXA$ and $\triangle ZAY$ $\text{Area}(\text{trapezium } ZYXW) = \text{Area}(\text{quadrilateral } ZWXA) + \text{Area}(\triangle ZAY)$

Area of $\triangle ZWB$ is the sum of quadrilateral $ZWXA$ and $\triangle BAX$ $\text{Area}(\triangle ZWB) = \text{Area}(\text{quadrilateral } ZWXA) + \text{Area}(\triangle BAX)$

Substituting $\text{Area}(\triangle ZAY) = \text{Area}(\triangle BAX)$ $\text{Area}(\text{trapezium } ZYXW) = \text{Area}(\text{quadrilateral } ZWXA) + \text{Area}(\triangle BAX)$

Therefore $\text{Area}(\text{trapezium } ZYXW) = \text{Area}(\triangle ZWB)$

Answer

$\text{Area}(\text{trapezium } ZYXW) = \text{Area}(\triangle ZWB)$

Common Mistakes

Alternate Interior Angles Error: Forgetting that $ZY \parallel XB$ holds because $B$ lies on the line extension of side $WX$ .
Congruence Criteria Confusion: Incorrectly citing SAS instead of ASA; the equal side $AY = AX$ lies strictly between the two equal pairs of angles (alternate interior and vertically opposite angles).
