Question 34

Using the idea of converting a trapezium into a rectangle of equal area, and vice versa, construct a trapezium of area $144\text{ cm}^2$ .

Solution

Understand the Question

A trapezium with parallel sides $a$ and $b$ and height $h$ has an area of $\text{Area} = \dfrac{a + b}{2} \times h$ .
This area is equal to the area of a rectangle of length $L = \dfrac{a + b}{2}$ and width $W = h$ .
To construct a trapezium of area $144\text{ cm}^2$ , we first choose convenient dimensions for an equivalent rectangle ( $L \times W = 144\text{ cm}^2$ ), and then determine the height $h = W$ and parallel sides $a, b$ such that $a + b = 2L$ .

Step 1 · Determine Dimensions of an Equivalent Rectangle

Let the length of the rectangle be $L$ and its width be $W$ .

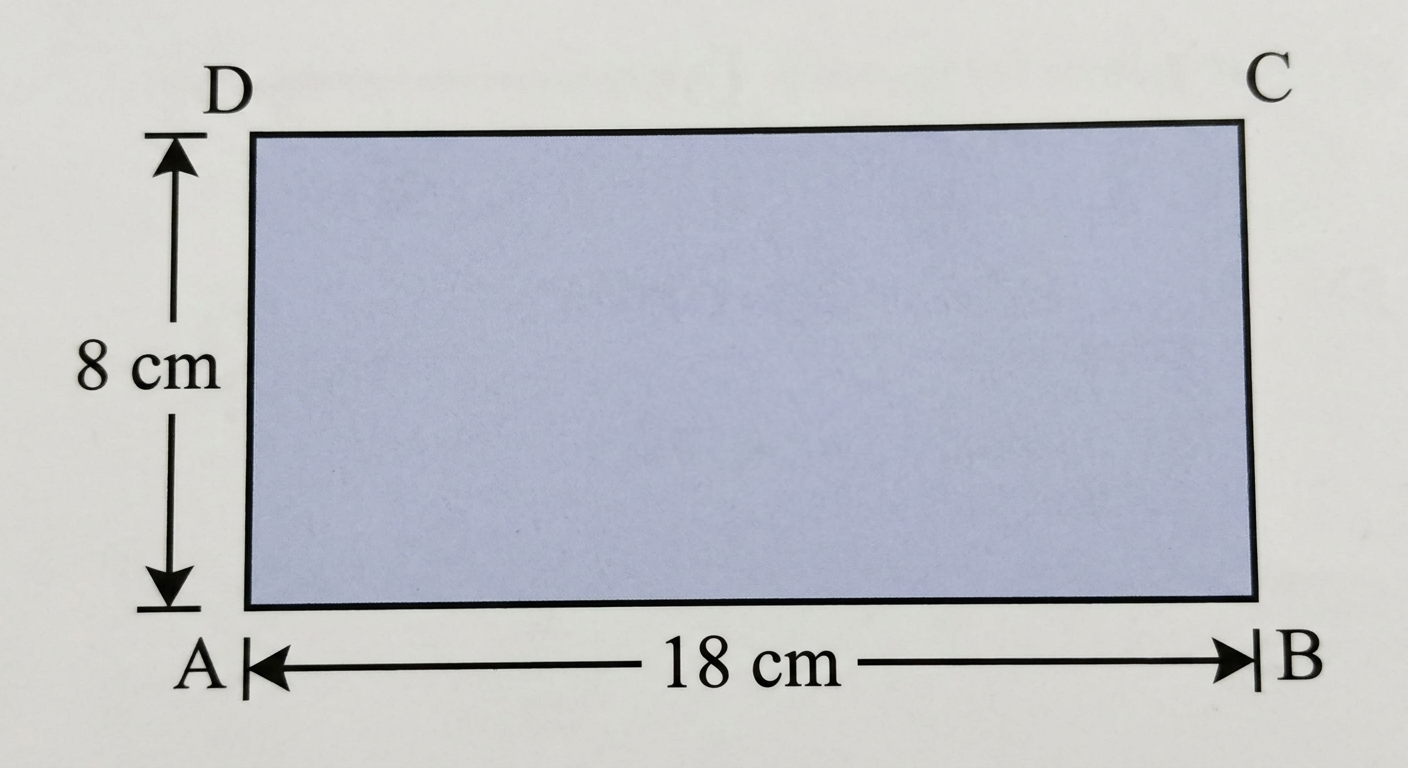

$\text{Area} = L \times W = 144\text{ cm}^2$ Diagram 1

Choosing a convenient width $W = 8\text{ cm}$ :

\begin{aligned} L \times 8 &= 144 \\[0.6em] L &= \dfrac{144}{8} = 18\text{ cm} \end{aligned}

Thus, the equivalent rectangle has length $L = 18\text{ cm}$ and width $W = 8\text{ cm}$ .

Step 2 · Determine Dimensions of the Trapezium

When converting the rectangle to a trapezium of equal area:

The width of the rectangle becomes the height of the trapezium: $h = W = 8\text{ cm}$
The length of the rectangle is the average of the parallel sides, so the sum of the parallel sides is:

$a + b = 2L = 2 \times 18 = 36\text{ cm}$

Choose two side lengths $a$ and $b$ that add up to $36\text{ cm}$ , for example:

$a = 10\text{ cm}$
$b = 26\text{ cm}$

Step 3 · Construct the Trapezium and Verify Area

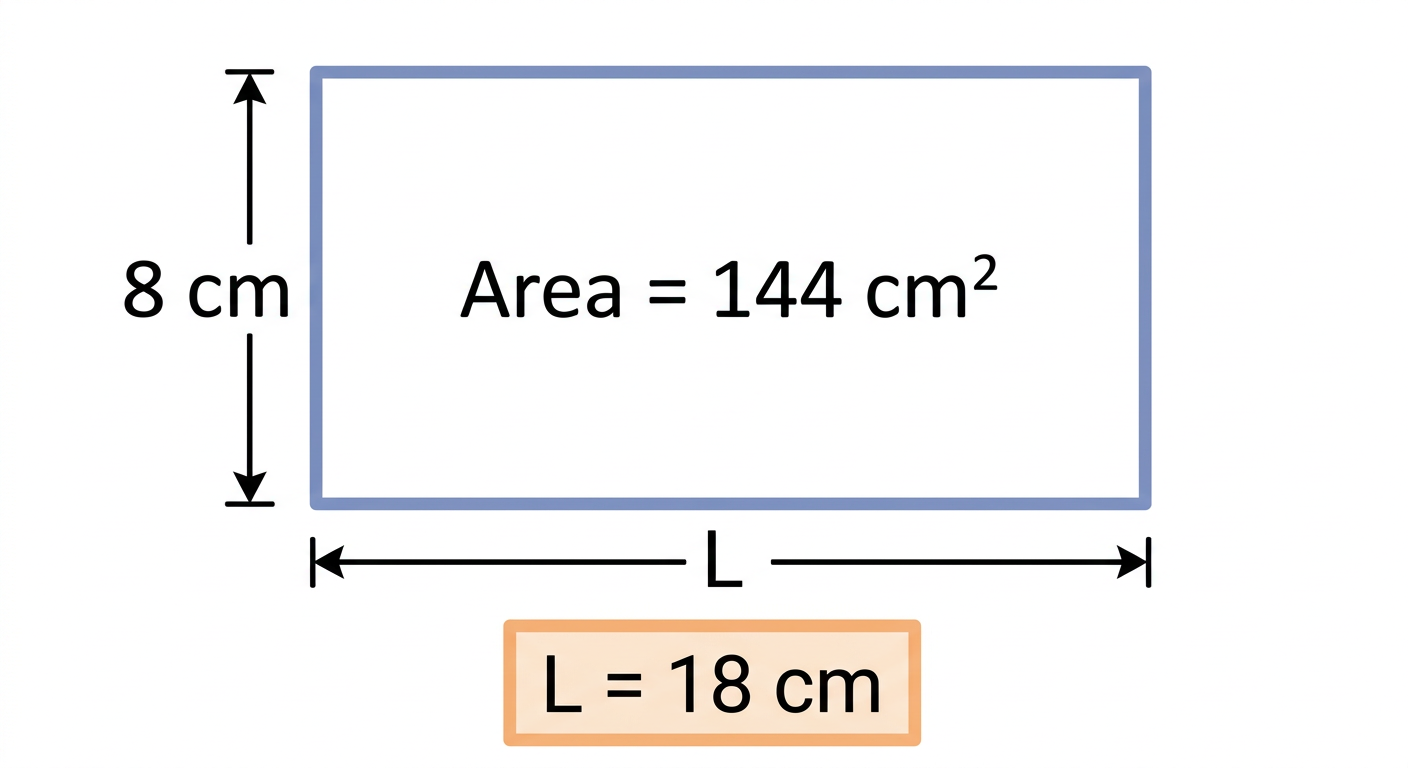

Diagram 2

Steps of Construction:

Draw a line segment $\text{AB} = 10\text{ cm}$ .
At point $\text{A}$ , draw a perpendicular line $\text{AX}$ and mark point $\text{D}$ on it such that $\text{AD} = 8\text{ cm}$ .
Draw a line $\text{DY}$ parallel to $\text{AB}$ .
At point $\text{B}$ , draw a perpendicular to $\text{AB}$ meeting $\text{DY}$ at point $\text{E}$ (forming rectangle $\text{ABED}$ with $\text{DE} = 10\text{ cm}$ ).
Extend line $\text{DY}$ beyond $\text{E}$ to a point $\text{C}$ such that $\text{EC} = 16\text{ cm}$ , making $\text{DC} = \text{DE} + \text{EC} = 10 + 16 = 26\text{ cm}$ .
Join point $\text{B}$ to point $\text{C}$ .

Quadrilateral $\text{ABCD}$ is the required trapezium.

Verification:

\begin{aligned} \text{Area of trapezium} &= \dfrac{1}{2} \times (a + b) \times h \\[0.6em] &= \dfrac{1}{2} \times (10 + 26) \times 8 \\[0.6em] &= \dfrac{1}{2} \times 36 \times 8 \\[0.6em] &= 18 \times 8 \\[0.6em] &= 144\text{ cm}^2 \end{aligned}

Answer

A trapezium with parallel sides of lengths $10\text{ cm}$ and $26\text{ cm}$ and height $8\text{ cm}$ has an area of $144\text{ cm}^2$ .

Common Mistakes

Confusing Length with Sum of Parallel Sides: The rectangle's length $L$ equals the average of the parallel sides $\dfrac{a+b}{2}$ , not the sum $a+b$ . Therefore, $a+b = 2L$ .
Incorrect Dimension Selection: Selecting parallel sides $a$ and $b$ whose sum does not equal $2L = 36\text{ cm}$ will result in an incorrect area.
