Question 14

Gopal needs to carry water from the river to his water tank. He starts from his house. What is the shortest path he can take from his house to the river and then to the water tank? Roughly recreate the map in your notebook and trace the shortest path.

Solution

Understand the Question

To find the shortest path from a starting point (House, $H$ ) to a line (River) and then to a destination (Water Tank, $T$ ), we use the reflection principle.
Reflecting point $T$ across the river line to $T'$ converts the bent path $H \to P \to T$ into a single straight line $H \to P \to T'$ .
The intersection of the straight line $HT'$ with the river gives the exact point $P$ Gopal must visit on the river bank.

Step 1 · Reflect the Water Tank Across the River

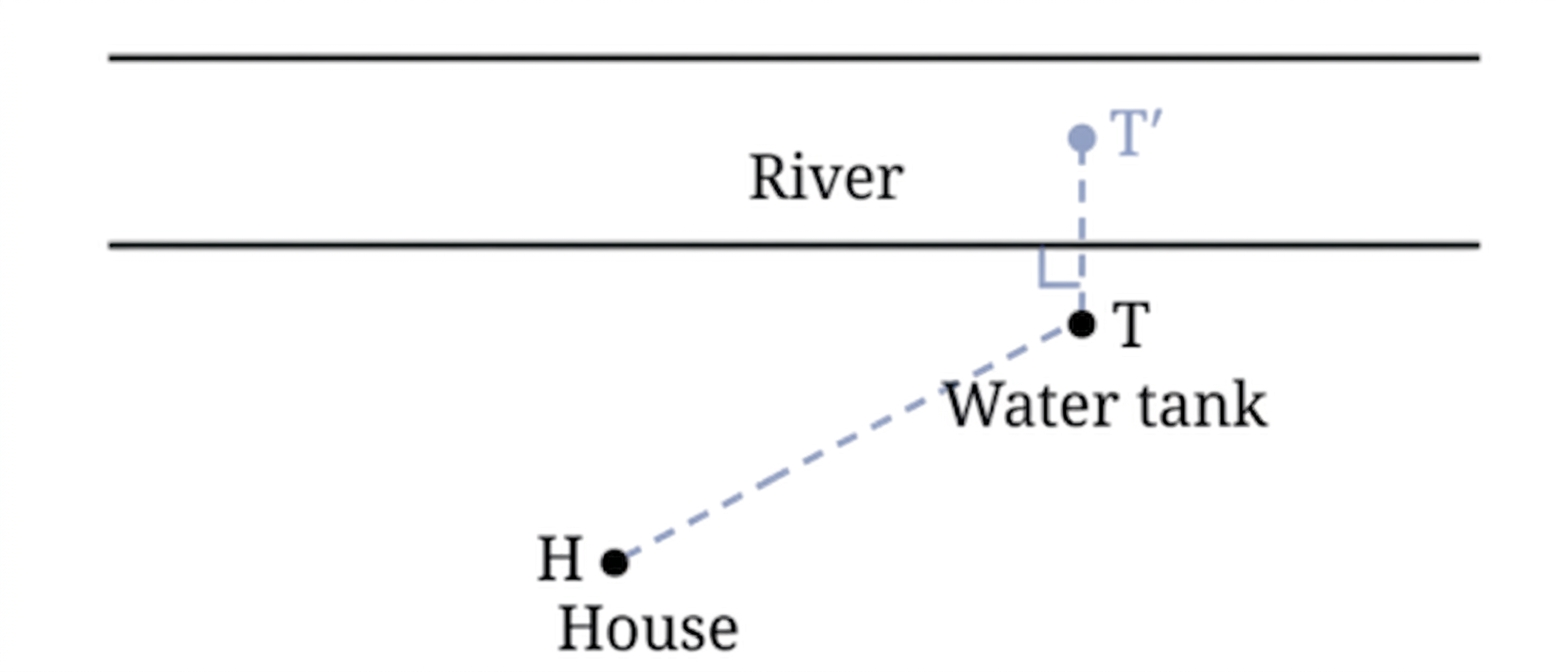

Diagram 1

Reflect the position of the Water Tank ( $T$ ) across the line representing the river to locate point $T'$ .

Point $T'$ lies at the same perpendicular distance from the river on the opposite side.

Step 2 · Draw the Straight Path to the Reflected Point

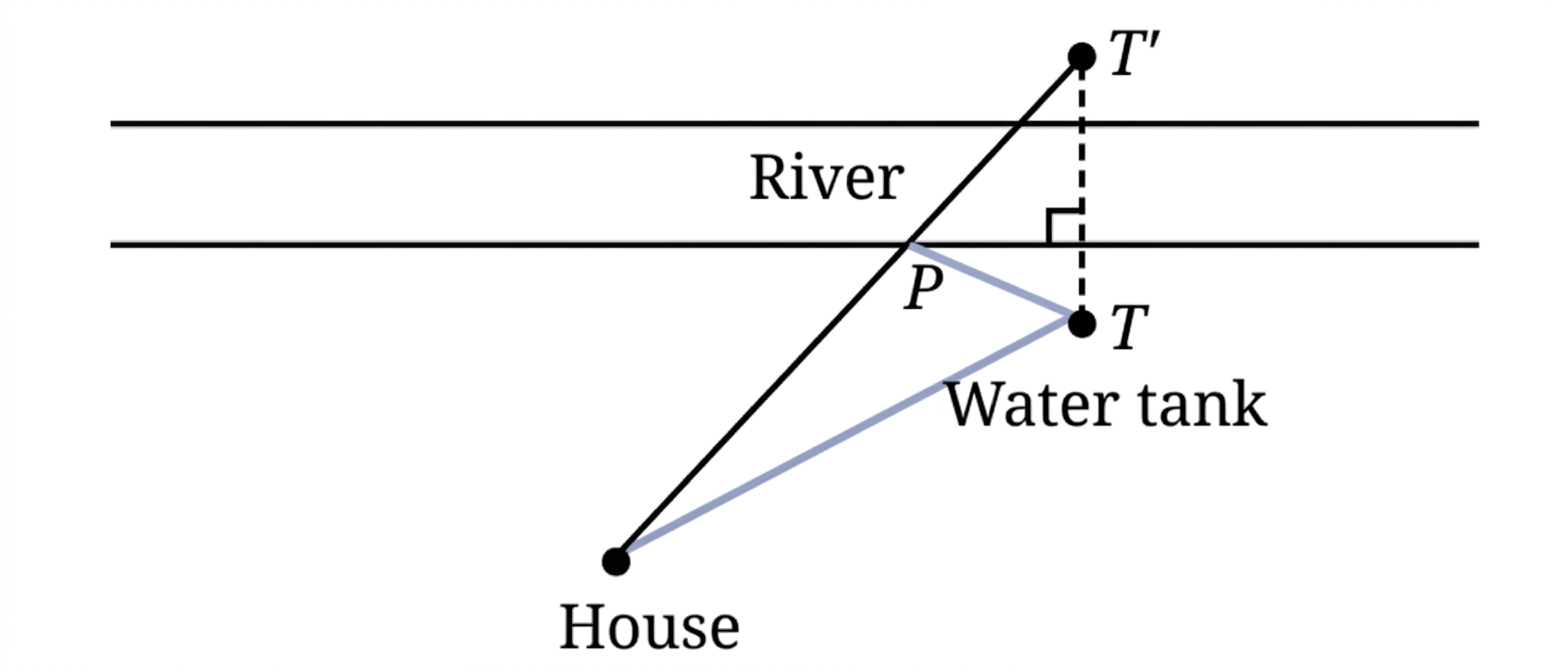

Diagram 2

Draw a straight line connecting the House ( $H$ ) directly to the reflected Water Tank ( $T'$ ).

Since a straight line represents the shortest distance between two points, segment $HT'$ gives the minimum path length.

Step 3 · Identify the River Point and Trace the Path

Diagram 3

Let $P$ be the point where the line $HT'$ intersects the river bank.

Since $PT = PT'$ , the total distance: $\text{Length}(H\text{-}P\text{-}T) = HP + PT = HP + PT' = HT'$

Therefore, the shortest path is:

Walk in a straight line from House ( $H$ ) to point $P$ on the river.
Walk in a straight line from point $P$ to the Water Tank ( $T$ ).

Answer

Trace the path by reflecting the Water Tank ( $T$ ) across the river to $T'$ , connecting $H$ to $T'$ to find intersection point $P$ on the river, and following the path $H \to P \to T$ .

Common Mistakes

Perpendicular Path Fallacy: Walking perpendicularly to the nearest point on the river first does not minimize the total combined distance $HP + PT$ .
Midpoint Assumption: Choosing the midpoint of the river bank between the two projections rather than finding the exact reflection point $T'$ .
