Question 32

[Śulba-Sūtras] Give a method to convert an isosceles trapezium to a rectangle using dissection.

Solution

Understand the Question

An isosceles trapezium can be transformed into an equivalent rectangle of the same area using geometric dissection (as described in the ancient Indian mathematical texts, the Śulba-Sūtras). By dropping perpendiculars from the top vertices to the base, the trapezium is split into a central rectangle and two congruent right-angled triangles. Cutting one of these triangular wings and reattaching it at the opposite end produces a rectangle with height $h$ and length equal to the average of the two parallel sides, $\dfrac{a + b}{2}$ .

Step 1 · Define the Trapezium and its Area

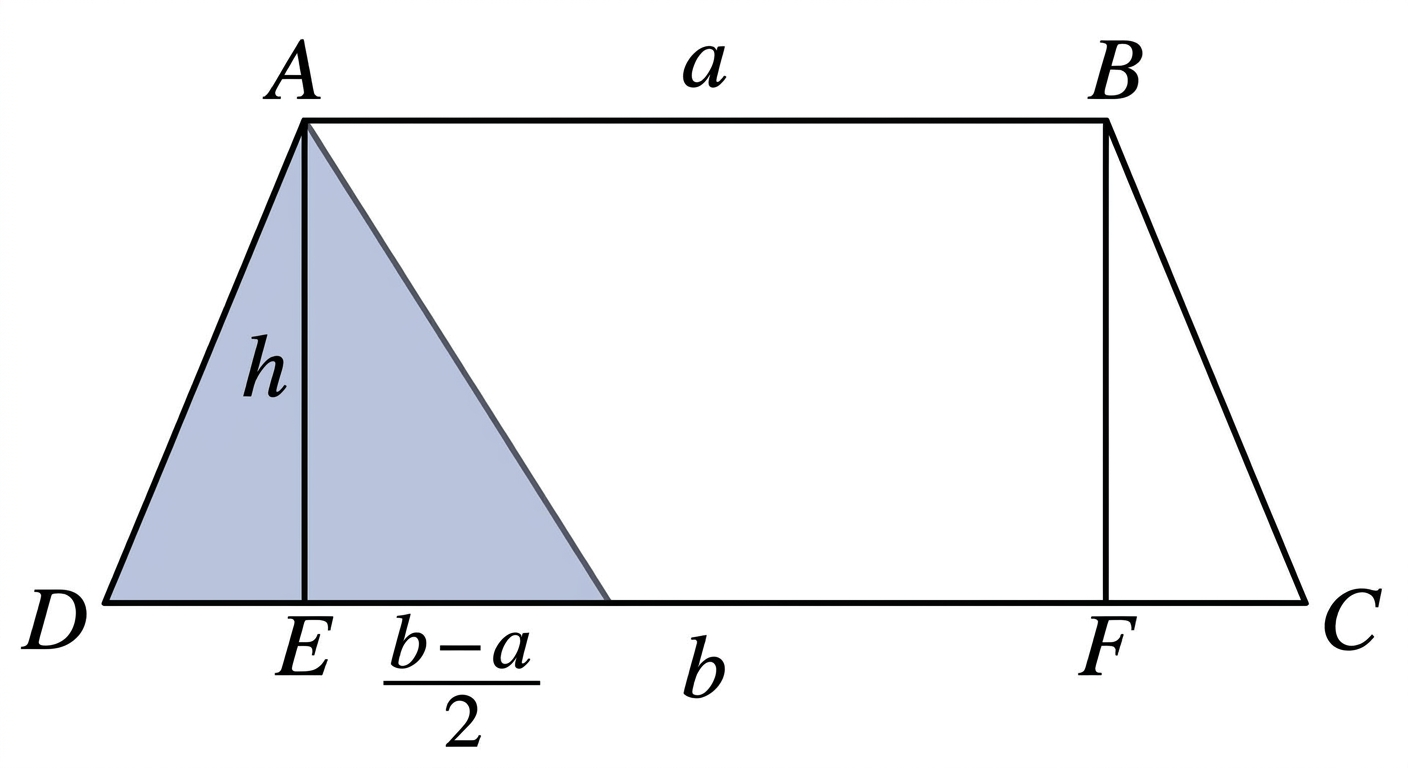

Let $\text{ABCD}$ be an isosceles trapezium with parallel sides $\text{AB} = a$ and $\text{DC} = b$ , height $h$ , and non-parallel sides $\text{AD} = \text{BC}$ . Diagram 1

The area of the trapezium is:

\begin{aligned} \text{Area}_{\text{trapezium}} &= \dfrac{1}{2} \times (\text{AB} + \text{DC}) \times h \\[0.6em] &= \dfrac{1}{2} \times (a + b) \times h \\[0.6em] &= \dfrac{(a + b)h}{2} \end{aligned}

Step 2 · Dissect and Rearrange into a Rectangle

Draw perpendiculars $\text{AE}$ and $\text{BF}$ from vertices $\text{A}$ and $\text{B}$ to base $\text{DC}$ , each of length $h$ .

This divides the trapezium into three parts:

Right triangle $\triangle \text{ADE}$
Rectangle $\text{AEFB}$ with $\text{EF} = \text{AB} = a$
Right triangle $\triangle \text{BFC}$

Since $\text{ABCD}$ is an isosceles trapezium, $\triangle \text{ADE} \cong \triangle \text{BFC}$ :

\begin{aligned} \text{DE} = \text{FC} &= \dfrac{\text{DC} - \text{AB}}{2} \\[0.6em] &= \dfrac{b - a}{2} \end{aligned}

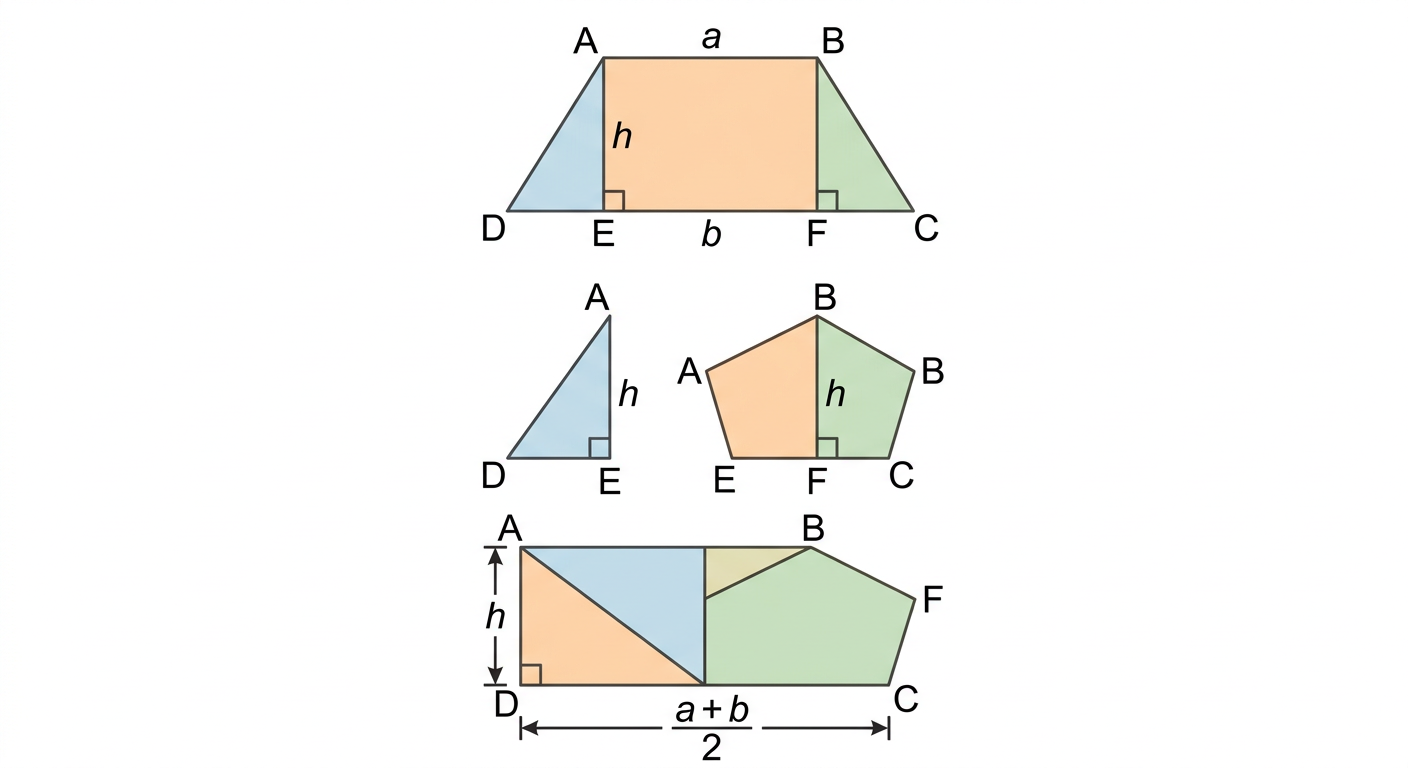

Now, cut off $\triangle \text{ADE}$ from the left side and attach it to the right side such that $\text{AE}$ aligns with $\text{BF}$ . Diagram 2

Dimensions of the resulting rectangle:

$\text{Height}_{\text{rectangle}} = h$

\begin{aligned} \text{Length}_{\text{rectangle}} &= \text{EF} + \text{FC} \\[0.6em] &= a + \dfrac{b - a}{2} \\[0.6em] &= \dfrac{2a + b - a}{2} \\[0.6em] &= \dfrac{a + b}{2} \end{aligned}

\begin{aligned} \text{Area}_{\text{rectangle}} &= \text{Length}_{\text{rectangle}} \times \text{Height}_{\text{rectangle}} \\[0.6em] &= \dfrac{a + b}{2} \times h \\[0.6em] &= \dfrac{(a + b)h}{2} \end{aligned}

Thus, the area is conserved, forming a rectangle with dimensions $\dfrac{a + b}{2} \times h$ .

Answer

Drop perpendiculars from the endpoints of the shorter base $\text{AB}$ to the longer base $\text{DC}$ , forming two congruent right triangles $\triangle \text{ADE}$ and $\triangle \text{BFC}$ and a rectangle $\text{AEFB}$ .

Cut off $\triangle \text{ADE}$ from the left and reattach it to the right along side $\text{BF}$ .
The resulting figure is a rectangle of length $\dfrac{a + b}{2}$ and height $h$ .

Common Mistakes

Congruence Requirement: This exact single-cut method works because the trapezium is isosceles (both end triangles are identical). For a non-isosceles trapezium, the two end triangles have different base lengths and cannot simply be shifted to match.
Base Calculation: The base of the new rectangle is the average of the two parallel sides $\dfrac{a+b}{2}$ , not the original full base $b$ or shorter base $a$ .
