Question 20

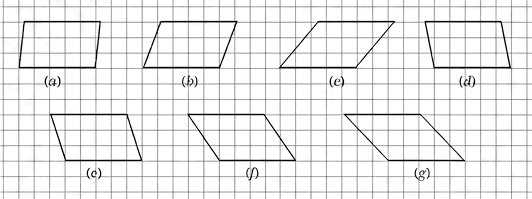

Observe the parallelograms in the figure below.

(i) What can we say about the areas of all these parallelograms?

(ii) What can we say about their perimeters? Which figure appears to have the maximum perimeter, and which has the minimum perimeter?

Solution

We will calculate the area and perimeter for each parallelogram by using the grid to find their dimensions.

Step 1 — Identify Base and Height

A parallelogram is a four-sided shape with opposite sides parallel. The base is the length of one side. The height is the perpendicular distance between the base and its opposite side.

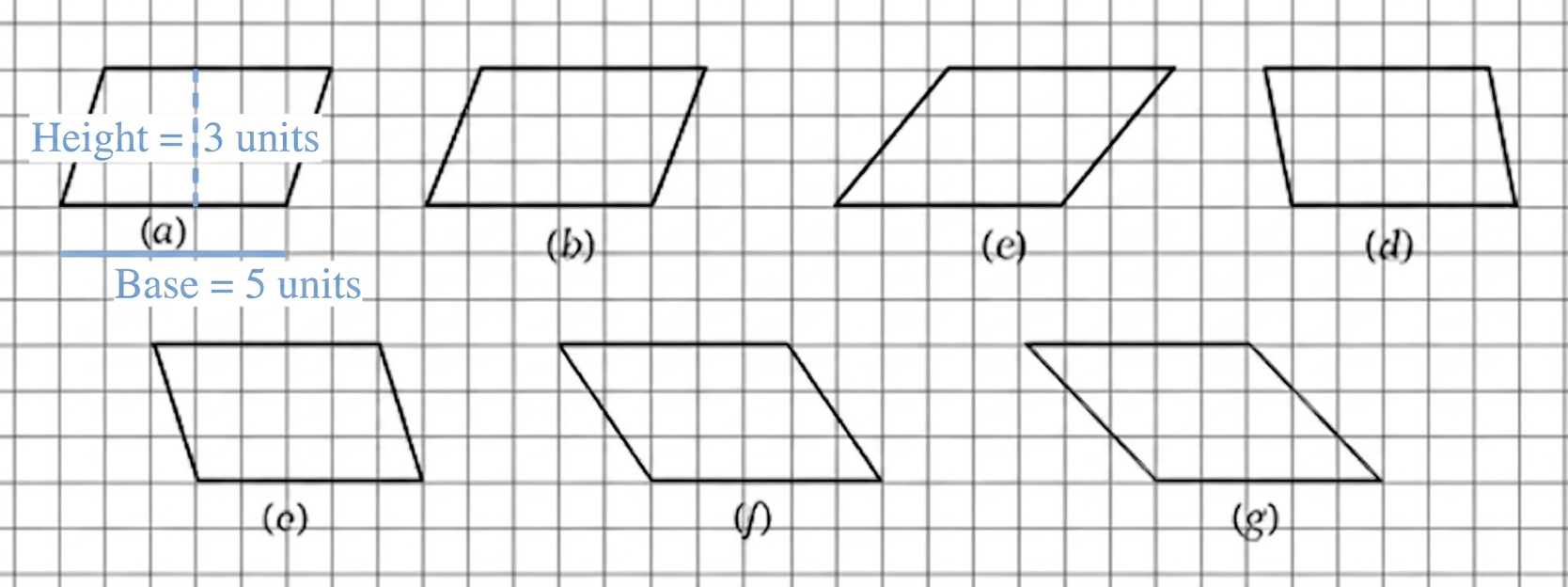

Let us look at each parallelogram (a) to (g). We can count the grid units for the base. The bottom side of each parallelogram is horizontal. Its length is 5 units. This is the base. The vertical distance between the top and bottom sides is 3 units. This is the height.

$\text{Base} = 5 \text{ units}$

$\text{Height} = 3 \text{ units}$

Diagram 1

Step 2 — Calculate the Area

The formula for the area of a parallelogram is base multiplied by height.

$\text{Area} = \text{Base} \times \text{Height}$

$\text{Area} = 5 \times 3$

$\boxed{15 \text{ sq. units}}$

Since all parallelograms have the same base (5 units) and the same height (3 units), their areas are all equal.

Step 3 — Determine Side Lengths for Perimeter

The perimeter of a parallelogram is the total length of all its four sides. Since opposite sides are equal, the perimeter is twice the sum of the lengths of two adjacent sides.

$\text{Perimeter} = 2 \times (\text{Base} + \text{Slanted Side Length})$

The base length is 5 units for all figures. We need to find the length of the slanted side. We can use the Pythagorean theorem for this. Imagine a right-angled triangle formed by the height, the horizontal shift, and the slanted side. Let 'h' be the height (3 units). Let 'x' be the horizontal shift of the top base relative to the bottom base. The length of the slanted side 's' is $\sqrt{x^2 + h^2}$ .

Let's find 'x' for each parallelogram:

(a): The top-left corner is 1 unit left of the bottom-left corner. So, $x = 1$ .
(b): The top-left corner is 2 units left of the bottom-left corner. So, $x = 2$ .
(c): The top-left corner is 3 units left of the bottom-left corner. So, $x = 3$ .
(d): This is a rectangle. The top-left corner is directly above the bottom-left corner. So, $x = 0$ .
(e): The top-left corner is 4 units left of the bottom-left corner. So, $x = 4$ .
(f): The top-left corner is 5 units left of the bottom-left corner. So, $x = 5$ .
(g): The top-left corner is 6 units left of the bottom-left corner. So, $x = 6$ .

Step 4 — Calculate and Compare Perimeters

Now we calculate the slanted side length and then the perimeter for each figure.

For figure (d) (rectangle): $\text{Slanted side length} = \sqrt{0^2 + 3^2} = \sqrt{9} = 3 \text{ units}$

$\text{Perimeter (d)} = 2 \times (5 + 3) = 2 \times 8 = 16 \text{ units}$

For figure (a): $\text{Slanted side length} = \sqrt{1^2 + 3^2} = \sqrt{1 + 9} = \sqrt{10} \text{ units}$

$\text{Perimeter (a)} = 2 \times (5 + \sqrt{10}) \text{ units}$

For figure (b): $\text{Slanted side length} = \sqrt{2^2 + 3^2} = \sqrt{4 + 9} = \sqrt{13} \text{ units}$

$\text{Perimeter (b)} = 2 \times (5 + \sqrt{13}) \text{ units}$

For figure (c): $\text{Slanted side length} = \sqrt{3^2 + 3^2} = \sqrt{9 + 9} = \sqrt{18} \text{ units}$

$\text{Perimeter (c)} = 2 \times (5 + \sqrt{18}) \text{ units}$

For figure (e): $\text{Slanted side length} = \sqrt{4^2 + 3^2} = \sqrt{16 + 9} = \sqrt{25} = 5 \text{ units}$

$\text{Perimeter (e)} = 2 \times (5 + 5) = 2 \times 10 = 20 \text{ units}$

For figure (f): $\text{Slanted side length} = \sqrt{5^2 + 3^2} = \sqrt{25 + 9} = \sqrt{34} \text{ units}$

$\text{Perimeter (f)} = 2 \times (5 + \sqrt{34}) \text{ units}$

For figure (g): $\text{Slanted side length} = \sqrt{6^2 + 3^2} = \sqrt{36 + 9} = \sqrt{45} \text{ units}$

$\text{Perimeter (g)} = 2 \times (5 + \sqrt{45}) \text{ units}$

To compare the perimeters, we compare the lengths of the slanted sides. As the horizontal shift 'x' increases, the slanted side length $\sqrt{x^2 + 3^2}$ increases. This makes the perimeter larger. The smallest 'x' is 0 for figure (d). So, figure (d) has the minimum perimeter. The largest 'x' is 6 for figure (g). So, figure (g) has the maximum perimeter.

Answer

(i) All the parallelograms (a) to (g) have the same base (5 units) and the same height (3 units). The area of a parallelogram is base × height. So, Area = 5 × 3 = 15 sq. units. Therefore, all these parallelograms have equal areas. (ii) Their perimeters are different. As the slant of the sides increases (meaning the horizontal shift 'x' increases), the length of the slanted side increases, and thus the perimeter increases. Figure (d) (which is a rectangle, with no slant) has the minimum perimeter. Figure (g) (which has the most slanted sides) has the maximum perimeter.
