Question 1

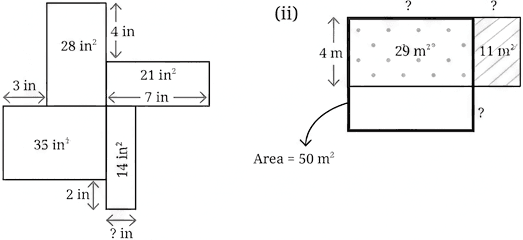

Identify the missing sidelengths.

Solution

We will find the missing side lengths by using the formula for the area of a rectangle: Area = length × width.

Step 1 — Finding the missing side length in figure (i)

Let us find the width of the top rectangle first. The area of the top rectangle is $28 \text{ in}^2$ . Its height is $4 \text{ in}$ . Let its width be $W_{\text{top}}$ .

$W_{\text{top}} = \text{Area} / \text{Height}$

$W_{\text{top}} = 28 \text{ in}^2 / 4 \text{ in}$

$\boxed{W_{\text{top}} = 7 \text{ in}}$

Next, let us find the width of the bottom rectangle. The area of the bottom rectangle is $14 \text{ in}^2$ . Its height is $2 \text{ in}$ . Let the missing side length, which is its width, be $W_{\text{bottom}}$ .

$W_{\text{bottom}} = \text{Area} / \text{Height}$

$W_{\text{bottom}} = 14 \text{ in}^2 / 2 \text{ in}$

$\boxed{W_{\text{bottom}} = 7 \text{ in}}$

The question mark in figure (i) refers to the width of the bottom rectangle.

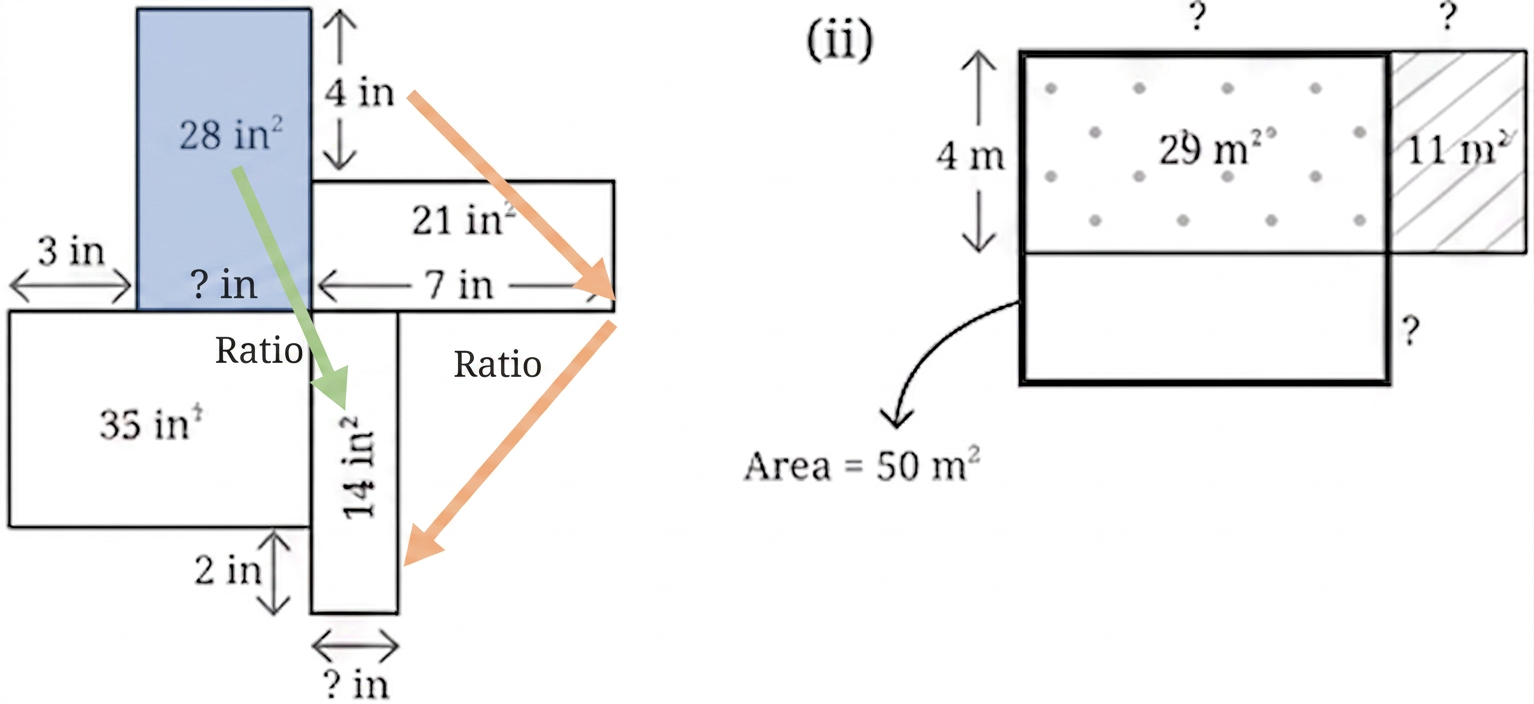

Diagram 1

Step 2 — Finding the missing side lengths in figure (ii)

Let us find the width of the top-left (dotted) rectangle. Its area is $29 \text{ m}^2$ . Its height is $4 \text{ m}$ . Let its width be $W_{\text{dotted}}$ . This is the first missing side length.

$W_{\text{dotted}} = \text{Area} / \text{Height}$

$W_{\text{dotted}} = 29 \text{ m}^2 / 4 \text{ m}$

$\boxed{W_{\text{dotted}} = 7.25 \text{ m}}$

Next, let us find the width of the top-right (striped) rectangle. Its area is $11 \text{ m}^2$ . Its height is the same as the dotted rectangle, which is $4 \text{ m}$ . Let its width be $W_{\text{striped}}$ . This is the second missing side length.

$W_{\text{striped}} = \text{Area} / \text{Height}$

$W_{\text{striped}} = 11 \text{ m}^2 / 4 \text{ m}$

$\boxed{W_{\text{striped}} = 2.75 \text{ m}}$

Now, let us find the total width of the top part of the figure. Total width = $W_{\text{dotted}} + W_{\text{striped}}$ .

$\text{Total width} = 7.25 \text{ m} + 2.75 \text{ m}$

$\boxed{\text{Total width} = 10 \text{ m}}$

The bottom white rectangle has the same width as the total width of the top part, which is $10 \text{ m}$ . The total area of the entire figure is $50 \text{ m}^2$ . The area of the top part (dotted + striped) is $29 \text{ m}^2 + 11 \text{ m}^2 = 40 \text{ m}^2$ . Let us find the area of the bottom white rectangle.

$\text{Area}_{\text{bottom}} = \text{Total Area} - \text{Area}_{\text{top}}$

$\text{Area}_{\text{bottom}} = 50 \text{ m}^2 - 40 \text{ m}^2$

$\boxed{\text{Area}_{\text{bottom}} = 10 \text{ m}^2}$

Finally, let us find the height of the bottom white rectangle. Its area is $10 \text{ m}^2$ . Its width is $10 \text{ m}$ . Let its height be $H_{\text{bottom}}$ . This is the third missing side length.

$H_{\text{bottom}} = \text{Area}_{\text{bottom}} / \text{Width}_{\text{bottom}}$

$H_{\text{bottom}} = 10 \text{ m}^2 / 10 \text{ m}$

$\boxed{H_{\text{bottom}} = 1 \text{ m}}$

Diagram 2

Answer

(i) The missing side length is 7 in. (ii) The missing side lengths are 7.25 m (top-left width), 2.75 m (top-right width), and 1 m (bottom height).
