Question 6

Divide a square into 4 parts by drawing two perpendicular lines inside the square as shown in the figure.

Rearrange the pieces to get a larger square, with a hole inside.

You can try this activity by constructing the square using cardboard, thick chart paper, or similar materials.

Solution

FIO-6

Chapter: AREA OF POLYGONS
Class: 8 (Class 8)
Category: figure_it_out

Question

Divide a square into 4 parts by drawing two perpendicular lines inside the square as shown in the figure.

Rearrange the pieces to get a larger square, with a hole inside.

You can try this activity by constructing the square using cardboard, thick chart paper, or similar materials.

Question diagram(s):

Question diagram

This activity shows how to rearrange parts of a square.

Step 1 — Cutting the square

Let us start with a square piece of cardboard. Let its side length be $S$ .

Diagram 1

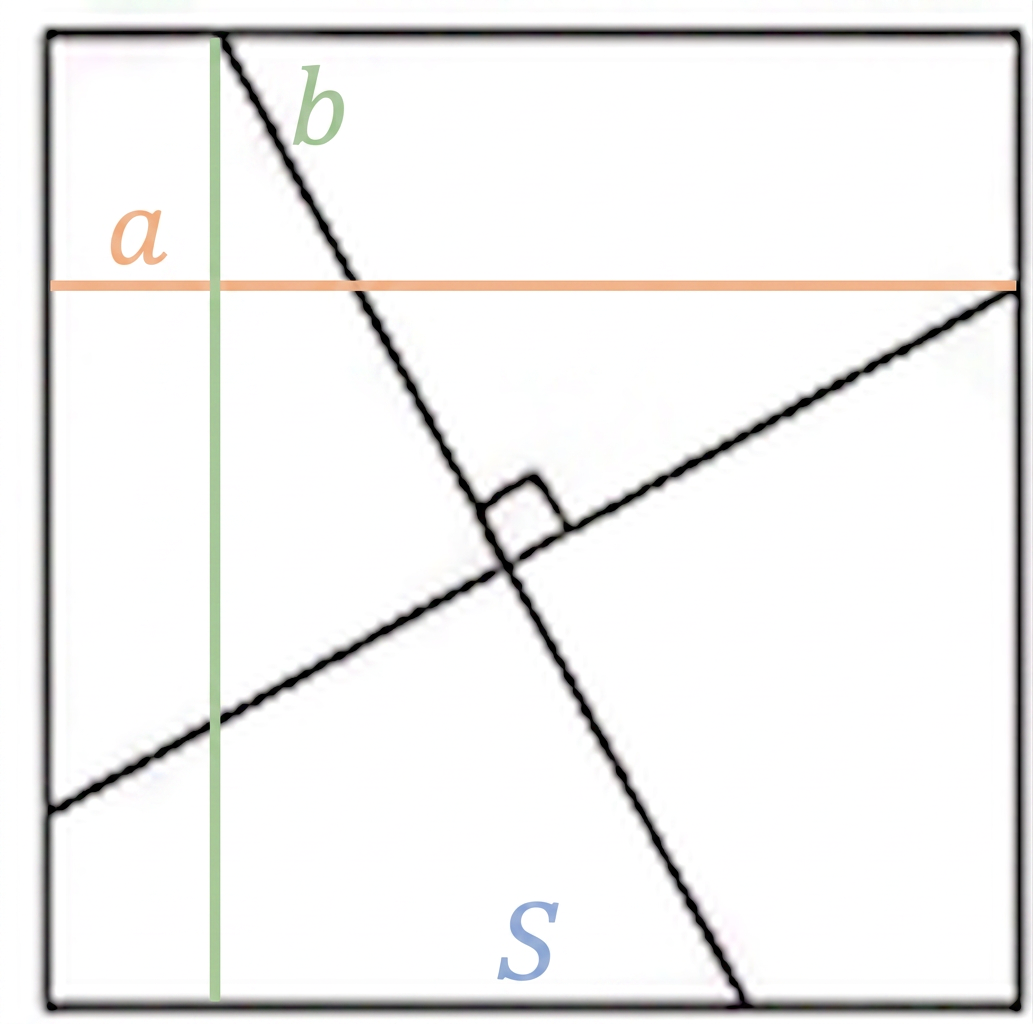

We draw two perpendicular lines inside the square. To get four rectangular pieces, these lines must be parallel to the sides of the square. Let the horizontal line be at a distance $a$ from the top edge. Let the vertical line be at a distance $b$ from the left edge. These two lines divide the original square into four rectangular pieces. The dimensions of these four pieces are:

Piece 1 (top-left): $a \times b$
Piece 2 (top-right): $a \times (S-b)$
Piece 3 (bottom-left): $(S-a) \times b$
Piece 4 (bottom-right): $(S-a) \times (S-b)$ We cut along these two lines to get the four pieces.

Step 2 — Rearranging the pieces

Now, we rearrange these four rectangular pieces to form a larger square with a square hole in the middle. To achieve a square hole, the horizontal and vertical cuts must be symmetric. This means the horizontal line is at the same distance from the top edge as the vertical line is from the left edge. So, we set $a = b$ . The four pieces now have dimensions:

Piece 1: $a \times a$ (a square)
Piece 2: $a \times (S-a)$
Piece 3: $(S-a) \times a$
Piece 4: $(S-a) \times (S-a)$ (a square)

We arrange these pieces as follows:

Place Piece 1 ( $a \times a$ ) in the top-left corner of our new layout.
Place Piece 2 ( $a \times (S-a)$ ) in the top-right corner.
Place Piece 3 ( $(S-a) \times a$ ) in the bottom-left corner.
Place Piece 4 ( $(S-a) \times (S-a)$ ) in the bottom-right corner.

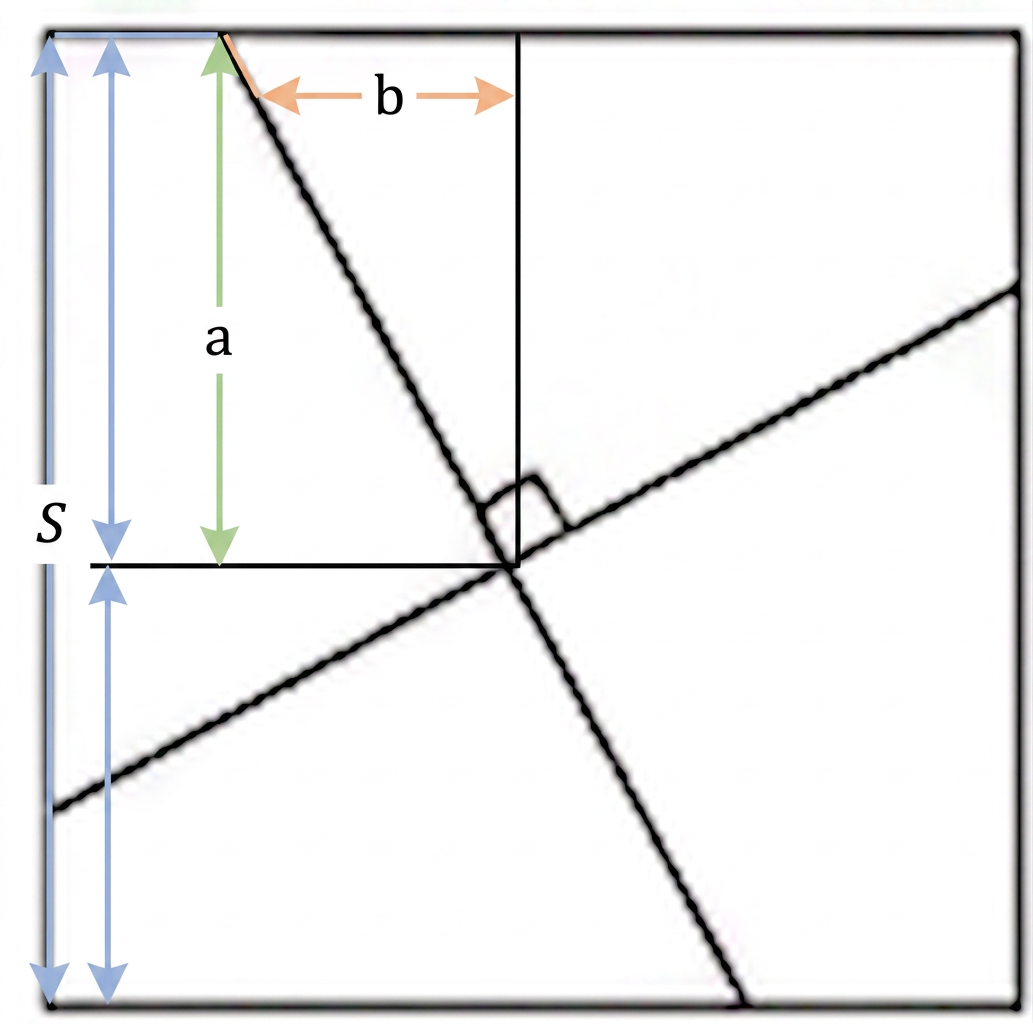

Diagram 2

Let us check the dimensions of this new arrangement:

The total width of the outer shape is $a + (S-a) = S$ .
The total height of the outer shape is $a + (S-a) = S$ . So, the outer shape is a square with side length $S$ , which is the same as the original square.

The hole in the middle has:

Width: $(S-a) - a = S-2a$ .
Height: $(S-a) - a = S-2a$ . So, the hole is a square with side length $S-2a$ .

This arrangement forms the original square with a square hole in the middle. The term "larger square" in the question refers to the overall layout being a square, and it contains a hole.

Answer

(i) The original square is divided into four rectangular pieces. (ii) To form a square hole, the two perpendicular lines must be drawn such that they are equidistant from their respective parallel sides (e.g., the horizontal line is 'a' from the top, and the vertical line is 'a' from the left). (iii) The four pieces are rearranged by placing them at the four corners of a layout. The outer boundary forms a square of side $S$ (the original square's side), and a square hole of side $S-2a$ is left in the middle.
