Question 27

[Śulba-Sūtras] Give a method to convert a rectangle into an isosceles triangle by dissection.

Solution

Understand the Question

A rectangle of length $L$ and width $W$ has an area of $L \times W$ .
To construct an isosceles triangle of equal area with height $W$ , its base must be $2L$ , since $\text{Area} = \dfrac{1}{2} \times \text{base} \times \text{height} = \dfrac{1}{2} \times 2L \times W = L \times W$ .
According to the Śulba-Sūtras, this is done by cutting the rectangle along its diagonal into two congruent right-angled triangles and rearranging them side-by-side to form an isosceles triangle.

Step 1 · Determine Triangle Dimensions

Let the rectangle have length $L$ and width $W$ .

$\text{Area of rectangle} = L \times W$

For an isosceles triangle with height equal to $W$ and the same area:

\begin{aligned} \text{Area of triangle} &= \text{Area of rectangle} \\[0.6em] \dfrac{1}{2} \times \text{base} \times W &= L \times W \\[0.6em] \dfrac{1}{2} \times \text{base} &= L \\[0.6em] \text{base} &= 2L \end{aligned}

Thus, the resulting isosceles triangle must have base $2L$ and height $W$ .

Step 2 · Dissect and Rearrange the Rectangle

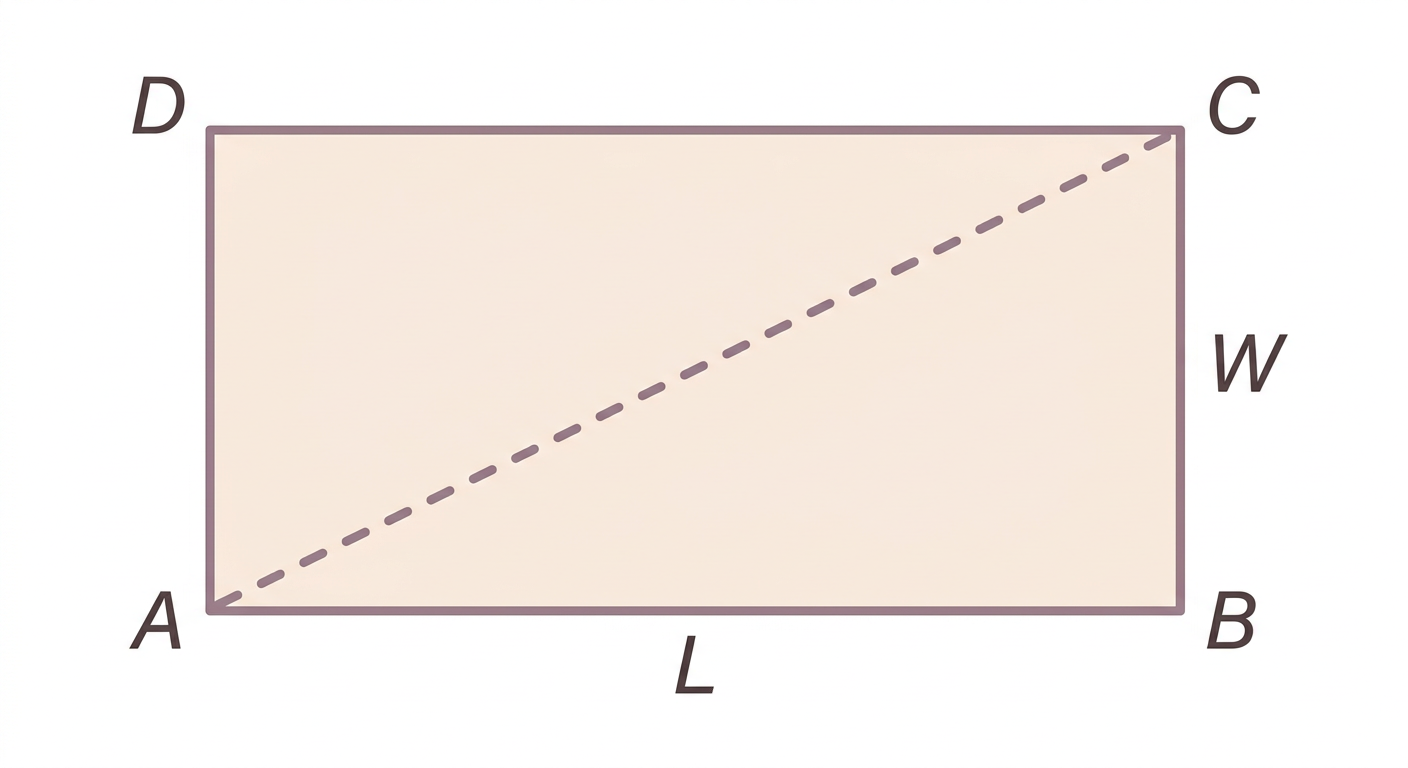

Consider rectangle $ABCD$ with length $AB = L$ and width $BC = W$ .

Cut the rectangle along its diagonal $AC$ to obtain two identical right triangles: $\triangle ABC$ and $\triangle ADC$ .

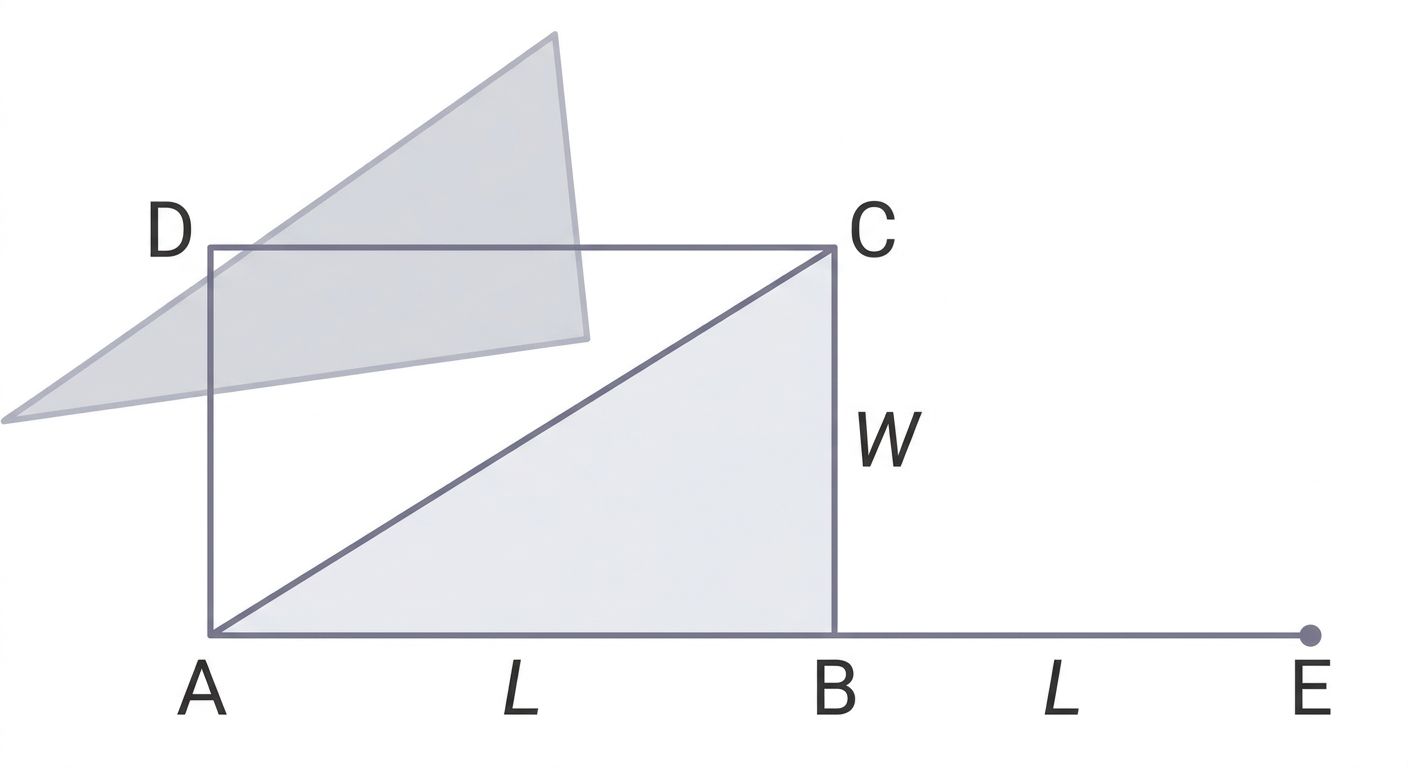

Extend line segment $AB$ to point $E$ such that $BE = AB = L$ .
Move $\triangle ADC$ and place it as $\triangle BCE$ , aligning side $AD$ along $BC$ and side $DC$ along the extension $BE$ .

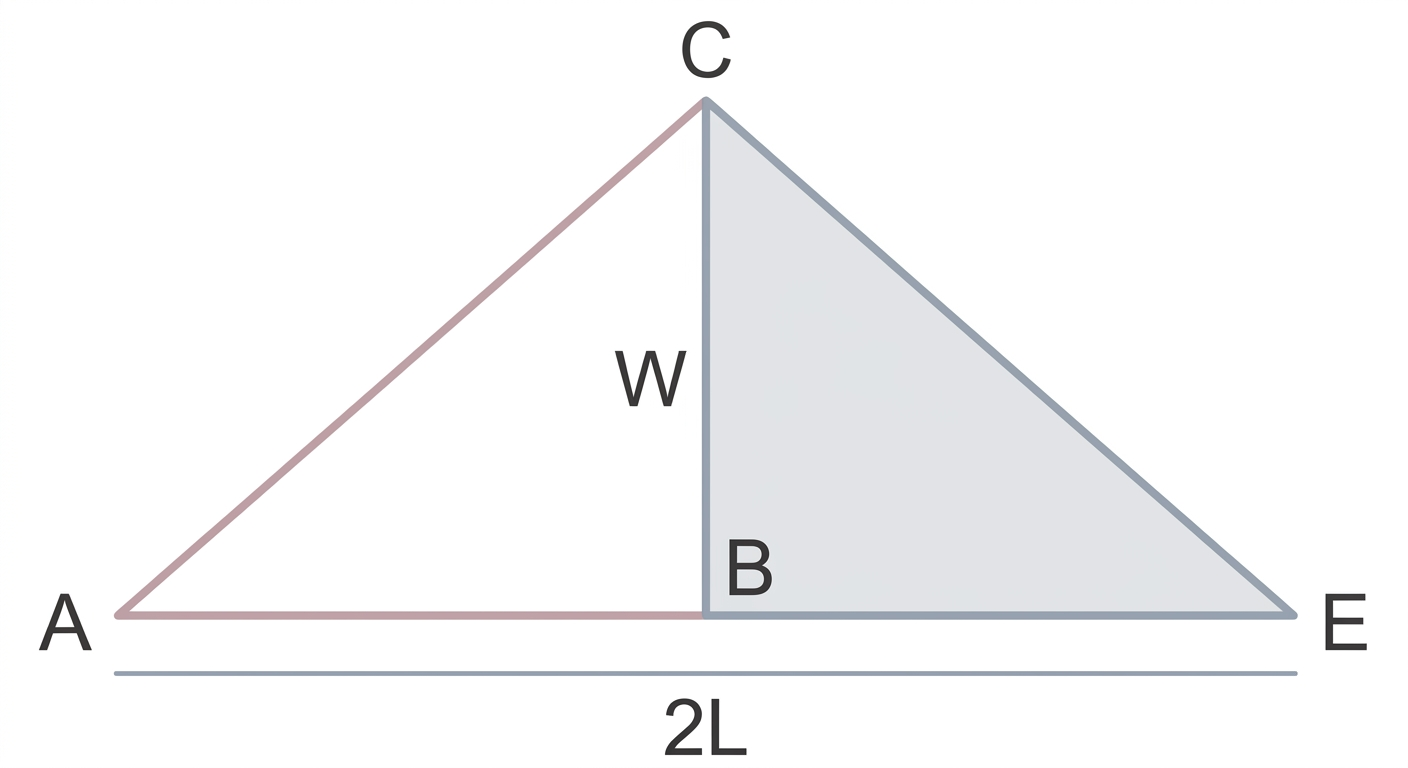

The combined shape is triangle $\triangle ACE$ with:

\begin{aligned} \text{Base } AE &= AB + BE = L + L = 2L \\[0.6em] \text{Height} &= BC = W \end{aligned}

Since $B$ is the midpoint of base $AE$ and $BC \perp AE$ , the two sides $AC$ and $CE$ are equal, making $\triangle ACE$ an isosceles triangle.

\begin{aligned} \text{Area}(\triangle ABC) &= \dfrac{1}{2} \times AB \times BC = \dfrac{1}{2} \times L \times W \\[0.6em] \text{Area}(\triangle BCE) &= \dfrac{1}{2} \times BE \times BC = \dfrac{1}{2} \times L \times W \\[0.6em] \text{Total Area}(\triangle ACE) &= \left(\dfrac{1}{2} \times L \times W\right) + \left(\dfrac{1}{2} \times L \times W\right) = L \times W \end{aligned}

Answer

Cut rectangle $ABCD$ (length $L$ , width $W$ ) along diagonal $AC$ into $\triangle ABC$ and $\triangle ADC$ . Extend $AB$ to $E$ such that $BE = L$ , and reposition $\triangle ADC$ to $\triangle BCE$ . The resulting figure $\triangle ACE$ is an isosceles triangle with base $2L$ , height $W$ , and area $L \times W$ .

Common Mistakes

Unequal base segments: Forgetting to set $BE = AB = L$ , which is required for $BC$ to be the perpendicular bisector so that the resulting triangle is strictly isosceles ( $AC = CE$ ).
Incorrect edge alignment: Misaligning the rotated triangle so that the right angles do not match along the base, preventing a single straight base line $AE$ from forming.
