Question 17
What type of a quadrilateral is one in which the opposite sides are equal? Justify your answer.
Hint: Draw a diagonal and check for congruent triangles.
If a quadrilateral has opposite sides equal, we can show it is a parallelogram.

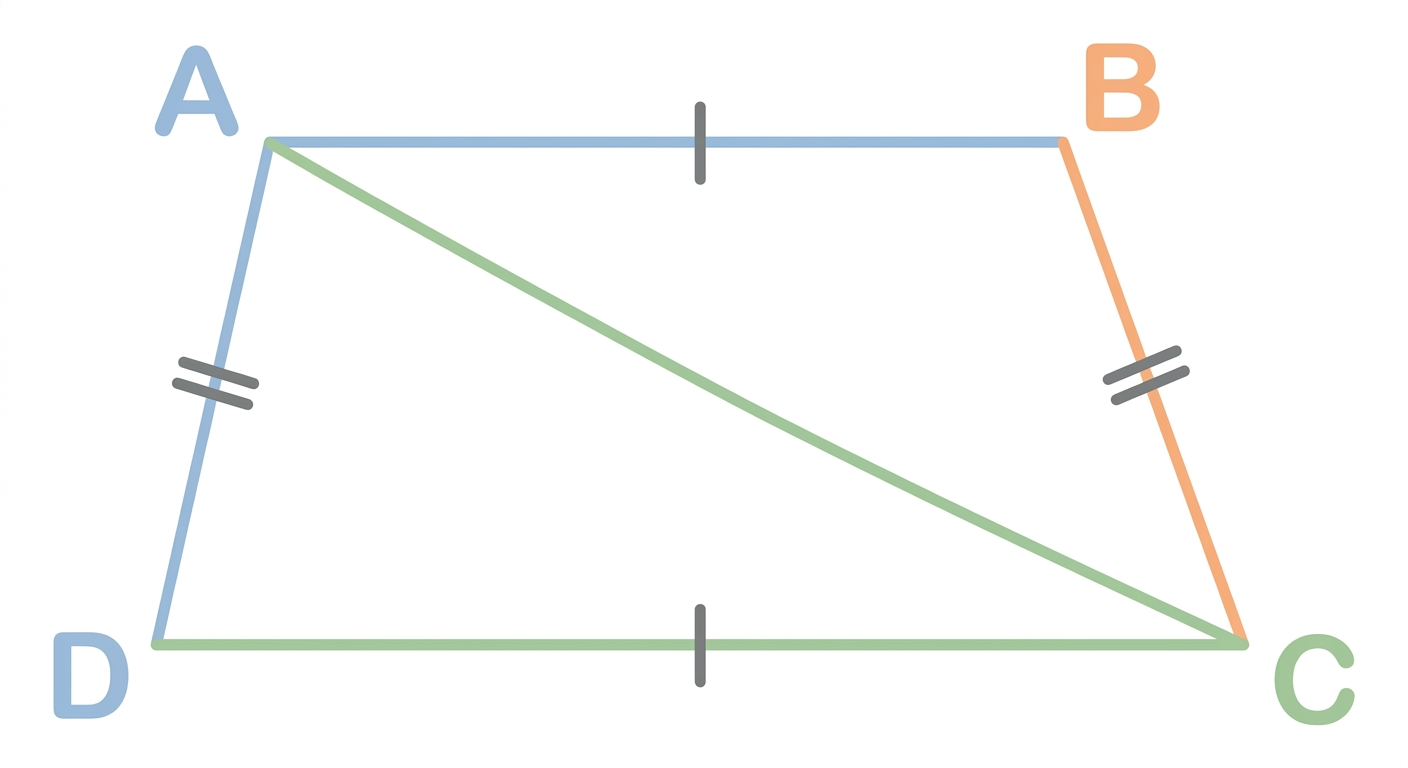

Step 1 — Draw and label
Let us draw a quadrilateral. We will name its vertices A, B, C, and D in order. We are told that its opposite sides are equal in length. This means side AB is equal to side DC. Also, side AD is equal to side BC. Now, let us draw a line segment connecting vertex A to vertex C. This line is called a diagonal. This diagonal splits the quadrilateral into two triangles. These are triangle ABC and triangle CDA.
Step 2 — Check for congruent triangles
Let us compare the two triangles we just formed: and . We know some things about their sides. Side AB is equal to side CD. (This was given in the problem) Side BC is equal to side DA. (This was also given in the problem) Side AC is common to both triangles. So, AC is equal to CA. When three sides of one triangle are equal to the three corresponding sides of another triangle, we say the triangles are congruent. This is called the SSS (Side-Side-Side) congruence rule. So, is congruent to .
Step 3 — Find equal angles
When two triangles are congruent, all their corresponding parts are equal. This is often called CPCTC (Corresponding Parts of Congruent Triangles are Congruent). Let us look at the angles inside our triangles. Since , we know that: Angle BAC is equal to angle DCA. Angle BCA is equal to angle DAC.
Step 4 — Identify parallel lines
Now, let us think about lines and transversals. A transversal is a line that cuts across two or more other lines. Consider lines AB and DC. The diagonal AC acts as a transversal cutting these two lines. We found that angle BAC is equal to angle DCA. These are alternate interior angles. When alternate interior angles formed by a transversal are equal, the two lines are parallel. So, line AB is parallel to line DC.
Next, consider lines AD and BC. The diagonal AC also acts as a transversal cutting these two lines. We found that angle DAC is equal to angle BCA. These are also alternate interior angles. Since these alternate interior angles are equal, the lines AD and BC must be parallel. So, line AD is parallel to line BC.
Step 5 — Name the quadrilateral
We have shown that both pairs of opposite sides of the quadrilateral ABCD are parallel. A quadrilateral in which both pairs of opposite sides are parallel is called a parallelogram. Therefore, the quadrilateral ABCD is a parallelogram.
Answer
(i) The type of quadrilateral is a Parallelogram.
