Question 8

Using the diagonal properties, construct a rhombus whose diagonals are of lengths 4 cm and 5 cm.

Solution

Understand the Question

The diagonals of a rhombus are perpendicular bisectors of each other:
1. They intersect at their midpoints (bisect each other).
2. They meet at a right angle ( $90^\circ$ ).
To construct the rhombus with diagonals $4\text{ cm}$ $4 cm$ and $5\text{ cm}$ $5 cm$ :
1. Draw one diagonal of length $4\text{ cm}$ .
2. Construct its perpendicular bisector passing through midpoint $\text{O}$ .
3. Mark points $2.5\text{ cm}$ on either side of $\text{O}$ along the perpendicular bisector to get the second diagonal of length $5\text{ cm}$ .
4. Connect the four endpoints to form the rhombus.

Step 1 · Draw the First Diagonal

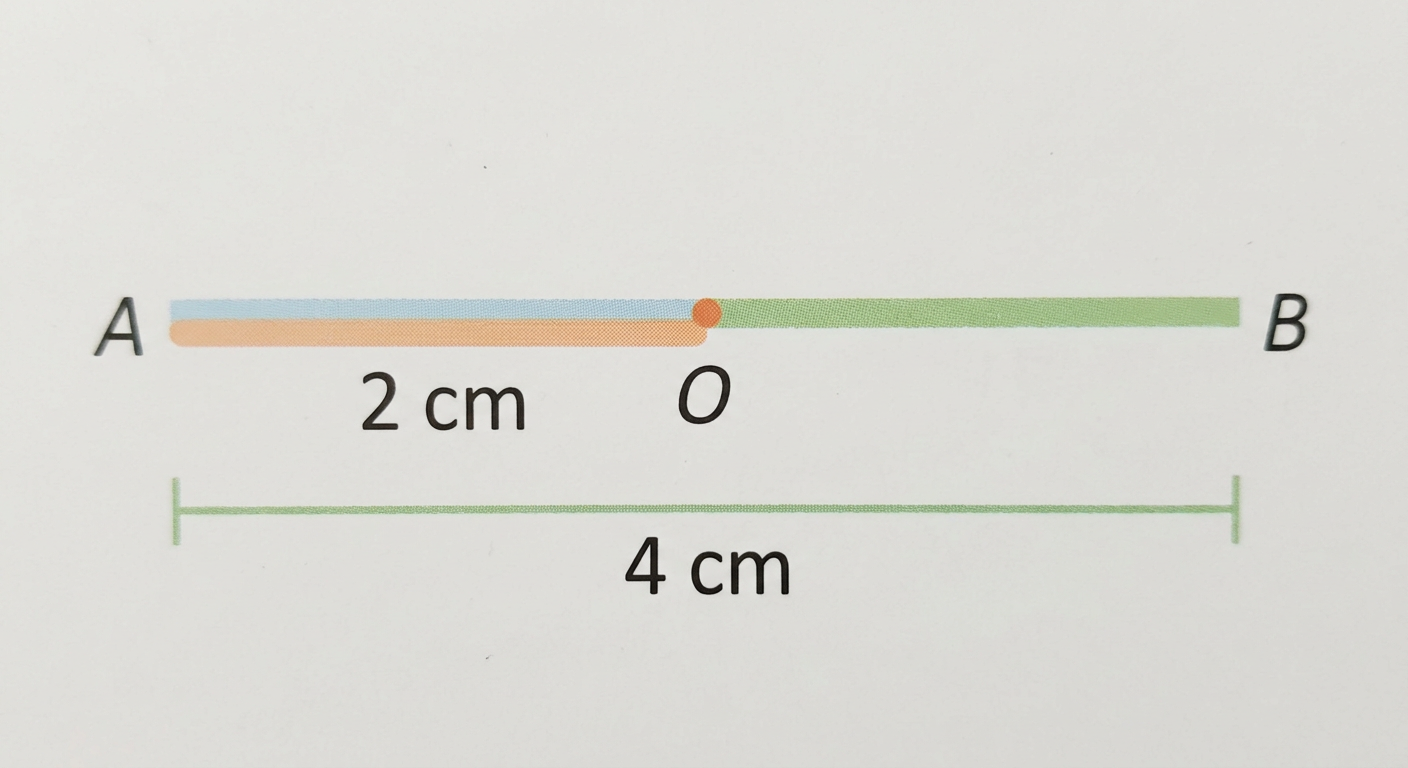

Draw a line segment $\text{AB} = 4\text{ cm}$ . Diagram 1

Step 2 · Locate the Midpoint

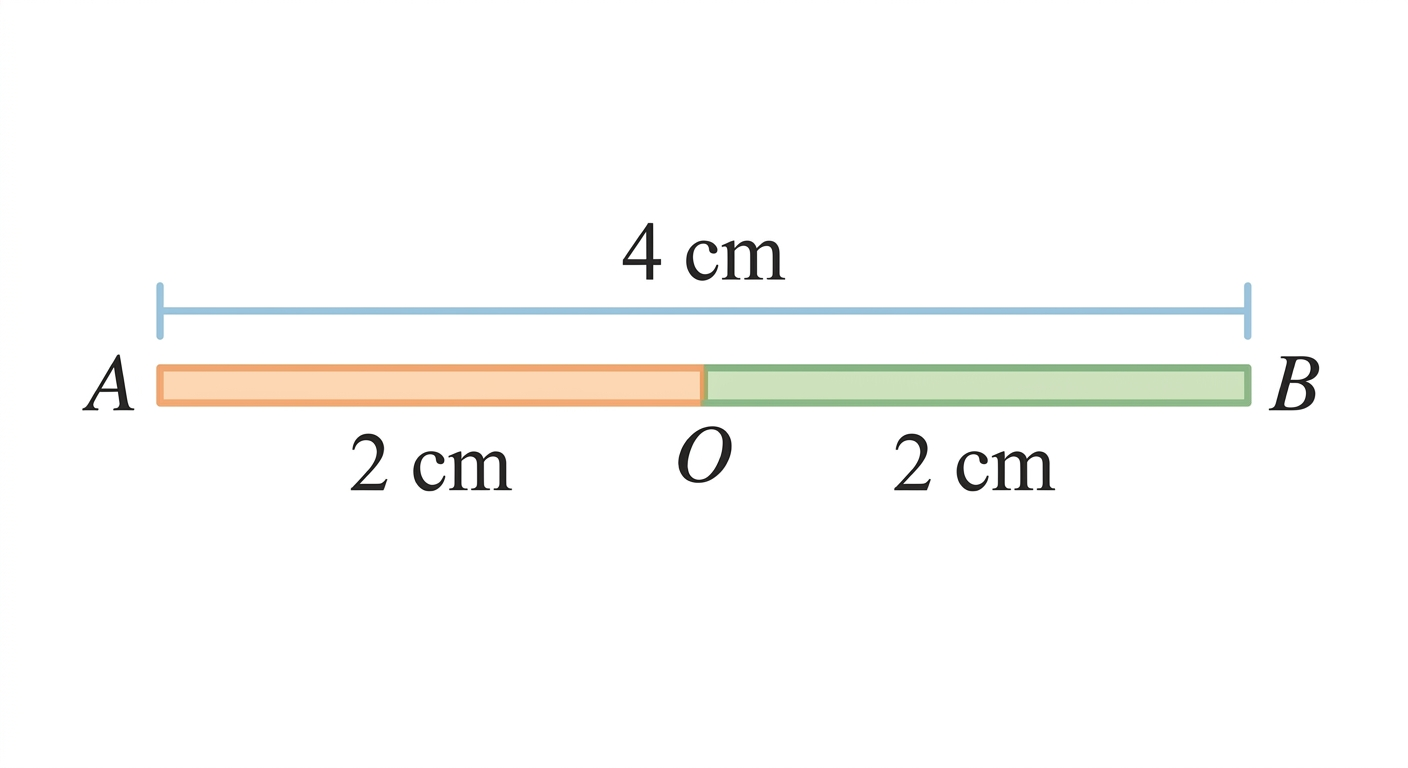

Since the diagonals bisect each other, locate the midpoint $\text{O}$ of $\text{AB}$ . Diagram 2

\begin{aligned} \text{AO} &= \dfrac{\text{AB}}{2} \\[0.6em] &= \dfrac{4\text{ cm}}{2} \\[0.6em] &= 2\text{ cm} \end{aligned}

Thus, $\text{AO} = \text{OB} = 2\text{ cm}$ .

Step 3 · Draw the Perpendicular Bisector

Draw a line perpendicular to $\text{AB}$ passing through midpoint $\text{O}$ . Diagram 3

Step 4 · Mark the Second Diagonal

The second diagonal has length $5\text{ cm}$ . Since it is bisected at $\text{O}$ : $\text{Half of diagonal} = \dfrac{5\text{ cm}}{2} = 2.5\text{ cm}$

On the perpendicular line, mark point $\text{C}$ above $\text{O}$ and point $\text{D}$ below $\text{O}$ such that $\text{OC} = \text{OD} = 2.5\text{ cm}$ .

$\text{CD} = 2.5\text{ cm} + 2.5\text{ cm} = 5\text{ cm}$ Diagram 4

Step 5 · Complete the Rhombus

Join points $\text{A}$ to $\text{C}$ , $\text{C}$ to $\text{B}$ , $\text{B}$ to $\text{D}$ , and $\text{D}$ to $\text{A}$ . Diagram 5

$\text{ACBD}$ is the required rhombus.

Answer

Rhombus $\text{ACBD}$ is constructed with diagonals $\text{AB} = 4\text{ cm}$ and $\text{CD} = 5\text{ cm}$ bisecting each other at right angles.

Common Mistakes

Marking Full Length Instead of Half: Marking $5\text{ cm}$ on each side of $\text{O}$ instead of halving it ( $2.5\text{ cm}$ ), resulting in a diagonal of $10\text{ cm}$ .
Incorrect Angle: Failing to ensure the second diagonal is perpendicular ( $90^\circ$ ) to the first, resulting in a general parallelogram rather than a rhombus.
