Question 11

Find the remaining angles in the following trapeziums—

Solution

Understand the Question

A trapezium is a quadrilateral with at least one pair of parallel sides.
Consecutive interior angles on the same side of a transversal between parallel sides are supplementary (add up to $180^\circ$ ).
In an isosceles trapezium, the non-parallel sides are equal in length, and the base angles along each parallel side are equal.

(i) Find the remaining angles in the first trapezium.

Step 1 · Calculate Angles A and B

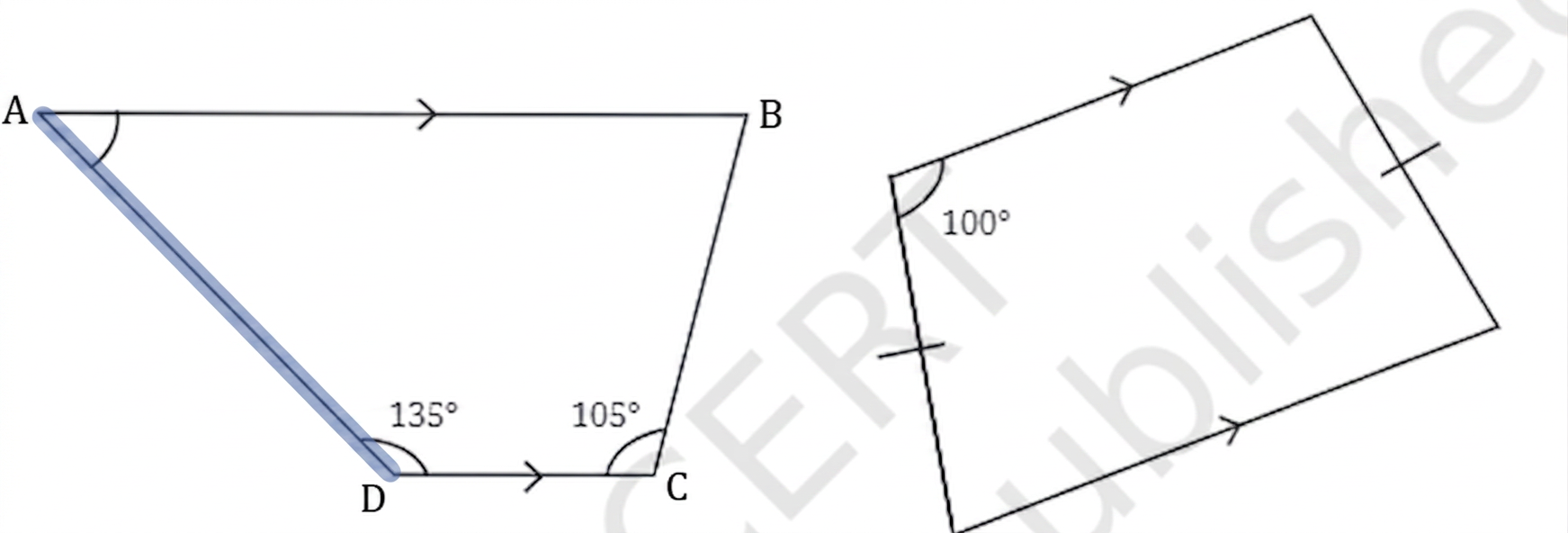

Let the bottom-left angle be $D = 135^\circ$ , bottom-right angle be $C = 105^\circ$ , top-left angle be $A$ , and top-right angle be $B$ . Diagram 1

Since the top and bottom sides are parallel, consecutive interior angles are supplementary:

\begin{aligned} A + D &= 180^\circ \\ A + 135^\circ &= 180^\circ \\ A &= 180^\circ - 135^\circ \\ A &= 45^\circ \end{aligned}

Similarly, for angles $B$ and $C$ :

\begin{aligned} B + C &= 180^\circ \\ B + 105^\circ &= 180^\circ \\ B &= 180^\circ - 105^\circ \\ B &= 75^\circ \end{aligned}

Answer

(i) $45^\circ$ and $75^\circ$

(ii) Find the remaining angles in the second trapezium.

Step 1 · Calculate Angles in the Isosceles Trapezium

Let the bottom-left angle be $D = 100^\circ$ , bottom-right angle be $C$ , top-left angle be $A$ , and top-right angle be $B$ . Diagram 2

Since the non-parallel sides are marked equal, the trapezium is isosceles. Therefore, base angles are equal:

\begin{aligned} C &= D \\ &= 100^\circ \end{aligned}

Using consecutive interior angles for the parallel sides:

\begin{aligned} A + D &= 180^\circ \\ A + 100^\circ &= 180^\circ \\ A &= 180^\circ - 100^\circ \\ A &= 80^\circ \end{aligned}

Similarly:

\begin{aligned} B + C &= 180^\circ \\ B + 100^\circ &= 180^\circ \\ B &= 180^\circ - 100^\circ \\ B &= 80^\circ \end{aligned}

Answer

(ii) $80^\circ$ , $80^\circ$ , and $100^\circ$

Common Mistakes

Opposite vs. Adjacent Angles: Confusing consecutive interior angles (which add up to $180^\circ$ ) with opposite angles (which generally do not add up to $180^\circ$ unless the quadrilateral is cyclic).
Assuming Isosceles Properties for All Trapeziums: Applying base angle equality ( $C = D$ ) to general trapeziums where the non-parallel sides are not equal.
