Question 8

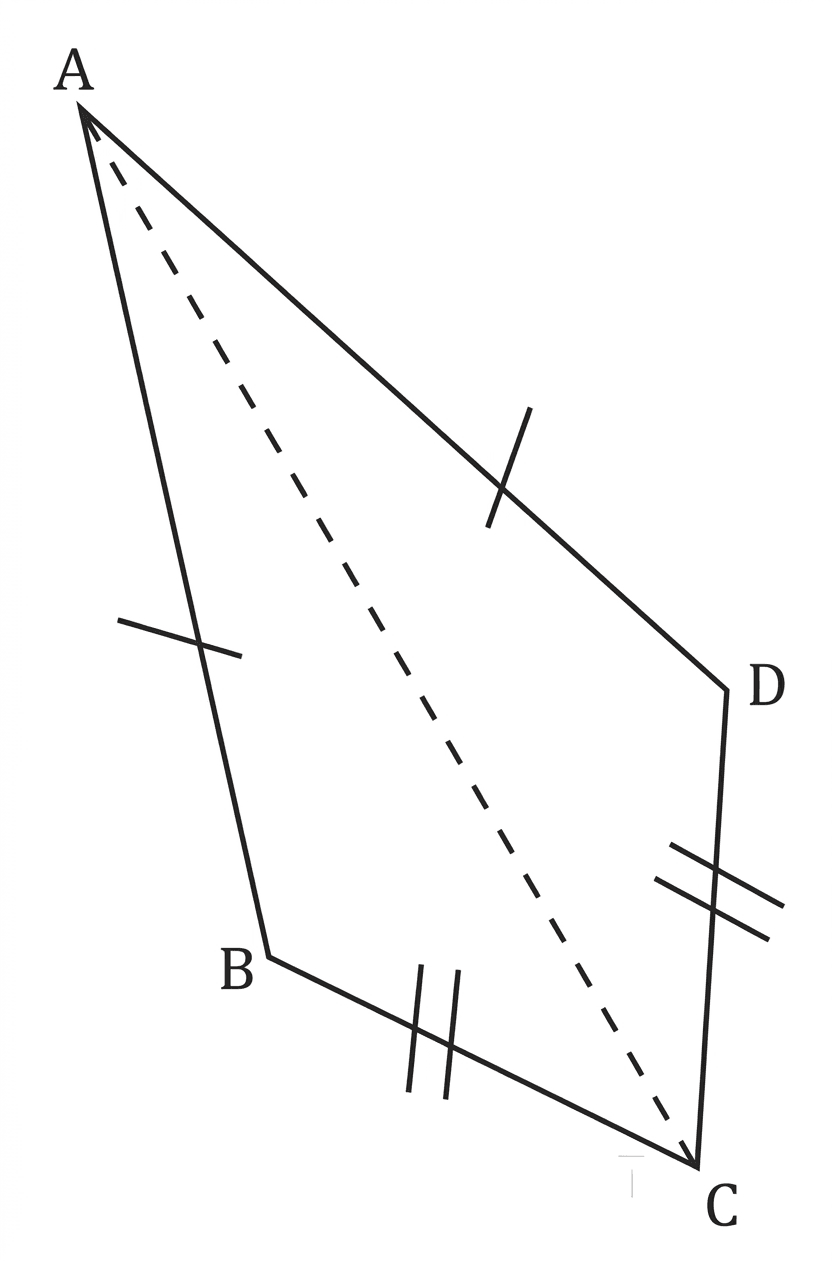

In the figure below, $AB = AD$ , $CB = CD$ .

Can you identify any pair of congruent triangles? If yes, explain why they are congruent.

Does $AC$ divide $\angle BAD$ and $\angle BCD$ into two equal parts? Give reasons.

Solution

Understand the Question

We are given a quadrilateral $ABCD$ where $AB = AD$ and $CB = CD$ , with diagonal $AC$ dividing it into two triangles: $\Delta ABC$ and $\Delta ADC$ .
To check for congruence, compare the three pairs of corresponding sides of both triangles.
Once congruence is proven using the SSS criterion, use CPCT (Corresponding Parts of Congruent Triangles) to determine whether $AC$ bisects $\angle BAD$ and $\angle BCD$ .

(i) Can you identify any pair of congruent triangles? If yes, explain why they are congruent.

Step 1 · Prove Triangle Congruence using SSS Criterion

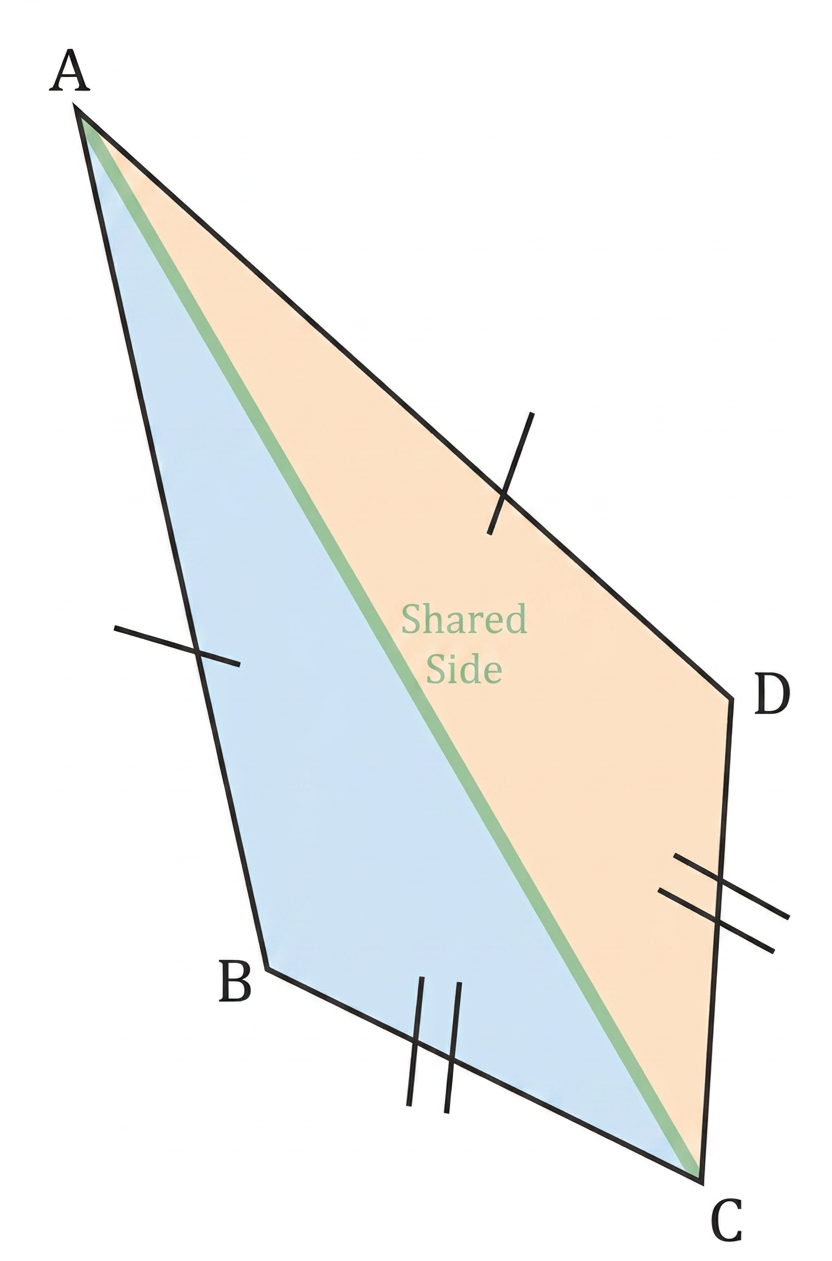

Diagram 1

In $\Delta ABC$ and $\Delta ADC$ :

\begin{aligned} AB &= AD \quad (\text{Given}) \\ CB &= CD \quad (\text{Given}) \\ AC &= AC \quad (\text{Common side}) \end{aligned}

By SSS (Side-Side-Side) congruence criterion: $\Delta ABC \cong \Delta ADC$

Answer

(i) Yes, $\Delta ABC \cong \Delta ADC$ by the SSS congruence criterion.

(ii) Does $AC$ divide $\angle BAD$ and $\angle BCD$ into two equal parts? Give reasons.

Step 1 · Check Angle Bisection using CPCT

Since $\Delta ABC \cong \Delta ADC$ , their corresponding angles are equal by $\text{CPCT}$ (Corresponding Parts of Congruent Triangles):

\begin{aligned} \angle BAC &= \angle DAC \\[0.6em] \angle BCA &= \angle DCA \end{aligned}

Therefore, $AC$ divides both $\angle BAD$ and $\angle BCD$ into two equal parts.

Answer

(ii) Yes, $AC$ divides $\angle BAD$ and $\angle BCD$ into two equal parts because $\angle BAC = \angle DAC$ and $\angle BCA = \angle DCA$ (by $\text{CPCT}$ ).

Common Mistakes

Missing the Common Side: Forgetting to mention that $AC = AC$ is the shared common side needed to complete the three side pairs for the SSS criterion.
Incorrect Vertex Correspondence: Writing the congruence statement incorrectly as $\Delta ABC \cong \Delta CDA$ instead of $\Delta ABC \cong \Delta ADC$ , since vertex $B$ corresponds to $D$ .
Omitting the CPCT Reason: Stating that the angles are equal without citing $\text{CPCT}$ following the congruence proof.
