Question 17

In a circle with centre $O$ , chords $AB$ and $AC$ are congruent. Explain why this statement is true: "The centre of the circle lies on the angle bisector of $\angle BAC$ ".

Solution

Understand the Question

Let each circle have a radius $r$ , which means the diameter of each circle is $2r$ .
The height of the rectangle is equal to the diameter of one circle, and the length is equal to the sum of the diameters of all circles placed side by side.
To find the fraction of the rectangle covered by the circles, calculate the ratio: $\text{Fraction} = \dfrac{\text{Total Area of Circles}}{\text{Area of Rectangle}}$

(i) Fig. 6.45: What fraction of the rectangle is covered by the circles?

Step 1 · Find Dimensions and Areas for Fig. 6.45

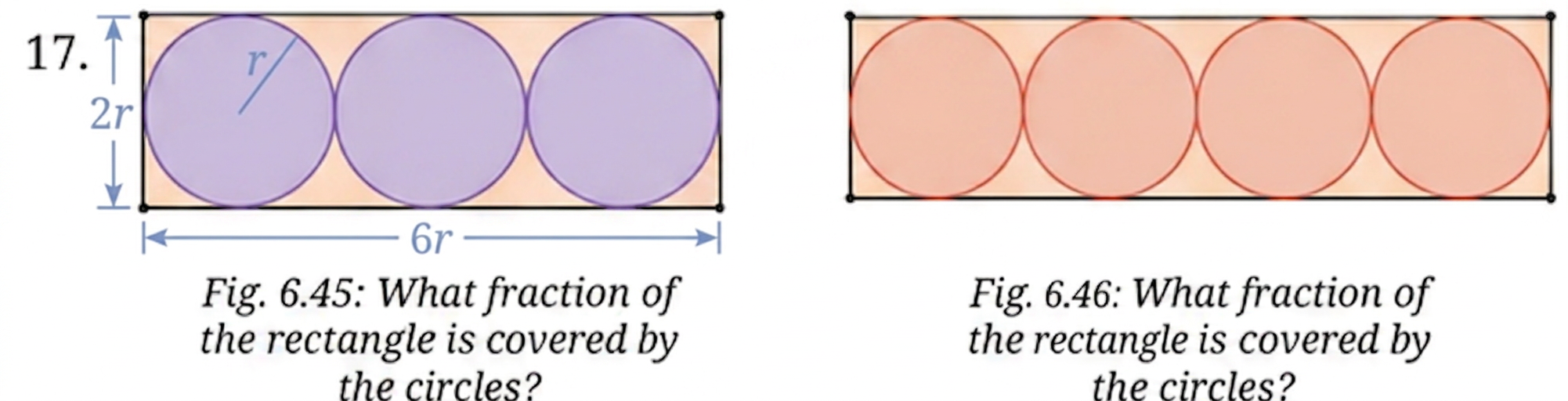

Let the radius of each circle be $r$ . Then the diameter of each circle is $2r$ . Diagram 1

Dimensions of the rectangle: $\text{Height} = 2r$ $\text{Length} = 3 \times (2r) = 6r$

Calculate the areas: $\text{Area of 3 circles} = 3 \times \pi r^2 = 3\pi r^2$ $\text{Area of rectangle} = (6r) \times (2r) = 12r^2$

Calculate the fraction covered:

\begin{aligned} \text{Fraction} &= \dfrac{\text{Area of circles}}{\text{Area of rectangle}} \\[0.6em] &= \dfrac{3\pi r^2}{12r^2} \\[0.6em] &= \dfrac{3\pi}{12} \\[0.6em] &= \dfrac{\pi}{4} \end{aligned}

Answer

(i) $\dfrac{\pi}{4}$

(ii) Fig. 6.46: What fraction of the rectangle is covered by the circles?

Step 1 · Find Dimensions and Areas for Fig. 6.46

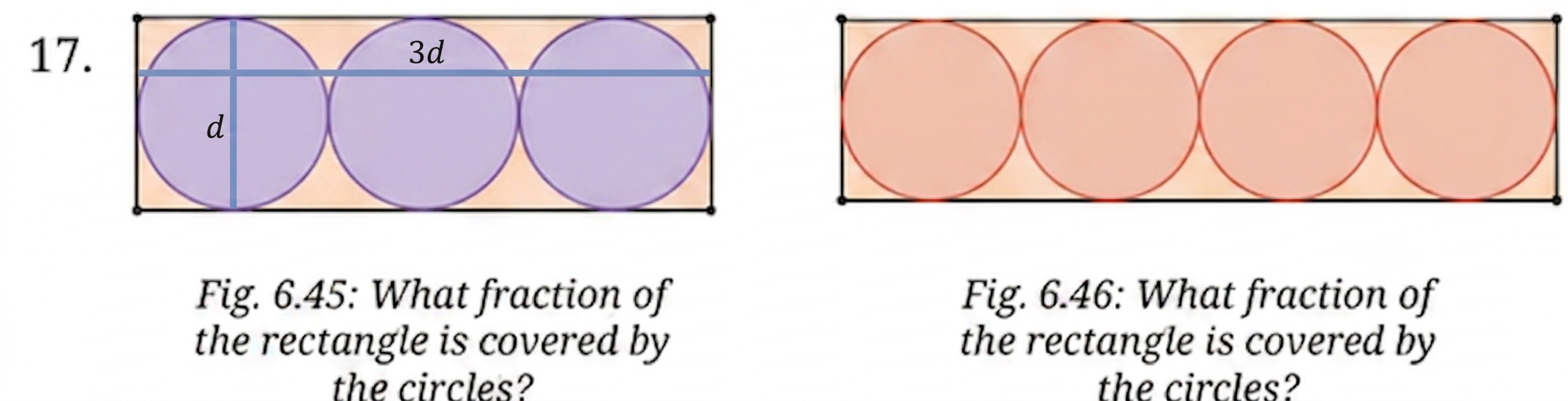

Let the radius of each circle be $r$ . Then the diameter of each circle is $2r$ . Diagram 2

Dimensions of the rectangle: $\text{Height} = 2r$ $\text{Length} = 4 \times (2r) = 8r$

Calculate the areas: $\text{Area of 4 circles} = 4 \times \pi r^2 = 4\pi r^2$ $\text{Area of rectangle} = (8r) \times (2r) = 16r^2$

Calculate the fraction covered:

\begin{aligned} \text{Fraction} &= \dfrac{\text{Area of circles}}{\text{Area of rectangle}} \\[0.6em] &= \dfrac{4\pi r^2}{16r^2} \\[0.6em] &= \dfrac{4\pi}{16} \\[0.6em] &= \dfrac{\pi}{4} \end{aligned}

Answer

(ii) $\dfrac{\pi}{4}$

Common Mistakes

Using Radius Instead of Diameter: Taking the height as $r$ instead of the diameter $2r$ , leading to an incorrect rectangle area.
Omitting the Number of Circles: Forgetting to multiply the single circle area $\pi r^2$ by the total number of circles ( $3$ or $4$ ).
General Invariance: Notice that for any number $n$ of identical circles packed in a single row inside a fitting rectangle, the fraction covered is always $\dfrac{n \pi r^2}{(n \cdot 2r)(2r)} = \dfrac{\pi}{4}$ .
