Question 19

A regular hexagon is inscribed in a circle of radius $r$ . Find the length of the sides of the hexagon and the distance of each side from the centre of the circle.

Solution

Understand the Question

A large rectangle with an area of $72 \text{ cm}^2$ is formed by fitting $9$ identical small rectangles together.
Let the length of each small rectangle be $l$ and the width be $w$ .
The top row consists of $4$ rectangles arranged horizontally (length along the width of the large rectangle), giving a width of $4l$ and height $w$ .
The bottom row consists of $5$ rectangles arranged vertically (width along the width of the large rectangle), giving a width of $5w$ and height $l$ .
Since both rows form the same large rectangle, their total widths are equal: $4l = 5w$ .
We use the given area to find $l$ and $w$ , and then calculate the perimeter of one small rectangle using $P = 2(l + w)$ .

Step 1 · Define dimensions and relate length and width

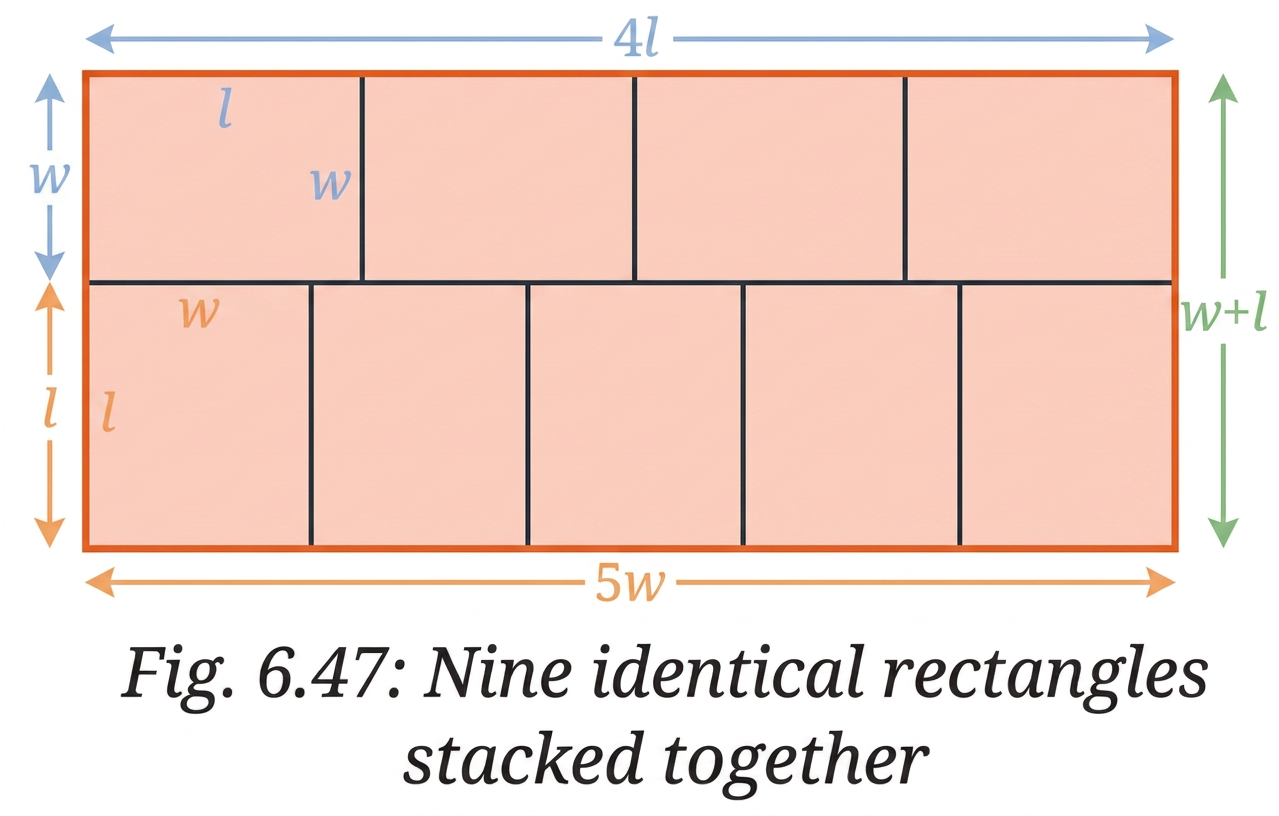

Let the length of each small rectangle be $l$ and the width be $w$ . Diagram 1

Equating the total width of the top row and bottom row $4l = 5w$

$w = \dfrac{4}{5}l$

Step 2 · Set up area equation and solve for dimensions

The dimensions of the large rectangle are:

$\text{Total width} = 4l$
$\text{Total height} = w + l$

Given that the area of the large rectangle is $72 \text{ cm}^2$

\begin{aligned} \text{Area} &= \text{Total width} \times \text{Total height} \\ 72 &= 4l(w + l) \end{aligned}

Substitute $w = \dfrac{4}{5}l$

\begin{aligned} 72 &= 4l\left(\dfrac{4}{5}l + l\right) \\[0.6em] &= 4l\left(\dfrac{4l + 5l}{5}\right) \\[0.6em] &= 4l\left(\dfrac{9l}{5}\right) \\[0.6em] 72 &= \dfrac{36l^2}{5} \end{aligned}

Solve for $l$

\begin{aligned} 36l^2 &= 72 \times 5 \\[0.6em] 36l^2 &= 360 \\[0.6em] l^2 &= \dfrac{360}{36} = 10 \\[0.6em] l &= \sqrt{10} \text{ cm} \end{aligned}

Now find width $w$ $w = \dfrac{4}{5}l = \dfrac{4}{5}\sqrt{10} \text{ cm}$

Step 3 · Calculate perimeter of each small rectangle

Perimeter of one small rectangle is $P = 2(l + w)$

\begin{aligned} P &= 2\left(\sqrt{10} + \dfrac{4}{5}\sqrt{10}\right) \\[0.6em] &= 2\left(\dfrac{5\sqrt{10} + 4\sqrt{10}}{5}\right) \\[0.6em] &= 2\left(\dfrac{9\sqrt{10}}{5}\right) \\[0.6em] &= \dfrac{18\sqrt{10}}{5} \text{ cm} \end{aligned}

Answer

$\dfrac{18\sqrt{10}}{5} \text{ cm}$

Common Mistakes

Equating the Wrong Sides: Incorrectly setting $5l = 4w$ instead of $4l = 5w$ by mixing up the orientations of the top and bottom rows.
Individual Area Shortcut: You can also find the area of one small rectangle directly as $\dfrac{72}{9} = 8 \text{ cm}^2$ , so $l \times w = 8$ . Substituting $w = \dfrac{4}{5}l$ gives $l \times \dfrac{4}{5}l = 8 \implies l^2 = 10$ , which is a faster alternative method.
Perimeter vs. Semi-perimeter: Forgetting to multiply by $2$ in the perimeter formula $P = 2(l + w)$ .
