Circles | Exercise 10.2

Question 7

Two concentric circles are of radii 5 cm and 3 cm. Find the length of the chord of the larger circle which touches the smaller circle.

Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

Concentric Circles: Two or more circles that share the same centre but have different radii. Here, both circles are centred at O with radii 3 cm and 5 cm.

Chord: A line segment whose both endpoints lie on a circle. Here, PQ is a chord of the larger circle that also touches the smaller circle.

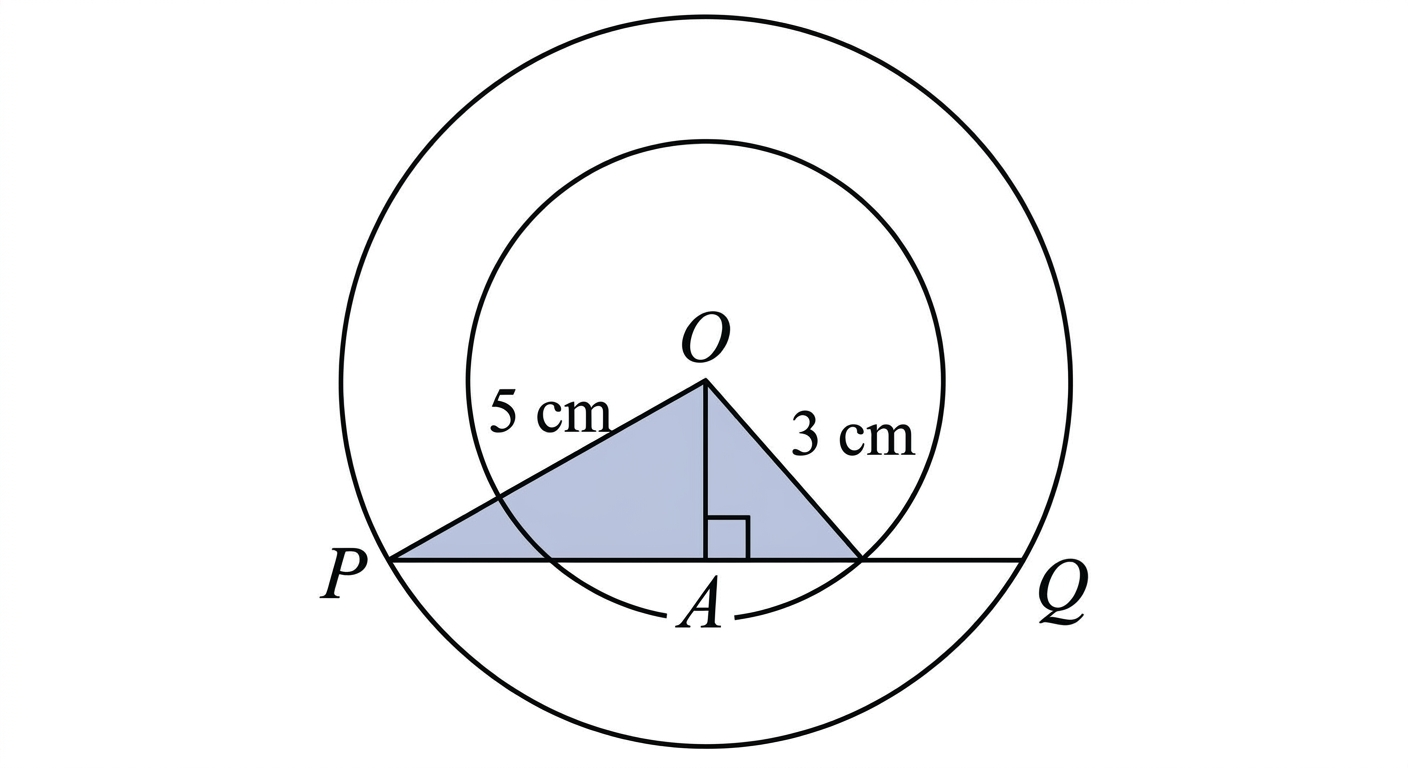

Step 1 — Set up the geometric representation

Let OO be the common center of the two concentric circles. Let PQPQ be the chord of the larger circle that touches the smaller circle at point AA. Therefore, PQPQ is a tangent to the smaller circle at AA. The radius of the smaller circle is OA=3 cmOA = 3\text{ cm}. The radius of the larger circle is OP=5 cmOP = 5\text{ cm}. Tangent-Radius Perpendicularity Theorem: The radius to the point of tangency is always perpendicular to the tangent. So OA ⊥ PQ.

Since the tangent is perpendicular to the radius at the point of contact: OA⊥PQOA \perp PQ Thus, ∠OAP=90∘\angle OAP = 90^\circ. Therefore, △OAP\triangle OAP is a right-angled triangle.

Diagram 1

Step 2 — Calculate the length of APAP

Pythagoras Theorem: In a right-angled triangle, hypotenuse² = sum of squares of the other two sides. Here OP is the hypotenuse.

Apply the Pythagoras theorem in the right-angled triangle OAPOAP: OA2+AP2=OP2OA^2 + AP^2 = OP^2

Substitute the values of OAOA and OPOP: 32+AP2=523^2 + AP^2 = 5^2

Calculate the squares: 9+AP2=259 + AP^2 = 25

Subtract 99 from both sides: AP2=25−9AP^2 = 25 - 9

AP2=16AP^2 = 16

Take the square root: AP=16AP = \sqrt{16}

AP=4 cmAP = 4\text{ cm}

Step 3 — Find the total length of the chord PQPQ

Perpendicular Bisector Theorem (Chord): The perpendicular drawn from the centre of a circle to any chord always bisects that chord — it divides it into two equal halves.

The perpendicular from the center of a circle to a chord bisects the chord. Since OA⊥PQOA \perp PQ, AA is the midpoint of PQPQ. Therefore, the length of the chord is twice of APAP: PQ=2×APPQ = 2 \times AP

Substitute the value of APAP: PQ=2×4 cmPQ = 2 \times 4\text{ cm}

PQ=8 cmPQ = 8\text{ cm}

Answer

The length of the chord of the larger circle is 8 cm.
