Circles | Exercise 10.2

Question 10

Prove that the angle between the two tangents drawn from an external point to a circle is supplementary to the angle subtended by the line-segment joining the points of contact at the centre.

Solution

Understand the Question

Supplementary angles add up to $180^\circ$ . We need to prove that $\angle \text{APB} + \angle \text{BOA} = 180^\circ$ .
The radius drawn to the point of contact is perpendicular to the tangent, giving two right angles: $\angle \text{OAP} = 90^\circ$ and $\angle \text{OBP} = 90^\circ$ .
In the four-sided figure (quadrilateral) $\text{OAPB}$ , the sum of all interior angles is $360^\circ$ .

Step 1 · Identify Perpendicular Radii

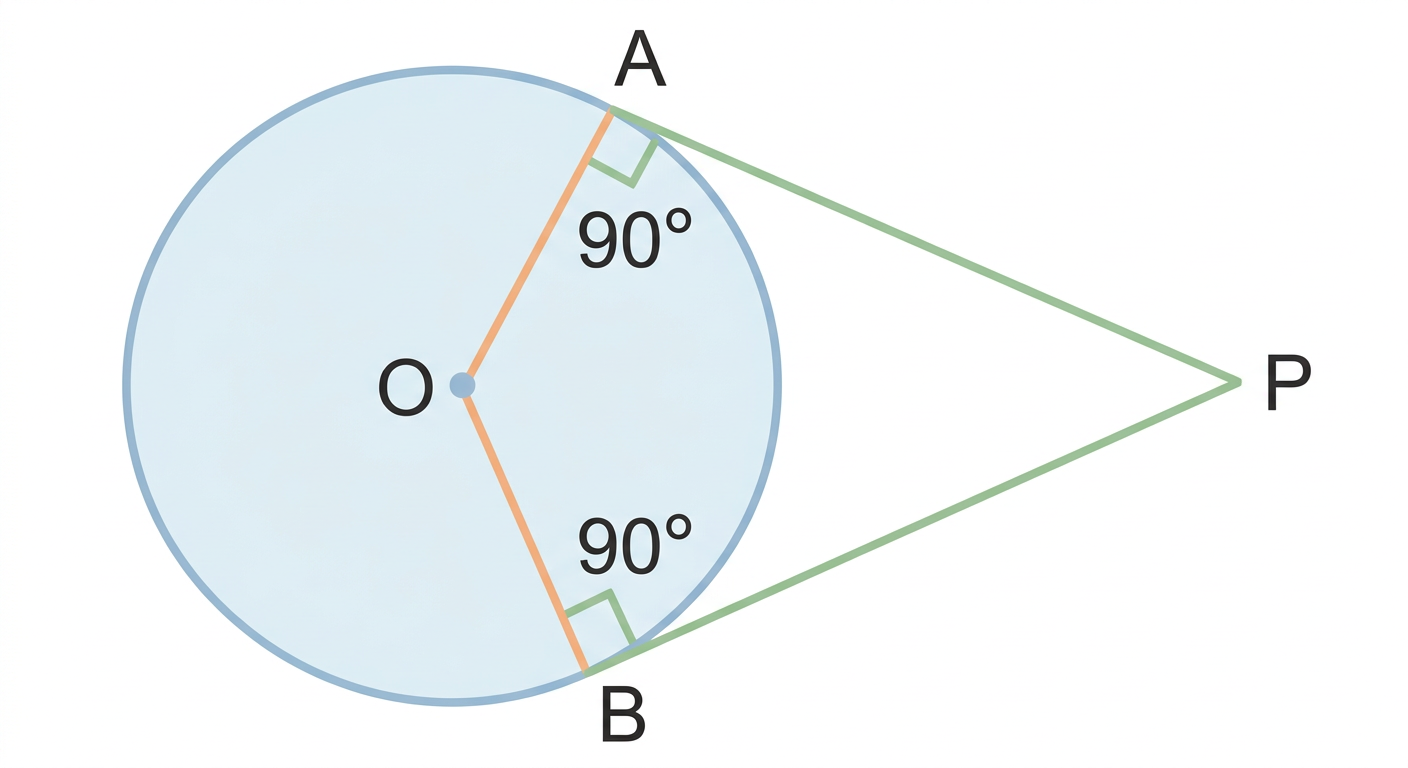

Let $O$ be the centre of the circle, $P$ be an external point, and $PA, PB$ be the two tangents touching the circle at points $A$ and $B$ . Diagram 1

Since the radius at the point of contact is perpendicular to the tangent:

\angle \text{OAP} = 90^\circ, \quad \angle \text{OBP} = 90^\circ

Step 2 · Apply Angle Sum Property of Quadrilateral

In quadrilateral $\text{OAPB}$ , the sum of all interior angles is $360^\circ$ :

\angle \text{OAP} + \angle \text{APB} + \angle \text{OBP} + \angle \text{BOA} = 360^\circ

Substitute $\angle \text{OAP} = 90^\circ$ and $\angle \text{OBP} = 90^\circ$ :

\begin{aligned} 90^\circ + \angle \text{APB} + 90^\circ + \angle \text{BOA} &= 360^\circ \\ 180^\circ + \angle \text{APB} + \angle \text{BOA} &= 360^\circ \\ \angle \text{APB} + \angle \text{BOA} &= 360^\circ - 180^\circ \\ \angle \text{APB} + \angle \text{BOA} &= 180^\circ \end{aligned}

Answer

$\angle \text{APB} + \angle \text{BOA} = 180^\circ$ (Hence proved, the angles are supplementary)

Common Mistakes

Supplementary vs. Complementary: Confusing supplementary angles (sum $= 180^\circ$ ) with complementary angles (sum $= 90^\circ$ ).
Tangent-Radius Theorem: Forgetting that a tangent is strictly perpendicular to the radius at the point of contact ( $\angle \text{OAP} = \angle \text{OBP} = 90^\circ$ ).
