Circles | Exercise 10.2

Question 4

Prove that the tangents drawn at the ends of a diameter of a circle are parallel.

Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

Diameter: A chord passing through the centre of a circle. Its two endpoints lie on opposite ends of the circle, and it is the longest chord.

A radius is always perpendicular to the tangent at the point of contact.

Step 1 — Draw the setup

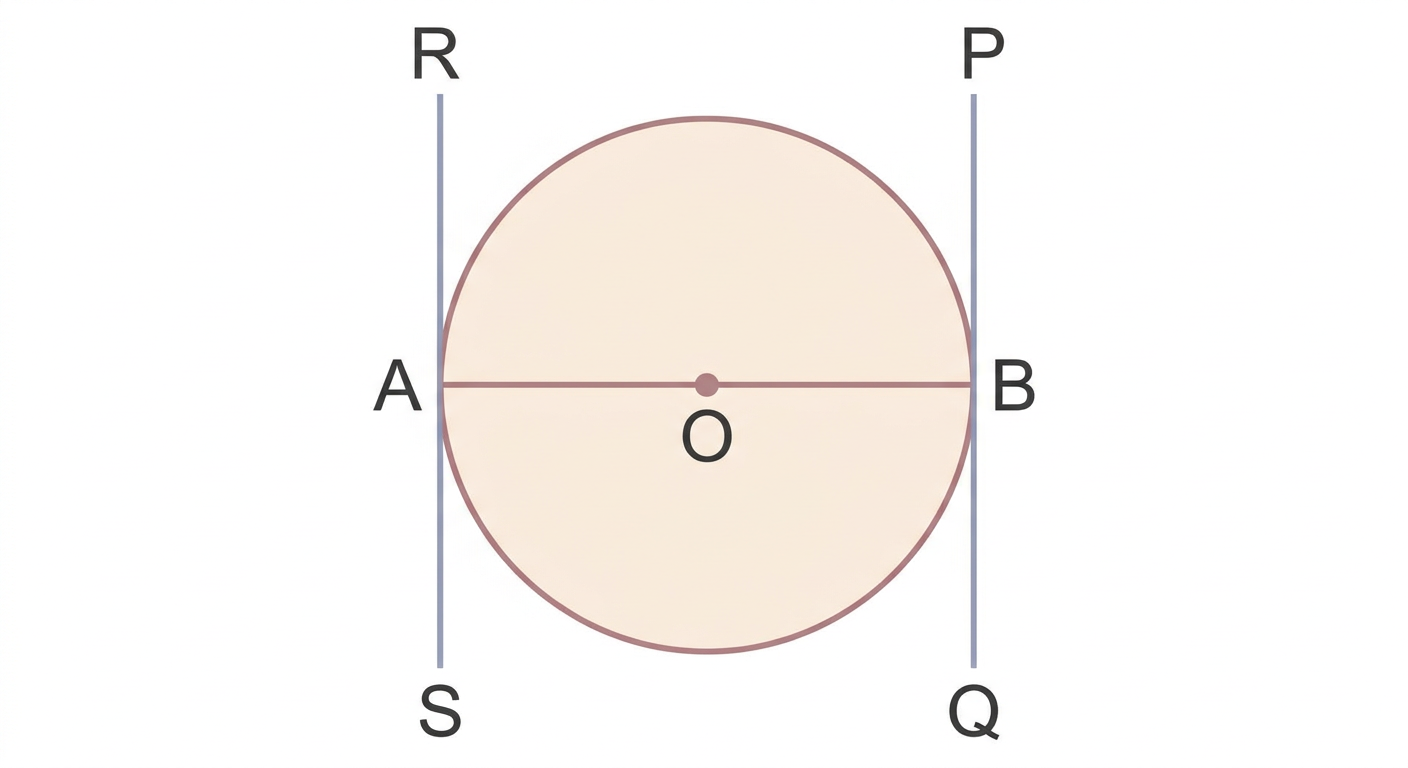

Let's draw a circle. Let its center be O. Let AB be a diameter of this circle. Let RS be the tangent line at point A. Let PQ be the tangent line at point B.

Diagram 1

Step 2 — Apply tangent-radius property

Tangent-Radius Perpendicularity Theorem: The radius drawn to the point of tangency is always perpendicular to the tangent at that point.

We know the radius is perpendicular to the tangent. Radius OA touches tangent RS at point A. So, OA is perpendicular to RS. This means the angle ∠OAR\angle OAR is 90 degrees. ∠OAR=90∘\angle OAR = 90^\circ Similarly, radius OB touches tangent PQ at point B. So, OB is perpendicular to PQ. This means the angle ∠OBQ\angle OBQ is 90 degrees. ∠OBQ=90∘\angle OBQ = 90^\circ

Both angles are 90∘\boxed{\text{Both angles are } 90^\circ}

Step 3 — Identify parallel lines

Let's consider lines RS and PQ. Let AB be the transversal line. From Step 2, we found ∠OAR=90∘\angle OAR = 90^\circ. We also found ∠OBQ=90∘\angle OBQ = 90^\circ. So, these two angles are equal. ∠OAR=∠OBQ\angle OAR = \angle OBQ Alternate Interior Angles: When a transversal crosses two lines, the angles formed on opposite sides of the transversal between the two lines are called alternate interior angles. If these angles are equal, the two lines are parallel.

These angles are alternate interior angles. When alternate interior angles are equal, the lines are parallel. Therefore, line RS is parallel to line PQ.

Answer

(i) The tangents drawn at the ends of a diameter of a circle are parallel.
