Question 9

Will $ABCD$ remain a rectangle if the angles between the diagonals are changed? Can we generalise this?

Take one of the angles between the diagonals as $x$ .

Solution

Understand the Question

A quadrilateral whose diagonals are equal in length and bisect each other is always a rectangle.
If the angle $x$ between the diagonals is changed while keeping the diagonals equal and mutually bisecting, the side lengths change, but the interior angles remain $90^\circ$ .
If the angle between the diagonals becomes $90^\circ$ , all four sides become equal, making it a square (which is a special rectangle).

Step 1 · Identify the Quadrilateral

From the figure, the diagonals $AC$ and $BD$ intersect at point $O$ such that $AO = BO = CO = DO$ .

Since $AO = OC$ and $BO = OD$ , the diagonals bisect each other.
Since $AC = AO + OC$ and $BD = BO + OD$ , the diagonals are equal ( $AC = BD$ ).

A quadrilateral with equal diagonals that bisect each other is a rectangle. $\text{ABCD is a rectangle because its diagonals are equal and bisect each other.}$ $\text{All angles of a rectangle are } 90^\circ.$

Step 2 · Properties of the Rectangle

Since $ABCD$ is a rectangle, its opposite sides are equal in length: $AB = CD \quad \text{and} \quad AD = BC$

$\text{As ABCD is a rectangle, its opposite sides must be equal.}$

Step 3 · Effect of Changing the Diagonal Angle

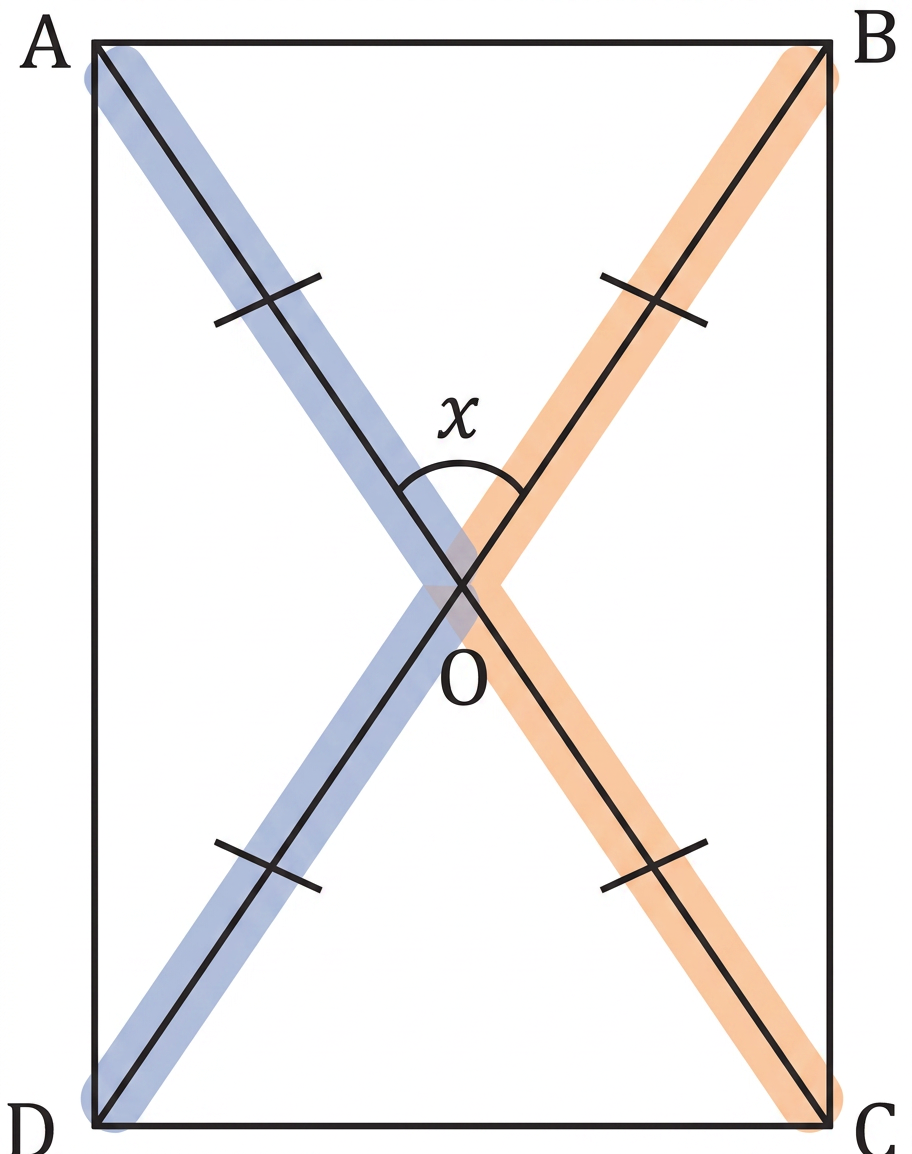

Diagram 1

Let $x$ be the angle between the diagonals at intersection $O$ .

As long as the diagonals remain equal in length and continue to bisect each other, changing the angle $x$ changes the dimensions (side lengths) of $ABCD$ , but the four interior angles remain $90^\circ$ . Hence, $ABCD$ remains a rectangle.
When $x = 90^\circ$ , the diagonals intersect at right angles, making all four sides equal. Thus, the rectangle becomes a square.

$\text{The figure remains a rectangle as long as diagonals are equal and bisect each other.}$ $\text{If the angle between diagonals becomes } 90^\circ, \text{ it becomes a square.}$

Answer

Yes, $ABCD$ remains a rectangle as long as the diagonals are equal and bisect each other. In general, changing the angle $x$ alters the side lengths, and when $x = 90^\circ$ , it becomes a square.

Common Mistakes

Assuming non-rectangles are formed: Believing changing the angle destroys the $90^\circ$ corner angles. As long as diagonals are equal and bisect each other, the figure is guaranteed to be a rectangle.
Square vs. Rectangle: Overlooking that a square is a special type of rectangle where diagonals intersect at $90^\circ$ .
