Question 40

Do the diagonals of a rhombus intersect at any particular angle? Reason out and/or experiment to figure this out!

Solution

The diagonals of a rhombus always meet at a right angle.

Step 1 — Properties of a Rhombus

Let us consider a rhombus ABCD. A rhombus is a quadrilateral. All its four sides are equal in length. So, $AB = BC = CD = DA$ . A rhombus is also a type of parallelogram. Its diagonals bisect each other. Let diagonals AC and BD intersect at point O. So, $AO = OC$ and $BO = OD$ .

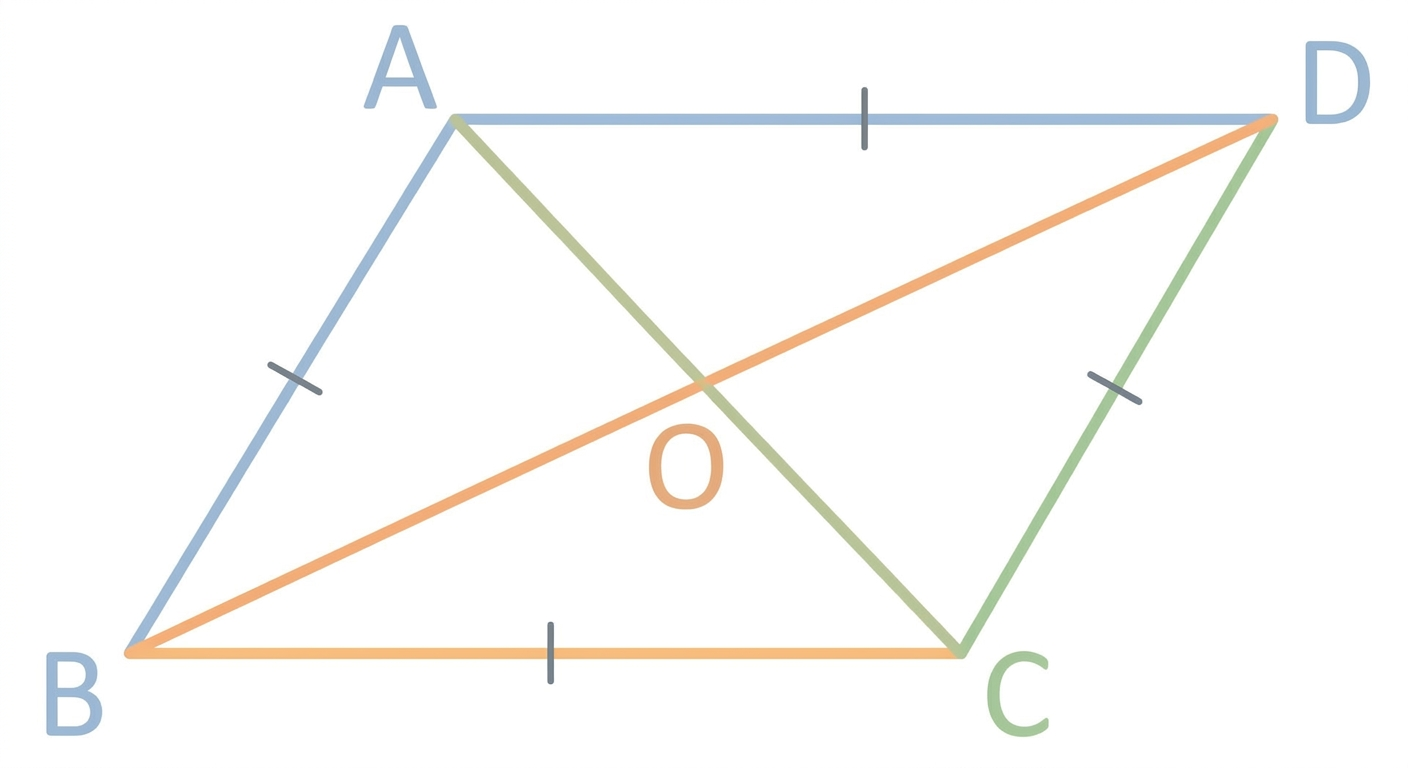

Diagram 1

Step 2 — Using Congruent Triangles

Let us look at two triangles: $\triangle AOB$ and $\triangle COB$ . We know $AB = BC$ . (These are sides of the rhombus). We know $AO = OC$ . (The diagonals bisect each other). The side BO is common to both triangles. So, $BO = BO$ . These three sides are equal. This means $\triangle AOB$ is congruent to $\triangle COB$ . (Congruent means identical in shape and size). We use the SSS (Side-Side-Side) congruence rule. Since the triangles are congruent, their corresponding angles are equal. So, $\angle AOB = \angle COB$ .

Step 3 — Finding the Angle

Angles $\angle AOB$ and $\angle COB$ are adjacent angles. They form a linear pair on the straight line AC. A linear pair means they add up to 180 degrees. So, we can write the equation: $\angle AOB + \angle COB = 180^\circ$ From Step 2, we know $\angle AOB = \angle COB$ . Let us substitute $\angle AOB$ for $\angle COB$ : $\angle AOB + \angle AOB = 180^\circ$ $2 \times \angle AOB = 180^\circ$ $\angle AOB = \frac{180^\circ}{2}$

$\boxed{\angle AOB = 90^\circ}$ This means the diagonals intersect at a right angle.

Answer

The diagonals of a rhombus intersect at a right angle (90 degrees).
